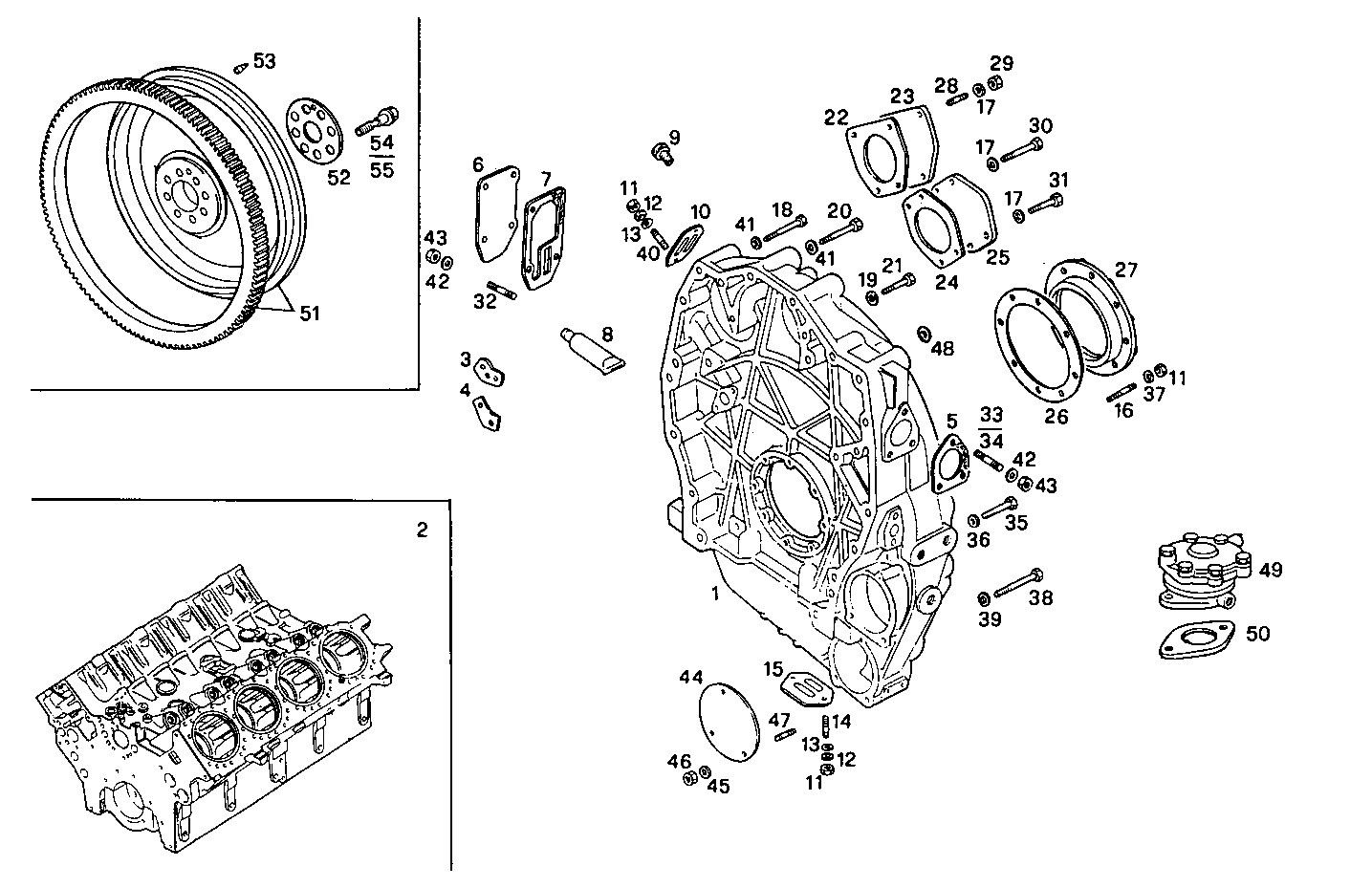

| Item |
Part number |
Description |
|
1 |
4936388 |
FLYWHEEL HOUSING |
|
2 |
8021360 |
CRANKCASE |
|
3 |
4831139 |
PLATE LEFT |
|
4 |
4831138 |
PLATE RIGHT |
|
5 |
4863490 |
FLAT ENGINE GASKET |
|
6 |
4801982 |
COVER |
|
7 |
4863495 |
FLAT ENGINE GASKET |
|
8 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
9 |
4931603 |
PIPE SOCKET |
|
10 |
4695921 |
COVER |
|
11 |
17037931 |
HEXAGON NUT M8X1,25 |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
17094914 |
WASHER 8x16 |
|
14 |
13516521 |
STUD M8X12 MM |
|
15 |
4706083 |
COVER |
|
16 |
16746524 |
STUD M8X16X16 |
|
17 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
18 |
15972521 |
HEXAGON BOLT M10X135 MM |
|
19 |
17095314 |
WASHER Ø12X24 MM [up to ...] |
|
20 |
15972721 |
HEXAGON BOLT M10X145 MM |
|
21 |
15541630 |
HEXAGON BOLT M12X100 MM |
|
22 |
4863515 |
FLAT ENGINE GASKET |
|
23 |
4659673 |
COVER |
|
24 |
4863534 |
GASKET |
|
25 |
4729849 |
COVER |
|
26 |
4863494 |
FLAT ENGINE GASKET |
|
27 |
4819209 |
SUPPORT |
|
28 |
13546621 |
STUD M10X1,25X20X35 MM |
|
29 |
17038221 |
HEXAGON NUT M10 |
|
30 |
15970021 |
HEXAGON BOLT M10X1,25X155 MM |
|
31 |
15972321 |
HEXAGON BOLT M10X125 MM |
|
32 |
16729324 |
STUD M8X12X20 MM |
|
33 |
16730324 |
STUD M8X70 MM |
|
34 |
16729524 |
STUD M8X1,25X30 |
|
35 |
15543021 |
HEXAGON BOLT M12X105 MM |
|
36 |
12646921 |
WASHER Ø12X28 MM |
|
37 |
17094911 |
WASHER Ø8X16X1,6 MM |
|
38 |
15978030 |
HEXAGON BOLT M14X105 MM |
|
39 |
4604279 |
SPRING WASHER Ø14X32 MM SP=4 MM |
|
40 |
13543021 |
STUD M8X16X14 |
|
41 |
17090574 |
WASHER Ø10X27 MM SP=2,8 |
|
44 |
4721732 |
COVER |
|
45 |
17091974 |
SPRING WASHER Ø14X32 MM SP=3,4 MM |
|
46 |
17038821 |
HEXAGON NUT M14 |
|
47 |
11797421 |
STUD M14X20X35 |
|
48 |
17277681 |
O-RING Ø5,2 MM SP=1,7 MM |
|
49 |
4856636 |
BREATHER ASSY |
|
51 |
98452375 |
FLYWHEEL ASSY |
|
52 |
4688312 |
STOP WASHER |
|
53 |
14170470 |
DOWEL PIN Ø8,5 MM |
|
54 |
4818509 |
HEXAGON BOLT |
|
55 |
4802719 |
HEXAGON BOLT |
