8281SRi27.00

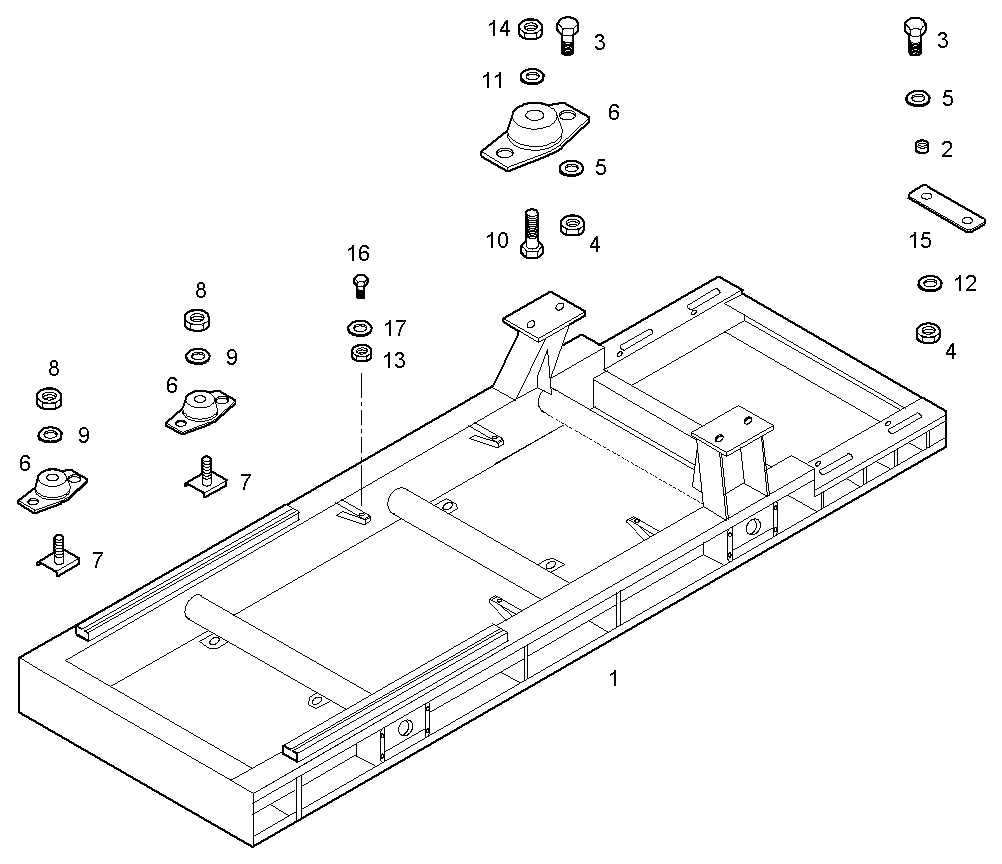

A36810001 SUBBASE FOR GENERATOR UNIT

Iveco/FPT SUBBASE FOR GENERATOR UNIT

Item Part number Description
1 8029445 SUBBSAE-SUPPORT FRAME
2 8019415 SPACING BAR
3 16614724 SCREW M16X45
4 17038921 NUT M16X2
5 17092374 SPRING WASHER Ø16X34X3,6 MM
6 4955094 RUBBER PAD
7 8015168 SCREW
8 17038721 NUT M14X2 [from ...]
9 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
10 16620124 SCREW M24X3X80
11 17093174 WASHER Ø24X46X5,4 MM
12 17095704 WASHER Ø16X30 MM
13 17037921 HEXAGON NUT M8X1,25
14 17039721 HEXAGON NUT M24
15 8010041 SPACING BAR SP=7 MM
16 16605524 HEXAGON BOLT M8X20 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
