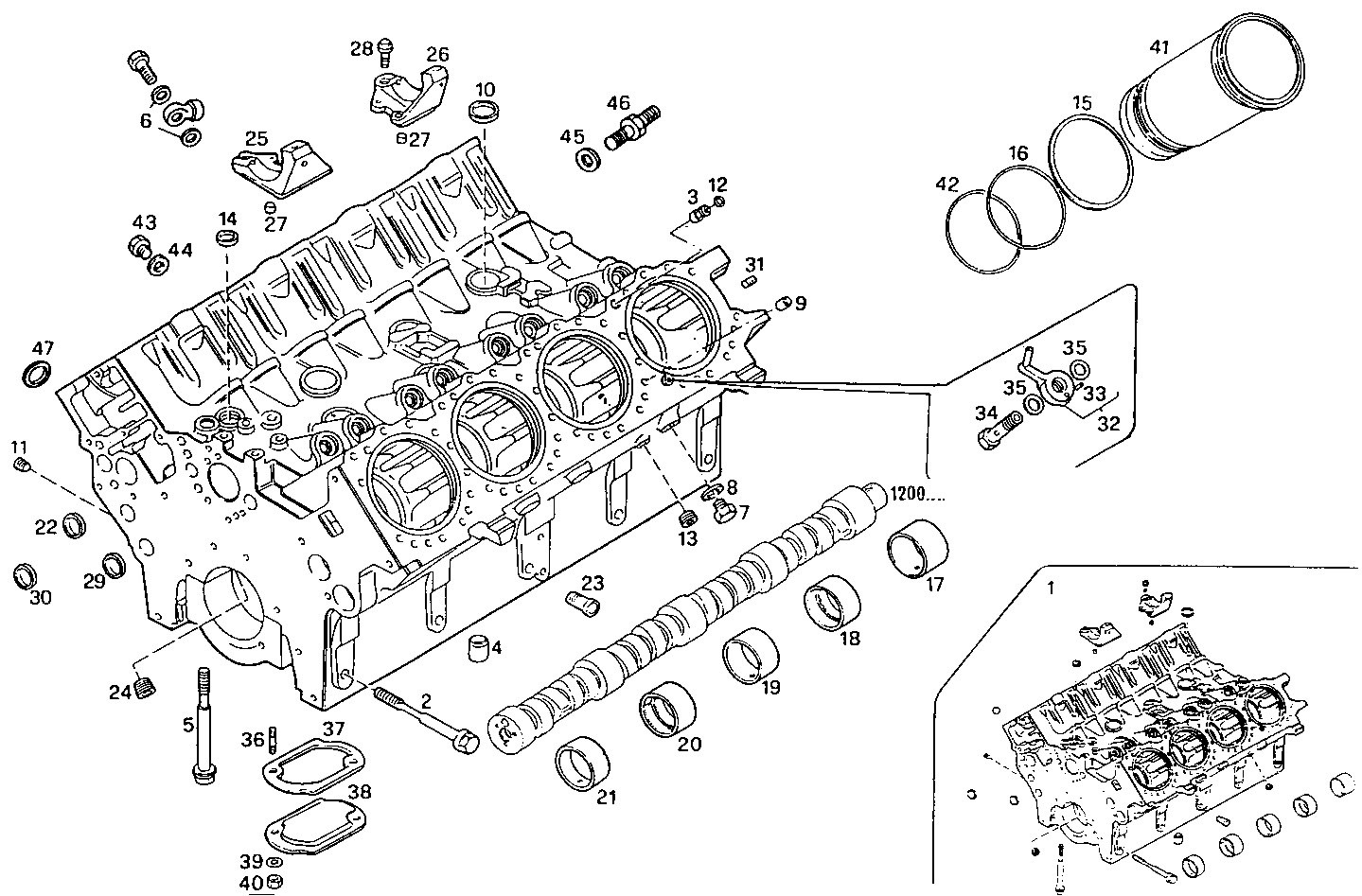

| Item |
Part number |
Description |
|
1 |
500354733 |
CRANKCASE ASSY |
|
2 |
4818507 |
HEXAGON BOLT M16 |
|
3 |
4671990 |
DOWEL PIN |
|
4 |
4687606 |
DOWEL PIN |
|
5 |
4769168 |
CRAHKSFT.BEAR.STUD M20 |
|
6 |
4712010 |
SEAL GASKET Ø18 MM |
|
7 |
10305071 |
LOCK PLUG M20X1,5 [up to ...] |
|
8 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
9 |
10839810 |
DOWEL PIN Ø12 MM |
|
10 |
14282970 |
LOCK PLUG Ø45 MM |
|
11 |
14325401 |
LOCK PLUG M24X1,5 |
|
12 |
14452981 |
O-RING Ø9,25 MM SP=1,78 MM |
|
13 |
14325001 |
PLUG M16X1,5 |
|
14 |
14282770 |
LOCK PLUG Ø36 MM |
|
15 |
4686958 |
FLAT ENGINE GASKET TOP |
|
16 |
99448045 |
O-RING |
|
17 |
4750566 |
CAMSHAFT BEARING REAR |
|
18 |
4699804 |
CAMSHAFT BEARING MIDDLE REAR |
|
19 |
4677736 |
CAMSHAFT BEARING MIDDLE |
|
20 |
4699803 |
CAMSHAFT BEARING FRONT MIDDLE |
|
21 |
4750565 |
CAMSHAFT BEARING FRONT |
|
22 |
14282670 |
LOCK PLUG Ø32 MM |
|
23 |
4695041 |
THREADED UNION |
|
24 |
14325501 |
LOCK PLUG M28X1,5 |
|
25 |
4868542 |
SUPPORT |
|
26 |
4797231 |
SUPPORT REAR |
|
27 |
10839610 |
DOWEL PIN Ø8 MM |
|
28 |
4686762 |
HEXAGON BOLT M10X1,25X30 |
|
29 |
4672742 |
CENTERING RING |
|
30 |
14328201 |
LOCK PLUG M10 |
|
31 |
10838001 |
DOWEL PIN Ø16 MM |
|
32 |
4803348 |
OIL NOZZLE ASSY [from 111661] |
|
33 |
10837210 |
DOWEL PIN Ø3 MM |
|
34 |
4693650 |
SCREW CONNECTOR |
|
35 |
4700613 |
GASKET |
|
36 |
13516621 |
STUD M8X16 MM |
|
37 |
4863514 |
FLAT ENGINE GASKET |
|
38 |
4679052 |
COVER |
|
39 |
17793814 |
WASHER Ø8,4X21 MM |
|
40 |
17157021 |
NUT M8X1,25 |
|
41 |
2991787 |
CYLINDER LINER |
|
42 |
99443709 |
O-RING |
|
43 |
4665029 |
LOCK PLUG M42X1,5 |
|
44 |
10265460 |
SEAL GASKET Ø42X49 MM SP=1,5 MM |
|
45 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
46 |
16509311 |
SWIVEL COUPLING |
|
47 |
4720130 |
CENTERING RING |
