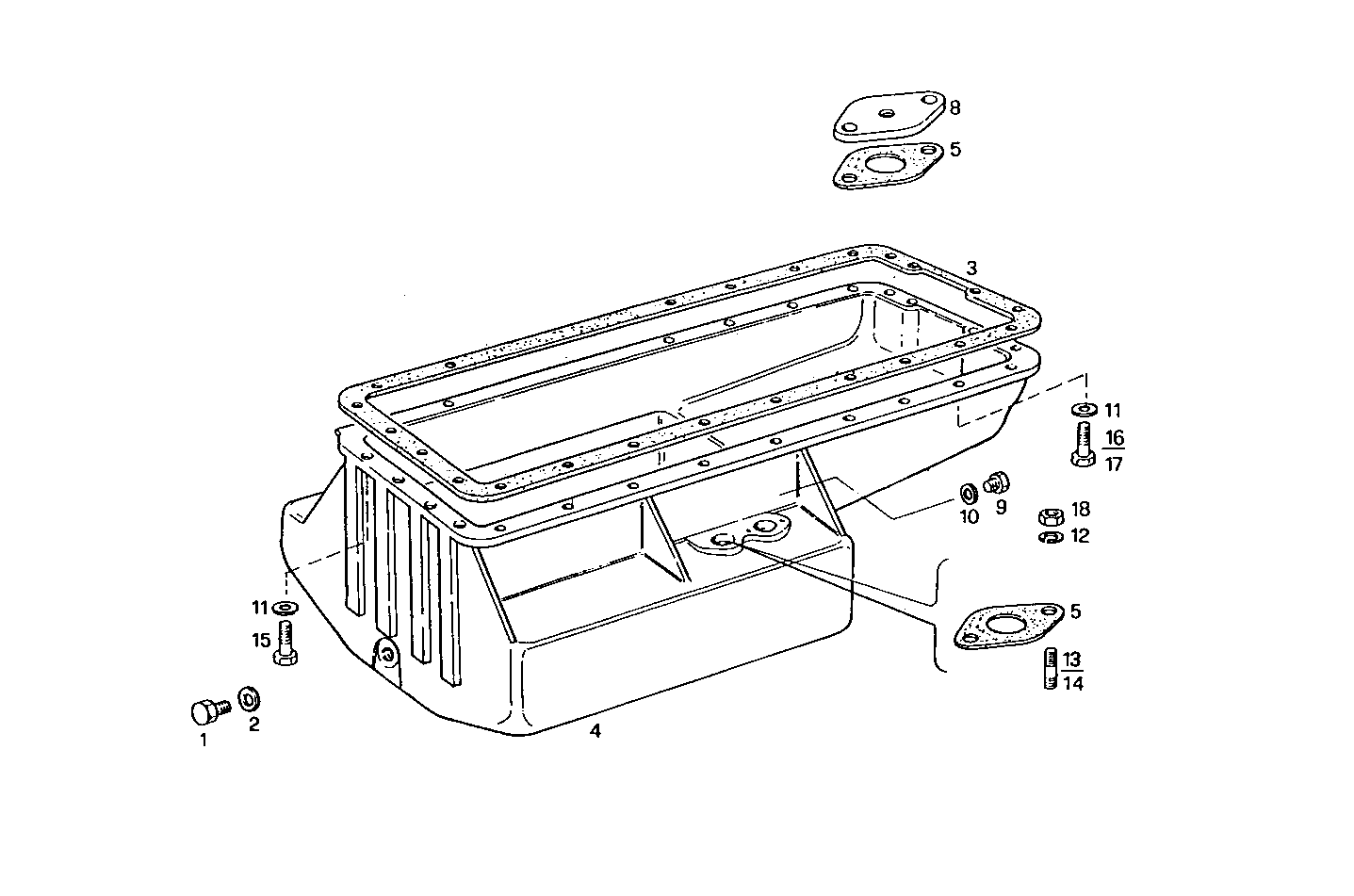

Item |
Part number |
Description |
1 |
4584394 |
PLUG 1/2'' |
2 |
11271460 |
GASKET Ø21X26X1,5 MM |
3 |
98414700 |
FLAT ENGINE GASKET |
4 |
4936329 |
MARINE ENGINE OIL SUMP ASSY |
5 |
4863361 |
GASKET |
8 |
8111336 |
FLANGE |
9 |
14326540 |
LOCK PLUG M22X1,5 |
10 |
10263460 |
WASHER Ø22X28X1,5 MM |
11 |
17800574 |
SPRING WASHER Ø10,5X21 MM |
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
13 |
13543321 |
STUD M8X16X20 MM |
14 |
13543621 |
STUD M8X16X30 MM |
15 |
11307021 |
HEXAGON BOLT M10X40 MM |
16 |
11306921 |
SCREW M10X1,25X30 |
17 |
11288024 |
HEXAGON BOLT M10X1,25X60 MM |
18 |
17037931 |
HEXAGON NUT M8X1,25 |
