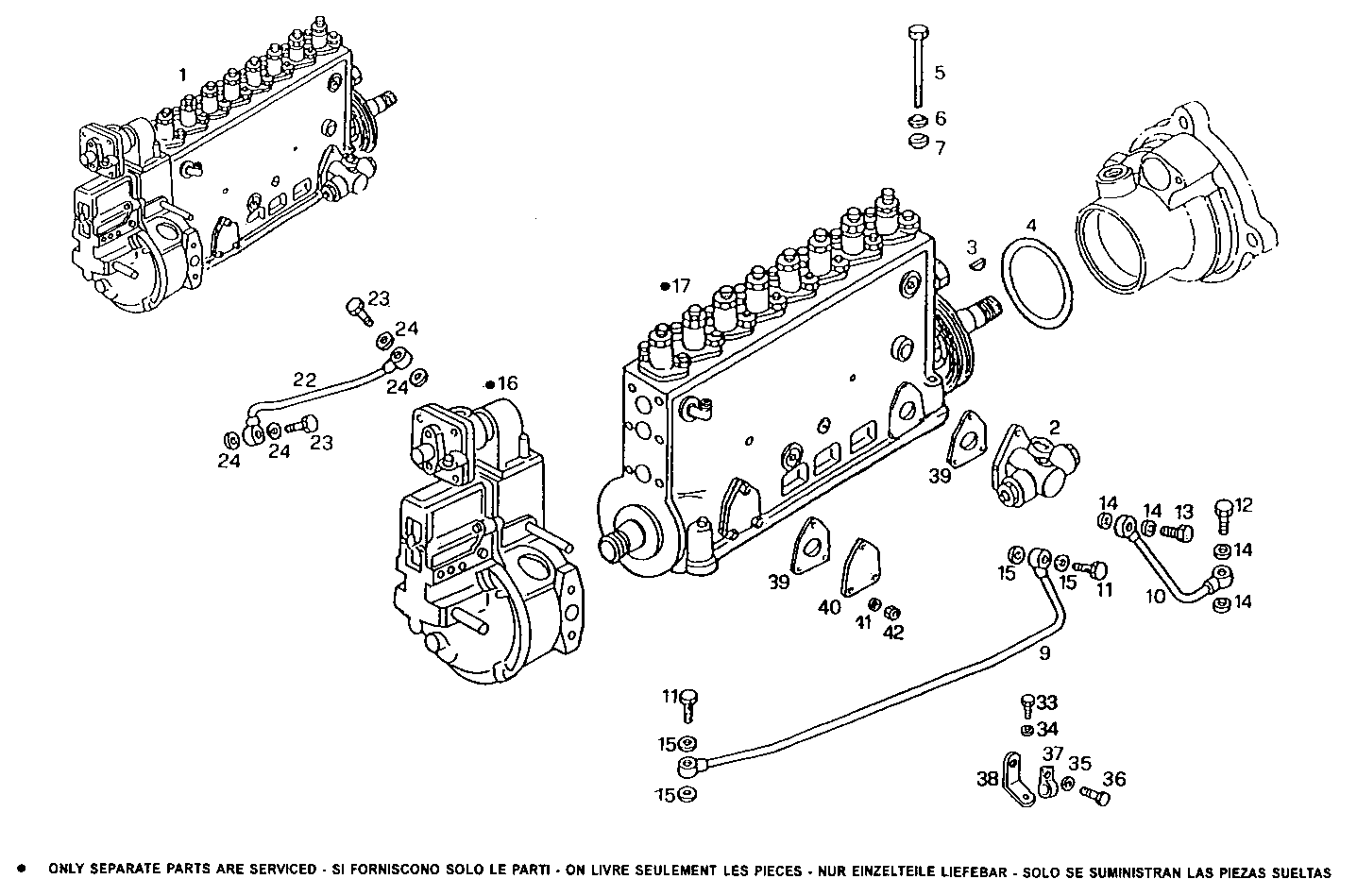

Item |
Part number |
Description |
1 |
8030701 |
INLINE INJECT.PUMP ASSY BOSCH |
2 |
93193277 |
FUEL PUMP |
3 |
17257870 |
DOWEL PIN Ø6 MM |
4 |
61317062 |
O-RING |
5 |
15971334 |
SCREW M10X1,25X75 |
6 |
17090274 |
WASHER Ø10X20 MM |
7 |
756671 |
WASHER |
9 |
98438719 |
OIL LINE |
10 |
8015443 |
OIL LINE |
11 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
12 |
4864080 |
SCREW CONNECTOR M10X1,25 |
13 |
4864079 |
SCREW CONNECTOR M10X1 |
14 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
15 |
98474308 |
SEAL GASKET Ø14X22 MM |
22 |
8018769 |
FUEL LINE L=240 MM |
23 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
24 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
33 |
16605524 |
HEXAGON BOLT M8X20 MM |
34 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
35 |
17088474 |
WASHER Ø6X12 MM |
36 |
16603424 |
SCREW M6X10 |
37 |
17310501 |
FASTENING BRACKET Ø10 MM |
38 |
99453158 |
FASTENING BRACKET BUNDY |
39 |
8111232 |
GASKET |
40 |
8006355 |
COVER |
41 |
17094601 |
WASHER Ø6X11 MM |
42 |
17037821 |
HEXAGON NUT M6X1 |
