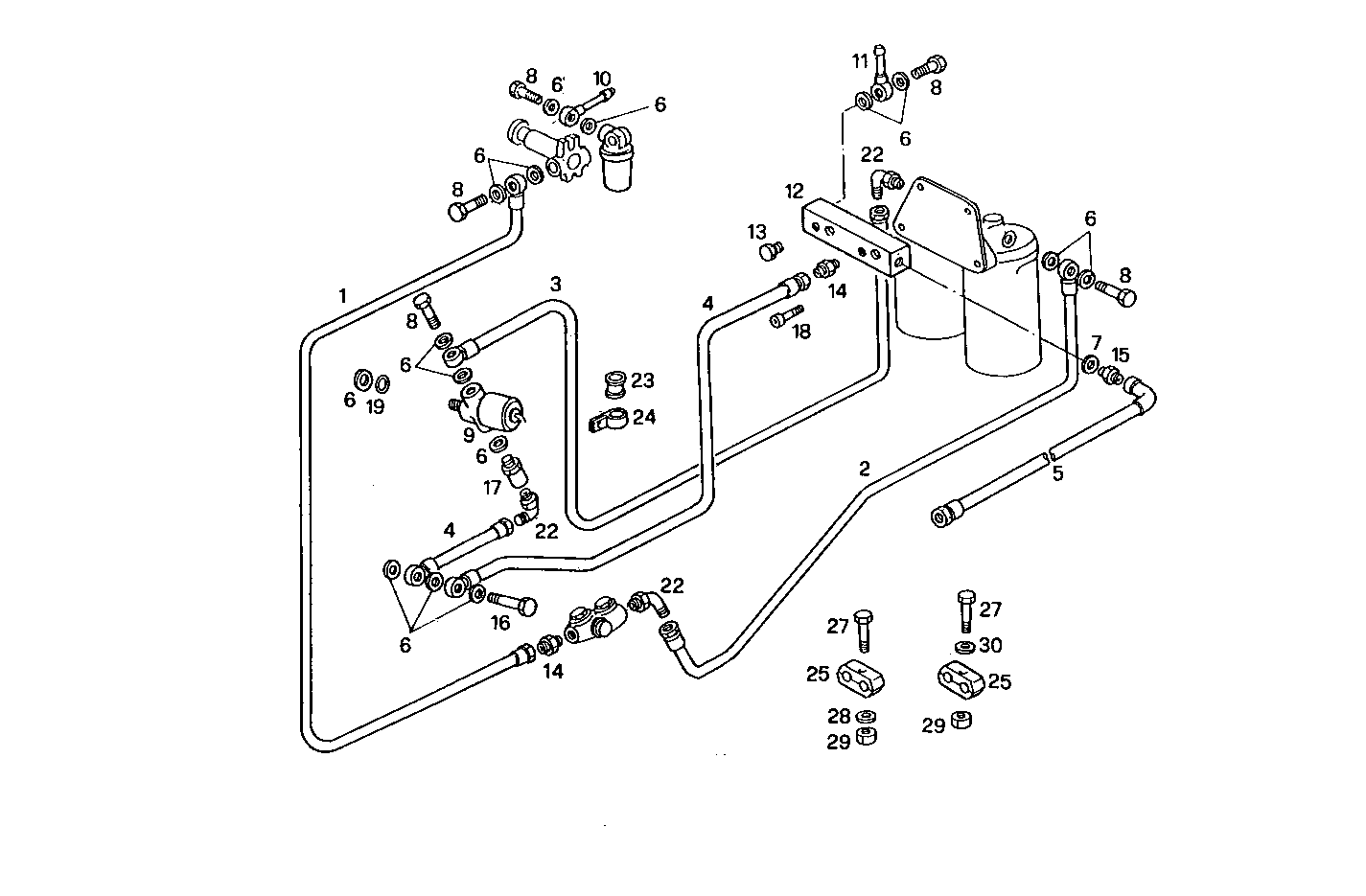

Item |
Part number |
Description |
1 |
8019051 |
HOSE L=400 MM |
2 |
8019052 |
FLEXIBLE FUEL PIPE L=1000 MM |
3 |
8019053 |
FLEXIBLE FUEL PIPE L=900 MM |
4 |
8019054 |
HOSE L=300 MM |
5 |
8019699 |
FUEL LINE L=400 MM |
6 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
7 |
4858606 |
GASKET Ø10X14X1 MM |
8 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
12 |
8019035 |
DISTRIBUTOR |
13 |
16992311 |
LOCK PLUG M14X1,5 |
14 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
15 |
16500011 |
PIPE SOCKET |
17 |
8102465 |
VALVE |
18 |
16690924 |
CYLIND-HEAD SCREW M8X40 MM |
19 |
17281581 |
O-RING Ø12,37X2,62 MM |
22 |
8025927 |
ELBOW COUPLING |
23 |
4757122 |
RUBBER PAD |
24 |
8019420 |
CLIP |
25 |
8010505 |
CLAMP Ø16 MM |
27 |
16605824 |
HEXAGON BOLT M8X35 MM |
28 |
17094914 |
WASHER 8x16 |
29 |
17152821 |
NUT M8 [up to 555939] |
31 |
16504014 |
ELBOW COUPLING |
32 |
16503914 |
ELBOW COUPLING M14X1,5 |
33 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
34 |
16500114 |
THREADED UNION M12X1,5 - M14X1,5 |
35 |
17037931 |
HEXAGON NUT M8X1,25 |
36 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
