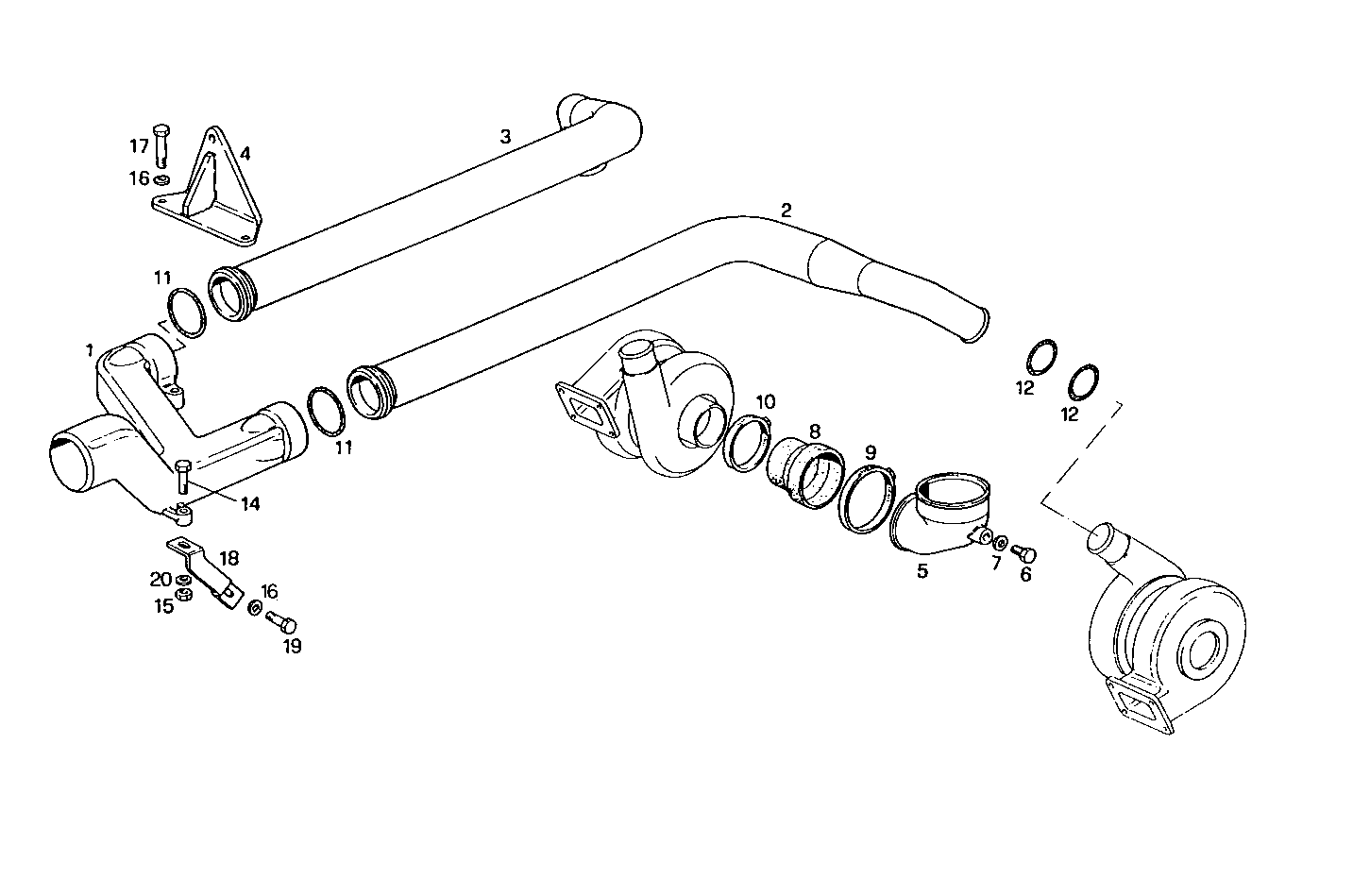

| Item |
Part number |
Description |
|
1 |
8014668 |
AIR HOOD |
|
2 |
8030519 |
AIR PIPE/DUCT |
|
3 |
8030520 |
AIR PIPE/DUCT |
|
4 |
8019515 |
RETAINER |
|
5 |
8109999 |
INTAKE ELBOW |
|
6 |
11903111 |
LOCK PLUG M10X1,25 |
|
7 |
4858606 |
GASKET Ø10X14X1 MM |
|
8 |
8111448 |
CONNECTOR SLEEVE |
|
9 |
17765191 |
CLIP Ø70/90 MM |
|
10 |
17765291 |
CLIP Ø80/100 MM |
|
11 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
|
12 |
17290281 |
O-RING Ø63,09 MM SP=3,53 MM |
|
14 |
16606024 |
SCREW M8X45 MM |
|
15 |
17037931 |
HEXAGON NUT M8X1,25 |
|
16 |
17094914 |
WASHER 8x16 |
|
18 |
8014670 |
RETAINER |
|
19 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
