8281SRi40.00

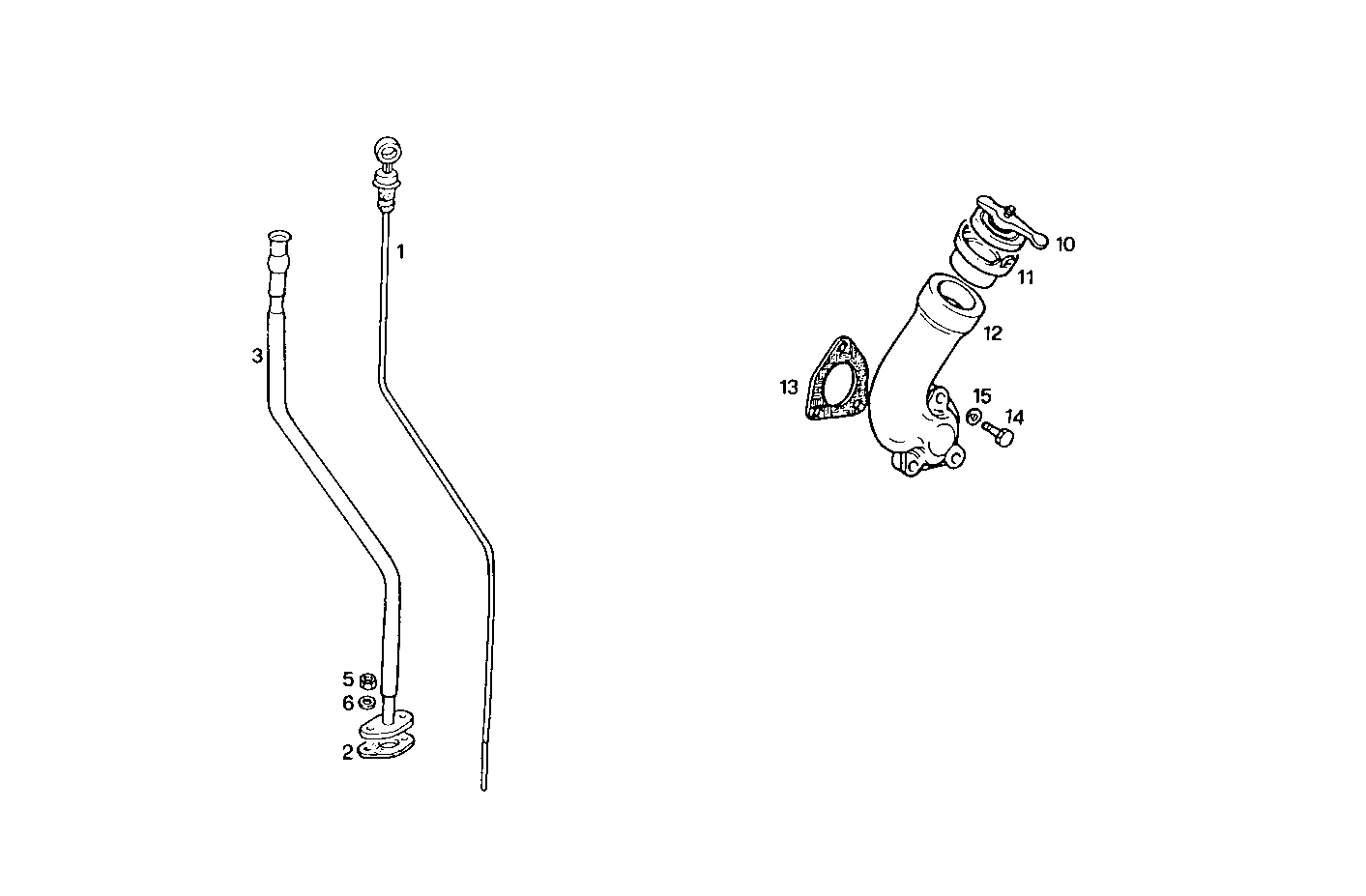

2710.072 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 8006839 | OIL DIPSTICK |
2 | 4863361 | GASKET |
3 | 8006838 | ROD GUIDE |
5 | 17037931 | HEXAGON NUT M8X1,25 |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 61657884 | OIL FILLER PLUG |
11 | 61228426 | PLUG |
12 | 4687394 | FILLER NECK |
13 | 4863490 | FLAT ENGINE GASKET |
14 | 16605734 | HEXAGON BOLT M8X30 MM |
15 | 17094914 | WASHER 8x16 |
