8281SRi40.00

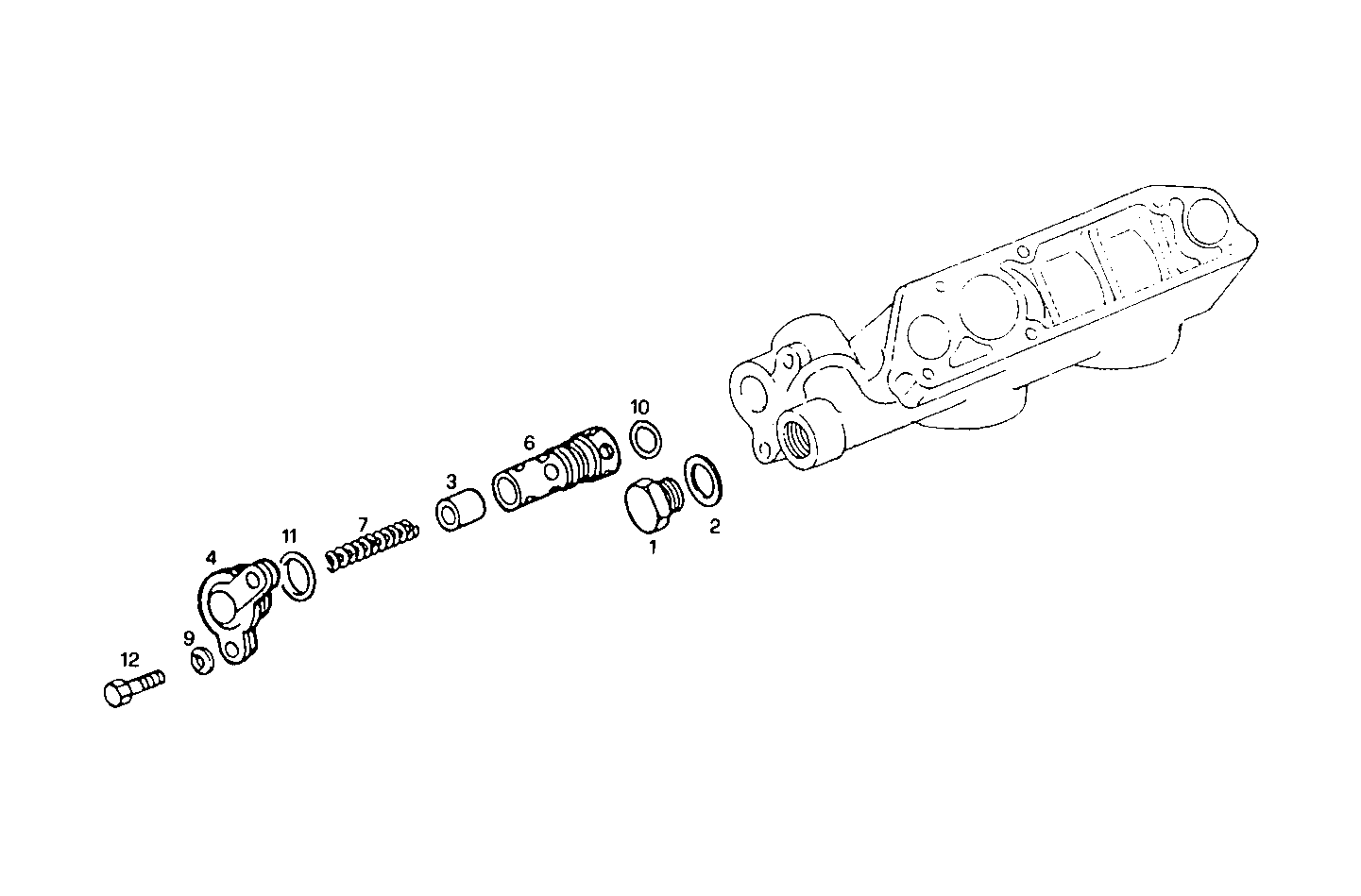

3030.047 OIL PRESSURE VALVE
Item | Part number | Description |
---|---|---|
1 | 16993511 | LOCK PLUG M28X1,5 |
2 | 10296260 | SEAL GASKET Ø28X36 MM SP=1,5 MM |
3 | 4672842 | VALVE |
4 | 4676507 | COVER |
6 | 4824764 | VALVE HOUSING |
7 | 4677094 | SPRING |
9 | 17089874 | WASHER Ø8X22 MM |
10 | 17282281 | O-RING 2,62x23,47 |
11 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
