8281SRi40.00

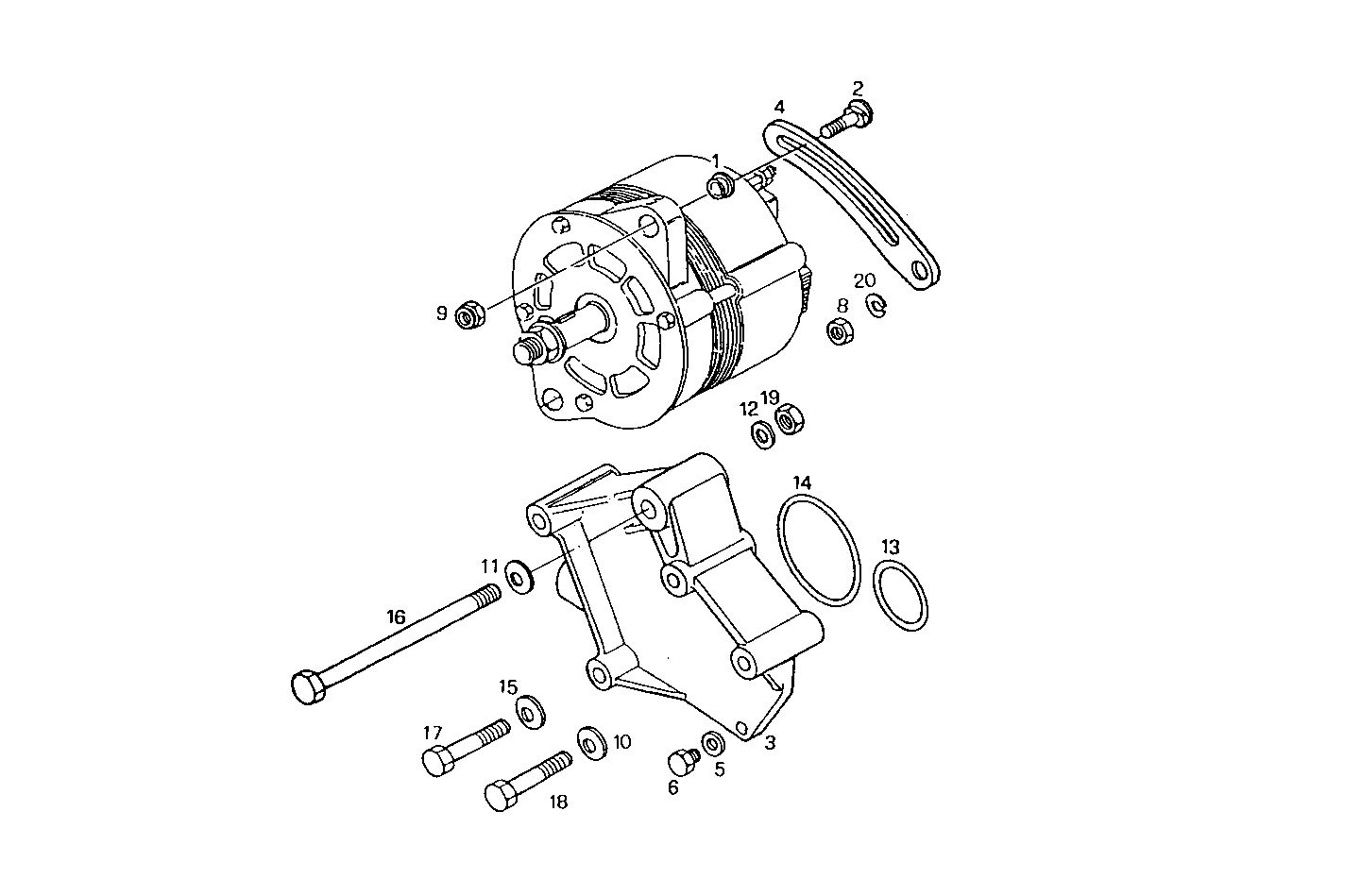

4010.113 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4677044 SPACING BAR
2 4799044 THREADED PIN
3 4799669 GENERATOR SUPPORT
4 4799775 BRACE/STRUT
5 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
6 10278301 LOCK PLUG M28
8 17038221 HEXAGON NUT M10
9 12574511 NUT M10X1,25
10 17094924 WASHER Ø8X16 MM
11 12646901 WASHER Ø12X28 MM
12 17091174 SPRING WASHER Ø12X24 MM
13 98465110 O-RING Ø31,42 MM SP=2,62 MM
14 17285681 O-RING Ø88,57 MM SP=2,62 MM
15 17095126 WASHER Ø10X21 MM
16 15543221 HEXAGON BOLT M12X1,25X125 MM
17 15971421 HEXAGON BOLT M10X1,25X80 MM
18 16606024 SCREW M8X45 MM
19 17038621 NUT M12
20 17090274 WASHER Ø10X20 MM
