8281SRM44.10

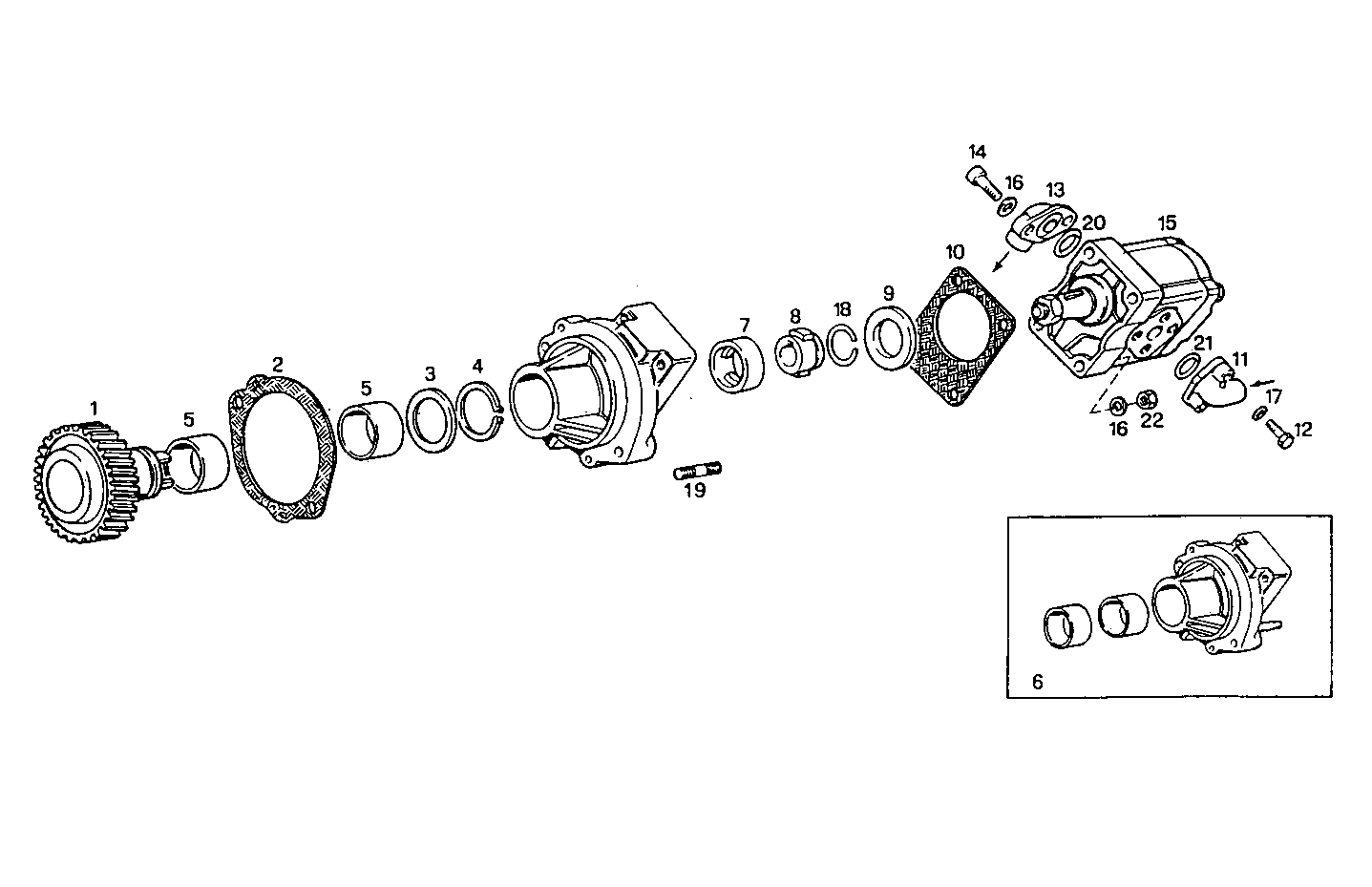

A09040010 FRONT HYDRAULIC PUMP

Iveco/FPT FRONT HYDRAULIC PUMP

Item Part number Description
1 4714562 DRIVE GEAR
2 4863534 GASKET
3 4699280 RING
4 4571854 CIRCLIP
5 4692781 CENTERING BUSH
6 4686655 SUPPORT ASSY
7 4621358 RING
8 8011614 HUB
9 4677821 RING
10 4863489 FLAT ENGINE GASKET
11 4690715 PIPE SOCKET
12 16605824 HEXAGON BOLT M8X35 MM
13 4670953 PIPE SOCKET
14 16603924 HEXAGON BOLT M6X30 MM
15 5129486 HAND PUMP ASSY PLESSEY C31
16 17088474 WASHER Ø6X12 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 17082776 SPRING LOCKWASHER Ø23,7 MM
19 16745224 STUD M6X12X30
20 17281781 O-RING Ø15,5 MM SP=2,6 MM
21 17282181 O-RING Ø21,8 MM SP=2,6 MM
22 17037821 HEXAGON NUT M6X1
