8281SRM44.10

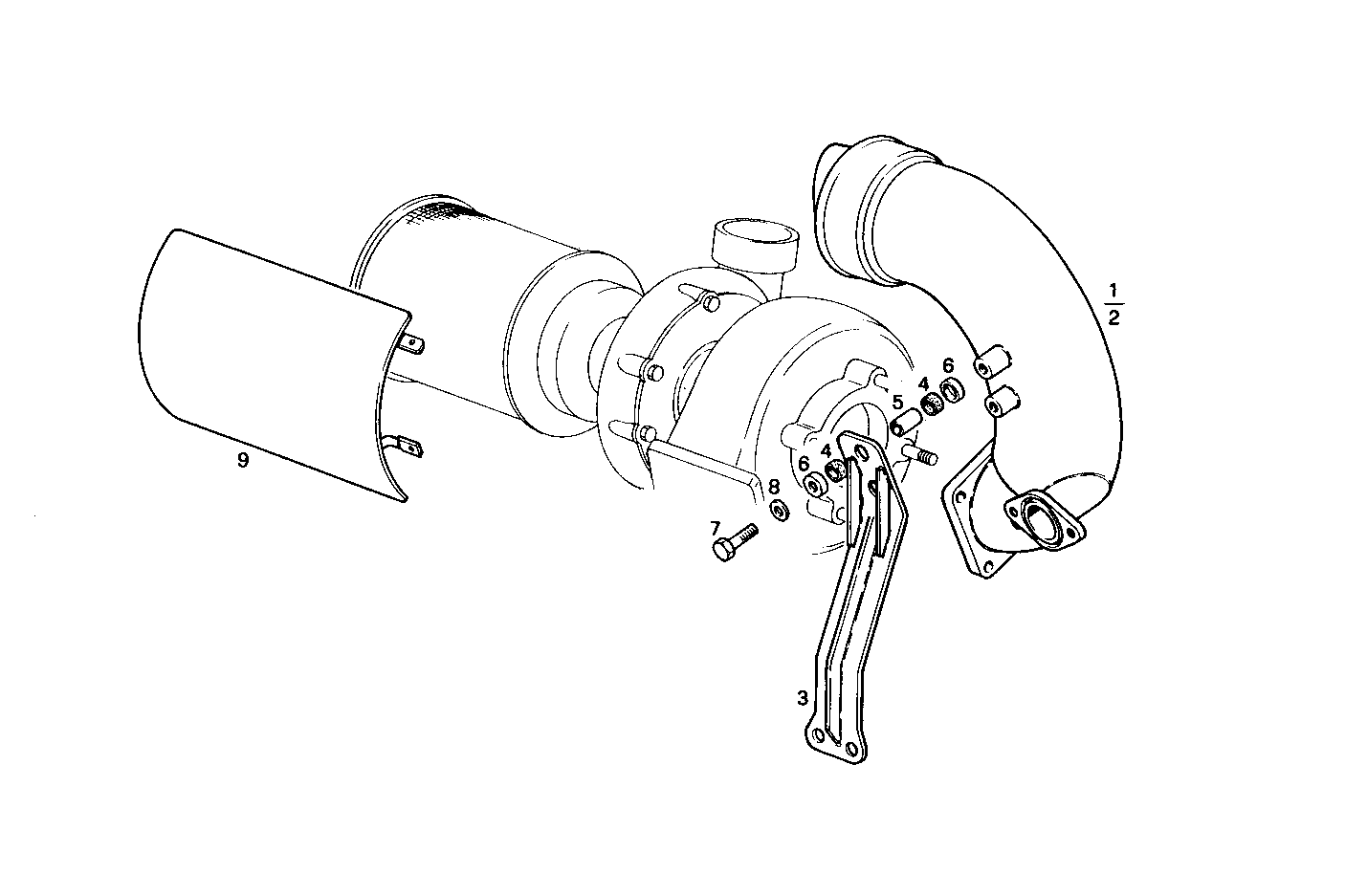

A40050011/01 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8112302 | EXHAUST COOL. ELBOW LEFT |
| 2 | 8112303 | EXHAUST COOL. ELBOW RIGHT |
| 3 | 8112475 | RETAINER |
| 4 | 4023905 | DOWEL |
| 5 | 4617262 | SPACING BAR |
| 6 | 4023904 | CAP |
| 7 | 16605734 | HEXAGON BOLT M8X30 MM |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 8105813 | PROTECTION |
