8281SRM44.10

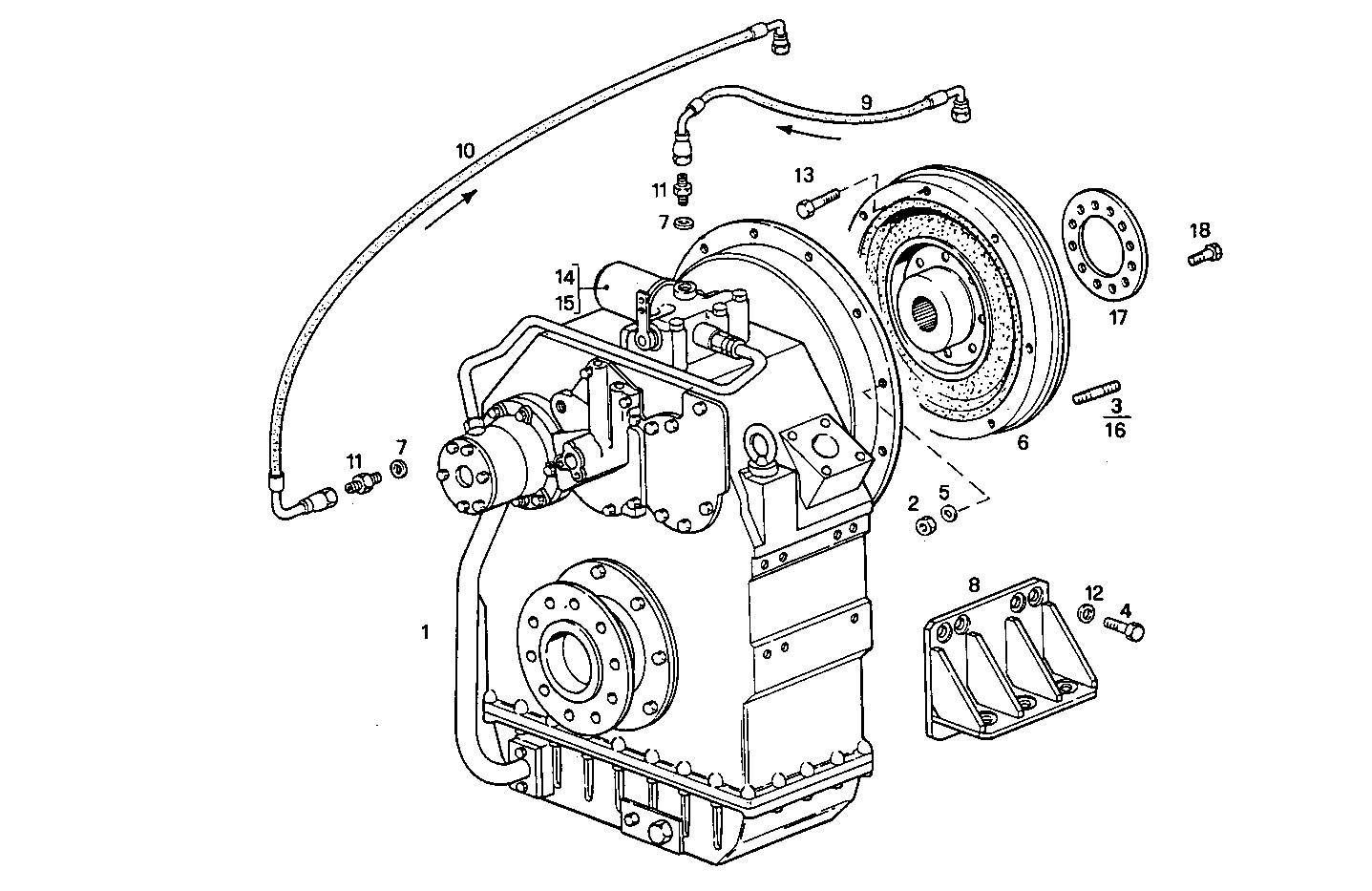

A51870002 MARINE GEAR ZF-MPM IRM 350 - ratio 4.960:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 350

Item Part number Description
1 8005128 MARINE GEAR 4,960:1
2 17038221 HEXAGON NUT M10
3 13454021 STUD M10X25X45 MM
4 4932875 SCREW M16X2X45
5 17090174 SPRING WASHER Ø10X20 MM
6 8110990 FLEXIBLE COUPLING
7 10271460 GASKET
8 8110996 SUPPORT
9 8006875 HOSE
10 8013774 HOSE
11 8017553 PIPE SOCKET [up to 05-98]
12 11194279 SPRING WASHER Ø17,4 MM
13 14274621 LOCKING SCREW M12X1,25X35
14 8007794 OIL FILTER CARTRIDGE ALTERNATIVE USE
15 8007795 OIL FILTER CARTRIDGE ALTERNATIVE USE
16 13454321 STUD M10X25X60
17 4936733 SUPPORT RING
18 14255031 SCREW M14X1,5X60
