8281SRM44.30

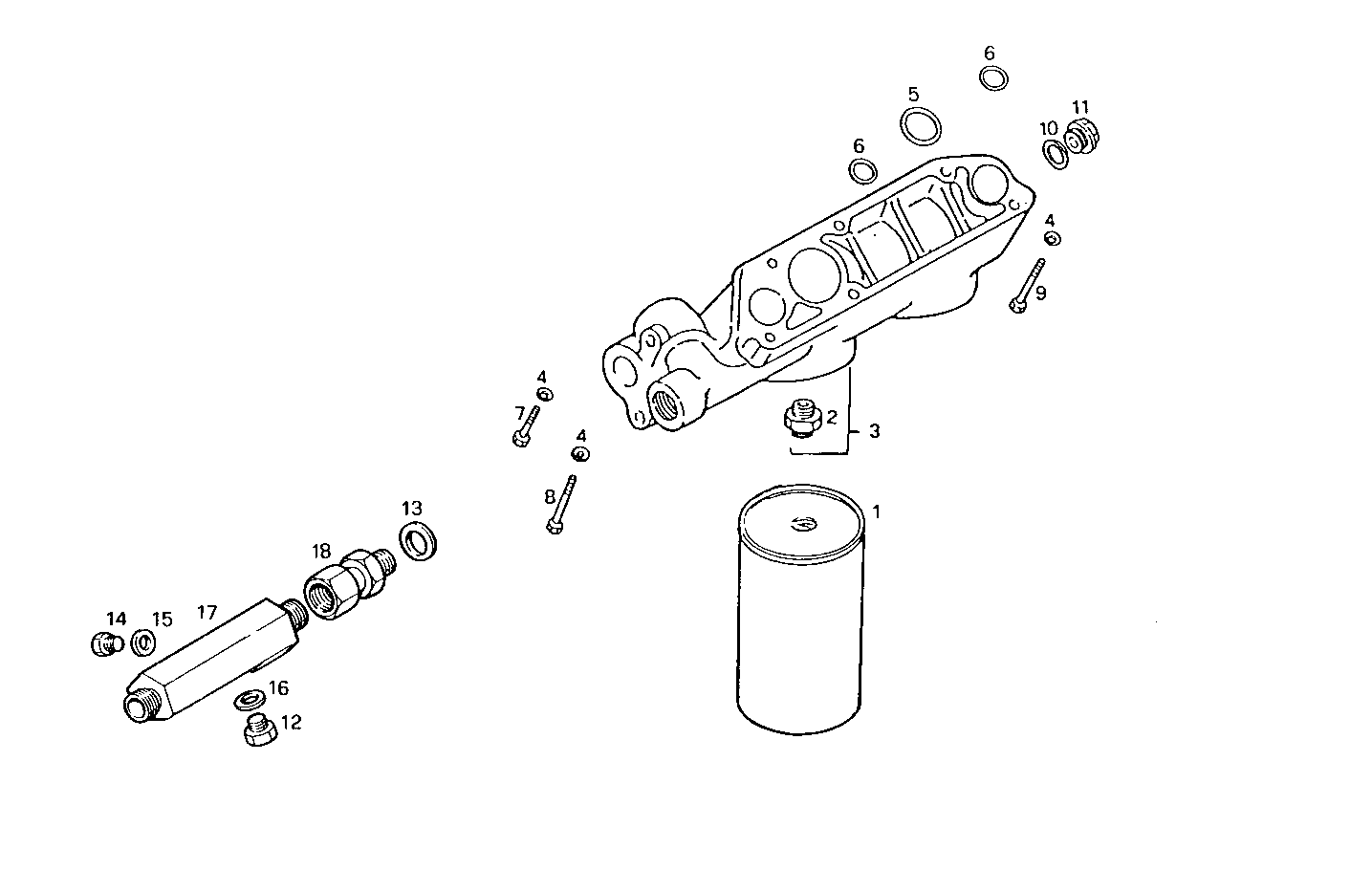

3020.013 OIL FILTERS

Iveco/FPT OIL FILTERS

Item Part number Description
1 1902093 OIL FILTER CARTRIDGE
2 4785450 THREADED UNION
3 4787251 OIL FILTER SUPPORT ASSY
4 11198171 SPRING WASHER Ø8,4 MM
5 17282781 O-RING Ø31,42 MM SP=2,62 MM
6 17282981 O-RING 2,62x34,59
7 16044221 HEXAGON BOLT M8X50 MM
8 16044821 HEXAGON BOLT M8X80 MM
9 16044621 HEXAGON BOLT M8X70 MM
10 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
11 4689022 PLUG
12 16992240 THREADED PLUG M12X1,5
13 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
14 16992140 PLUG M10X1
15 4858606 GASKET Ø10X14X1 MM
16 4858607 WASHER Ø12X17 MM SP=1,5 MM
17 8008322 CHOCK
18 8008323 PIPE SOCKET
