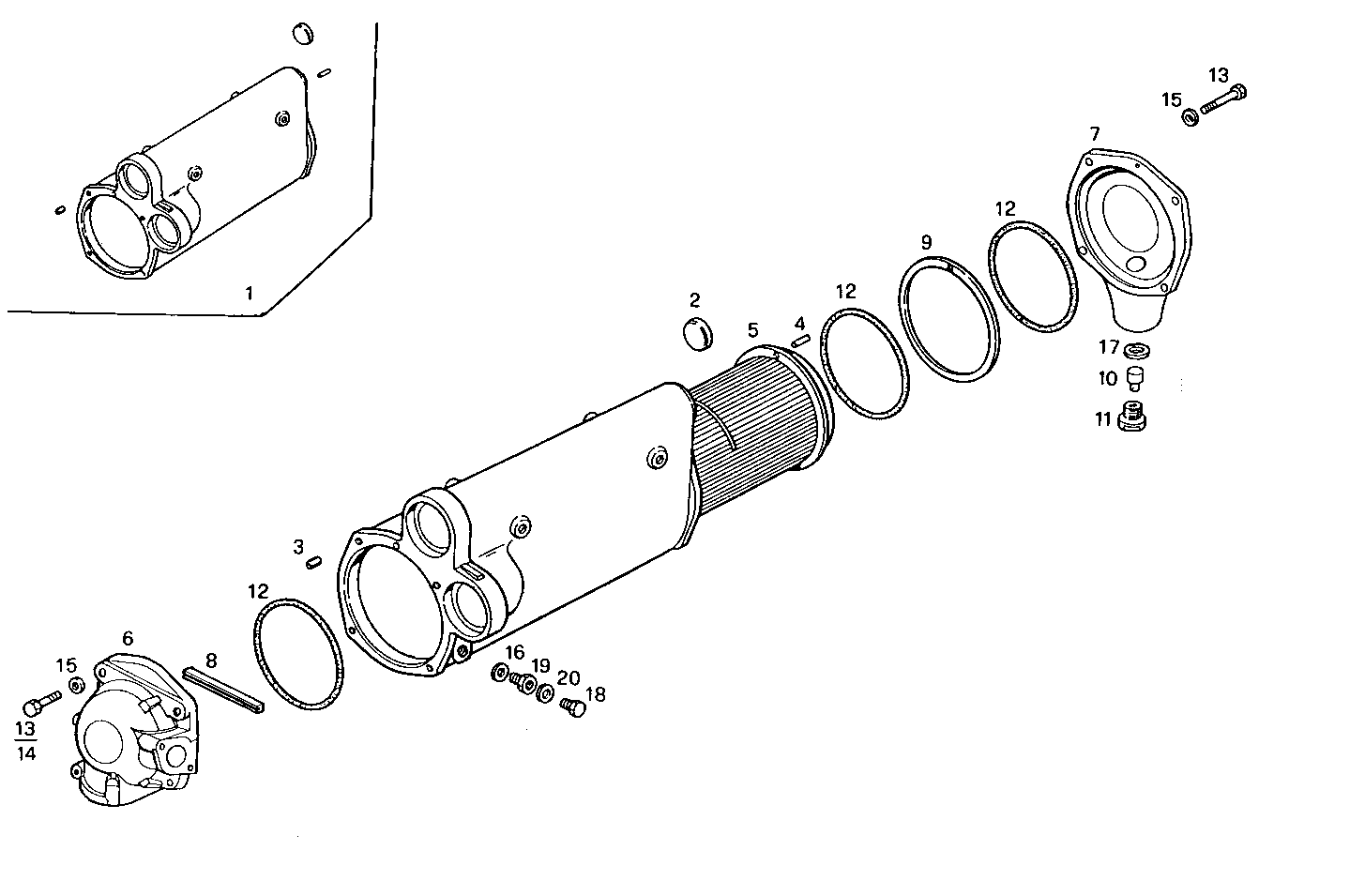

| Item |
Part number |
Description |
|
1 |
8009500 |
HEAT EXANGER BODY ASSY |
|
2 |
16991370 |
LOCK PLUG Ø45 MM |
|
3 |
17873271 |
THREADED INSERT M8 |
|
4 |
17236310 |
PARALLEL PIN |
|
5 |
8031365 |
TUBE STACK |
|
6 |
8024299 |
HEAT EXCHANG.COVER |
|
7 |
8009504 |
HEAT EXCHANG.COVER |
|
8 |
8110978 |
GASKET |
|
9 |
8009505 |
SPACING BAR |
|
10 |
8101772 |
SACRIFICAL ANODE Ø20 MM |
|
11 |
8101771 |
PLUG M28 |
|
12 |
17293181 |
O-RING Ø158,30X3,53 MM |
|
13 |
16605924 |
SCREW M8X40 MM |
|
14 |
16606924 |
SCREW M8X110 |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
98429282 |
SEAL GASKET Ø26X33 MM SP=1,5 MM |
|
17 |
10296260 |
SEAL GASKET Ø28X36 MM SP=1,5 MM |
|
18 |
16992440 |
THREADED PLUG M16X1,5 |
|
19 |
8011536 |
PIPE SOCKET |
|
20 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
