8281SRM50.12

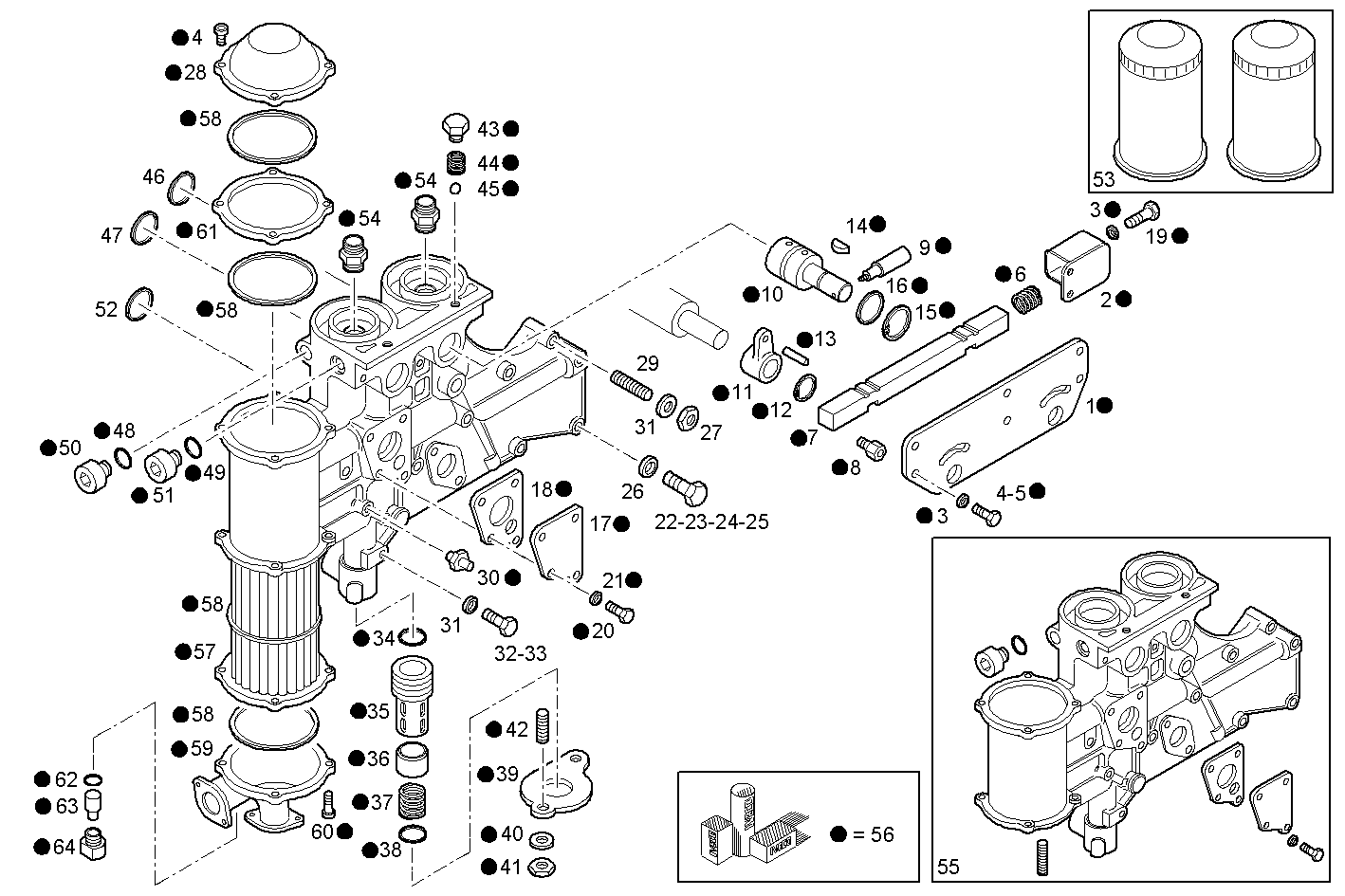

3020.066 OIL FILTERS

Iveco/FPT OIL FILTERS

Item Part number Description
1 8025113 PLATE
2 8025118 RETAINER
3 17088474 WASHER Ø6X12 MM
4 16603524 SCREW M6X12 MM (8.8)
5 16603624 HEXAGON BOLT M6X16 MM (8.8)
6 8009727 SPRING
7 8025114 ROD
8 8009742 SPACING BAR
9 8009717 HANDLE BALL
10 8009716 VALVE
11 8021563 LEVER ASSY
12 16866276 CIRCLIP Ø22X1,2 MM
13 17236510 PIN Ø4X20 MM
14 17221020 KEY M12X110 MM
15 16873176 CIRCLIP Ø47X1,75 MM
16 17289481 O-RING Ø37,69 MM SP=3,53 MM
17 8026633 COVER
18 8026635 GASKET
19 16604024 HEXAGON BOLT M6X35 MM
20 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
21 16665604 WASHER Ø10X20 MM
22 16606124 HEXAGON BOLT M8X50 MM
23 16606324 HEXAGON BOLT M8X60 MM
24 16606924 SCREW M8X110
25 16607024 HEXAGON BOLT M8X120 MM
26 17089574 WASHER Ø8X16 MM
27 17038221 HEXAGON NUT M10
28 8017606 HEAT EXCHANG.COVER
29 13953521 STUD
30 500351609 SENSOR OIL PRESSURE [UP TO # 50367]
31 17090474 SPRING WASHER Ø10X27 MM SP=2,5
32 11288024 HEXAGON BOLT M10X1,25X60 MM
33 15971424 HEXAGON BOLT M10X80 MM
34 17282281 O-RING 2,62x23,47
35 4824764 VALVE HOUSING
36 4672842 VALVE
37 4677094 SPRING
38 17282581 O-RING Ø28,24 MM SP=2,62 MM
39 4676507 COVER
40 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
41 17037931 HEXAGON NUT M8X1,25
42 16729224 STUD M8X16 MM
43 8009724 PLUG
44 8009726 SPRING
45 8009725 BALL
46 17282781 O-RING Ø31,42 MM SP=2,62 MM
47 17284081 O-RING
48 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
49 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
50 16993511 LOCK PLUG M28X1,5
51 16994111 PLUG M24X1,5
52 17285681 O-RING Ø88,57 MM SP=2,62 MM
53 1903630 OIL FILTER CARTRIDGE KIT
54 4741301 THREADED UNION ASSY
55 8024385 HEAT EXANGER BODY ASSY
56 8025104 OIL FILTER ASSY PRIMARY
57 8017399 TUBE STACK
58 99431653 O-RING Ø106,2 MM SP=3,53
59 8025798 COVER
60 16690724 CYLIND-HEAD SCREW M8X30 MM
61 8017862 SPACING BAR
62 4858609 WASHER Ø16X22 MM SP=1,5 MM
63 8105277 SACRIFICAL ANODE Ø14 MM
64 8105276 PLUG M16
