8281SRM50.12

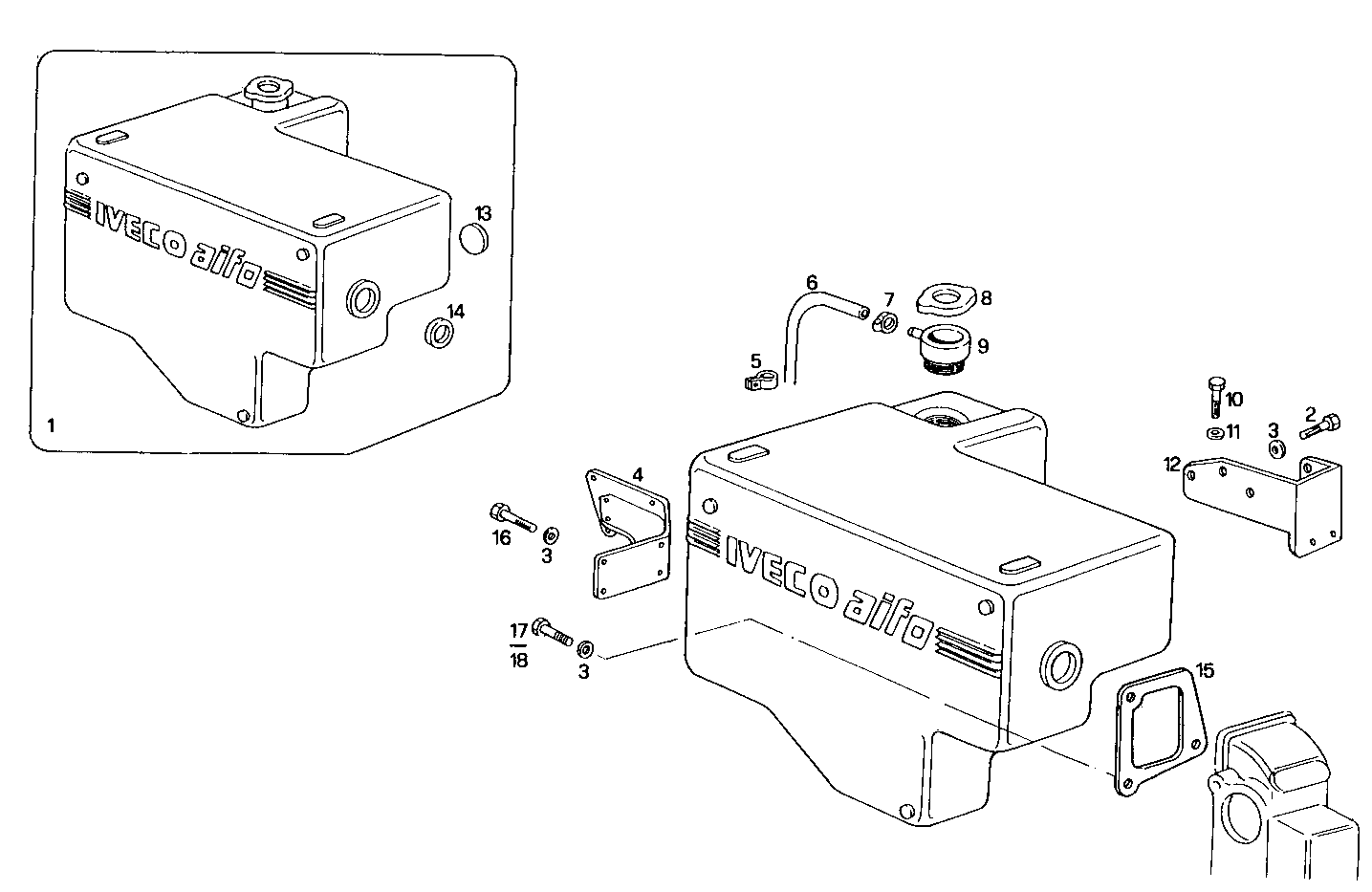

3290.016 EXPANSION TANK

Iveco/FPT EXPANSION TANK

Item Part number Description
1 8024501 WATER EXPANSION TANK ASSY
2 16607624 SCREW M10X25
3 17090174 SPRING WASHER Ø10X20 MM
4 8024968 RETAINER
5 17316590 PIPE CLIP Ø12 MM
6 17723081 WATER HOSE Ø7X25 MM
7 17764293 CLIP Ø10/16 MM
8 4927808 PLUG 0,5 BAR
9 4934521 PIPE SOCKET
10 15540321 HEXAGON BOLT M12X1,25X25 MM
11 17091074 WASHER Ø12X24X2,8 MM
12 8024969 RETAINER
13 16991170 LOCK PLUG Ø36 MM
14 16991370 LOCK PLUG Ø45 MM
15 4863517 FLAT ENGINE GASKET
16 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
17 15888721 HEXAGON BOLT M10X1,25X55 MM
18 15972021 HEXAGON BOLT M10X1,25X110 MM
