8281SRM50.12

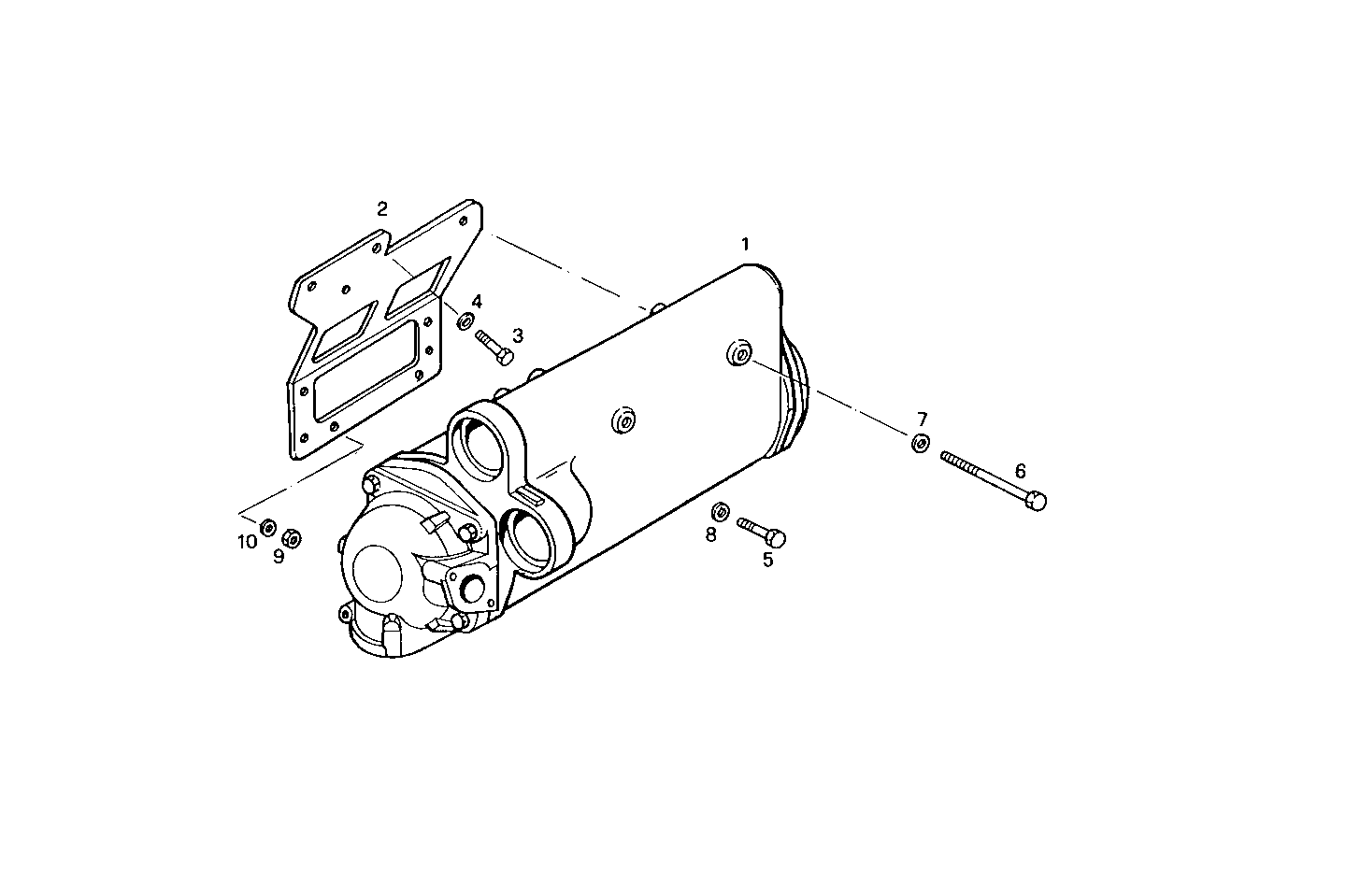

3370.039/01 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8030126 | WATER/SEA WATER HEAT EXCH ASSY |
| 2 | 8024585 | SUPPORT |
| 3 | 16614624 | HEXAGON BOLT M16X40 MM |
| 4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 5 | 16612224 | HEXAGON BOLT M14X30 MM |
| 6 | 16163121 | SCREW |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17091674 | WASHER Ø14X27X3,0 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 17089574 | WASHER Ø8X16 MM |
