8281SRM50.12

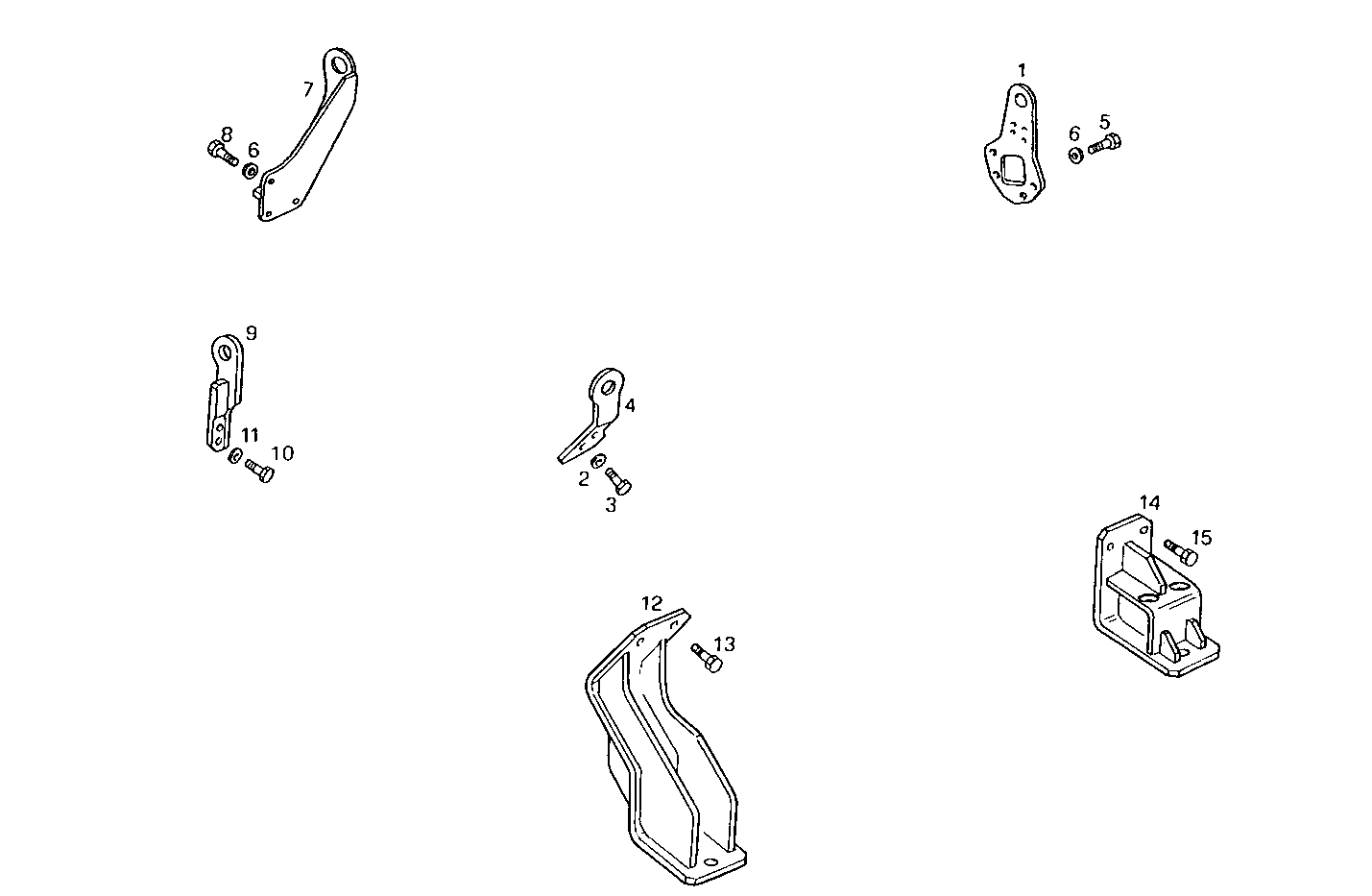

4500.093 ENGINE SUSPENSION
Item | Part number | Description |
---|---|---|
1 | 4796633 | HOOK |
2 | 10738101 | WASHER |
3 | 11408321 | HEXAGON BOLT M14X1,5X35 MM [up to ...] |
4 | 4812007 | HOOK |
5 | 11306921 | SCREW M10X1,25X30 |
6 | 17090274 | WASHER Ø10X20 MM |
7 | 4720469 | HOOK FRONT RIGHT |
8 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
9 | 8026583 | HOOK |
10 | 11255921 | HEXAGON BOLT M14X1,5X40 MM |
11 | 17091674 | WASHER Ø14X27X3,0 MM |
12 | 8024389 | ENGINE SUSPENSION |
13 | 17458234 | LOCKING SCREW M12X30 MM |
14 | 8024481 | ENGINE SUSPENSION |
15 | 17462034 | LOCKING SCREW M16X2X40 MM |
