8281SRM50.31

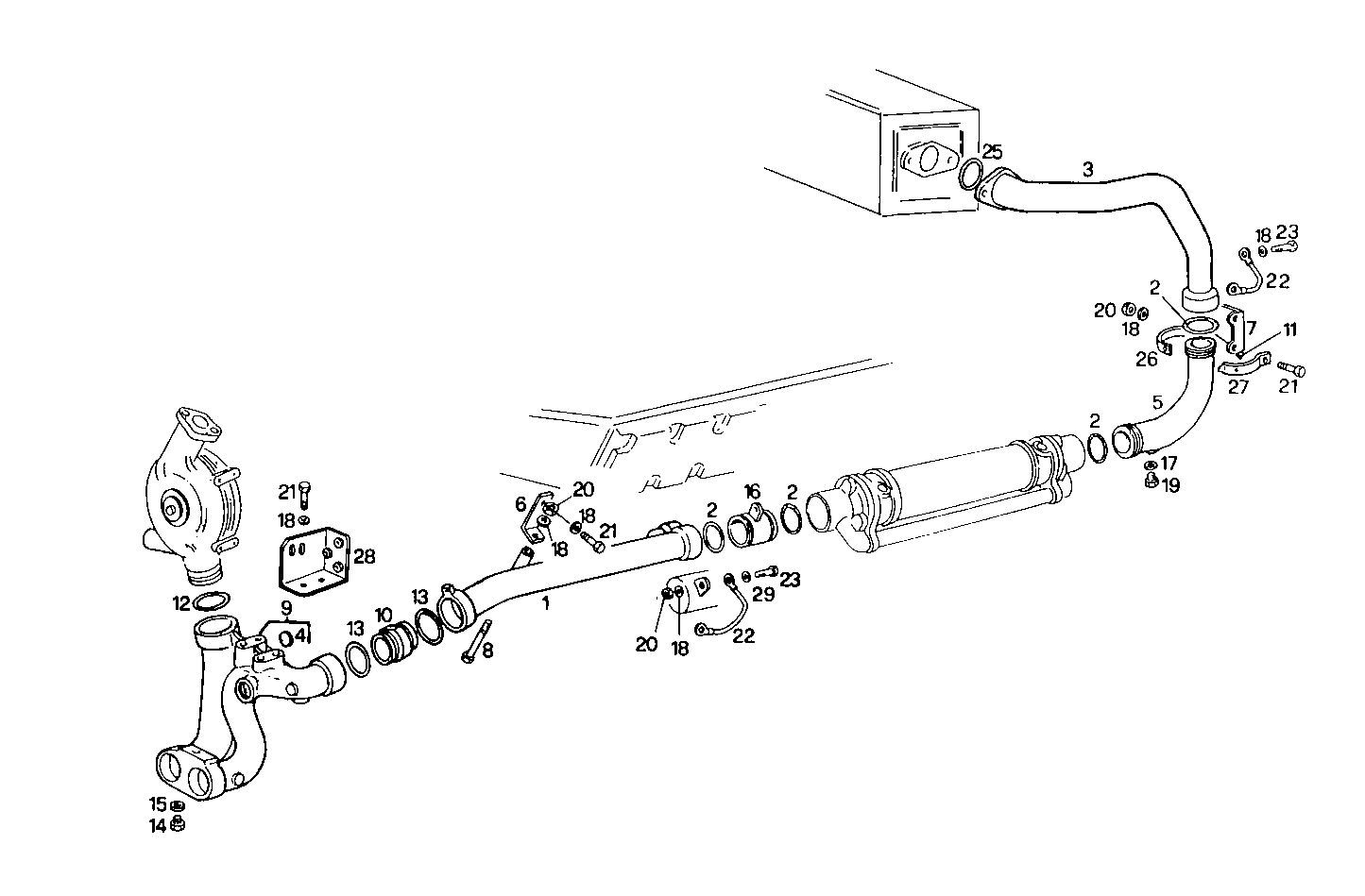

3210.187/05 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8028957 WATER PIPE
2 17289681 O-RING Ø44 MM SP=3,53 MM
3 8007488 WATER PIPE
4 16991170 LOCK PLUG Ø36 MM
5 8027108 WATER PIPE
6 8113567 RETAINER [up to ...]
7 8007518 RETAINER
8 16045021 HEXAGON BOLT M8X90 MM
9 8028098 WATER PIPE
10 8028161 SPACING BAR
11 1366290 RUBBER LUG
12 17290081 O-RING Ø56,74 MM SP=3,53 MM
13 17290181 O-RING Ø59,92 MM SP=3,53 MM
14 11992411 PLUG
15 4858609 WASHER Ø16X22 MM SP=1,5 MM
16 8112469 PIPE SOCKET
17 4858606 GASKET Ø10X14X1 MM
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 11903140 PLUG M10X1,25
20 17037931 HEXAGON NUT M8X1,25
21 16605524 HEXAGON BOLT M8X20 MM
22 8113786 ENGINE HARNESS GND
23 16603424 SCREW M6X10
24 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
25 17283981 O-RING Ø50,4 MM SP=2,6 MM
26 8113296 CLAMP Ø50 MM
27 8113295 CLAMP Ø50 MM
28 8025359 RETAINER
29 17094704 WASHER Ø6X12X1,6 MM
