8281SRM50.31

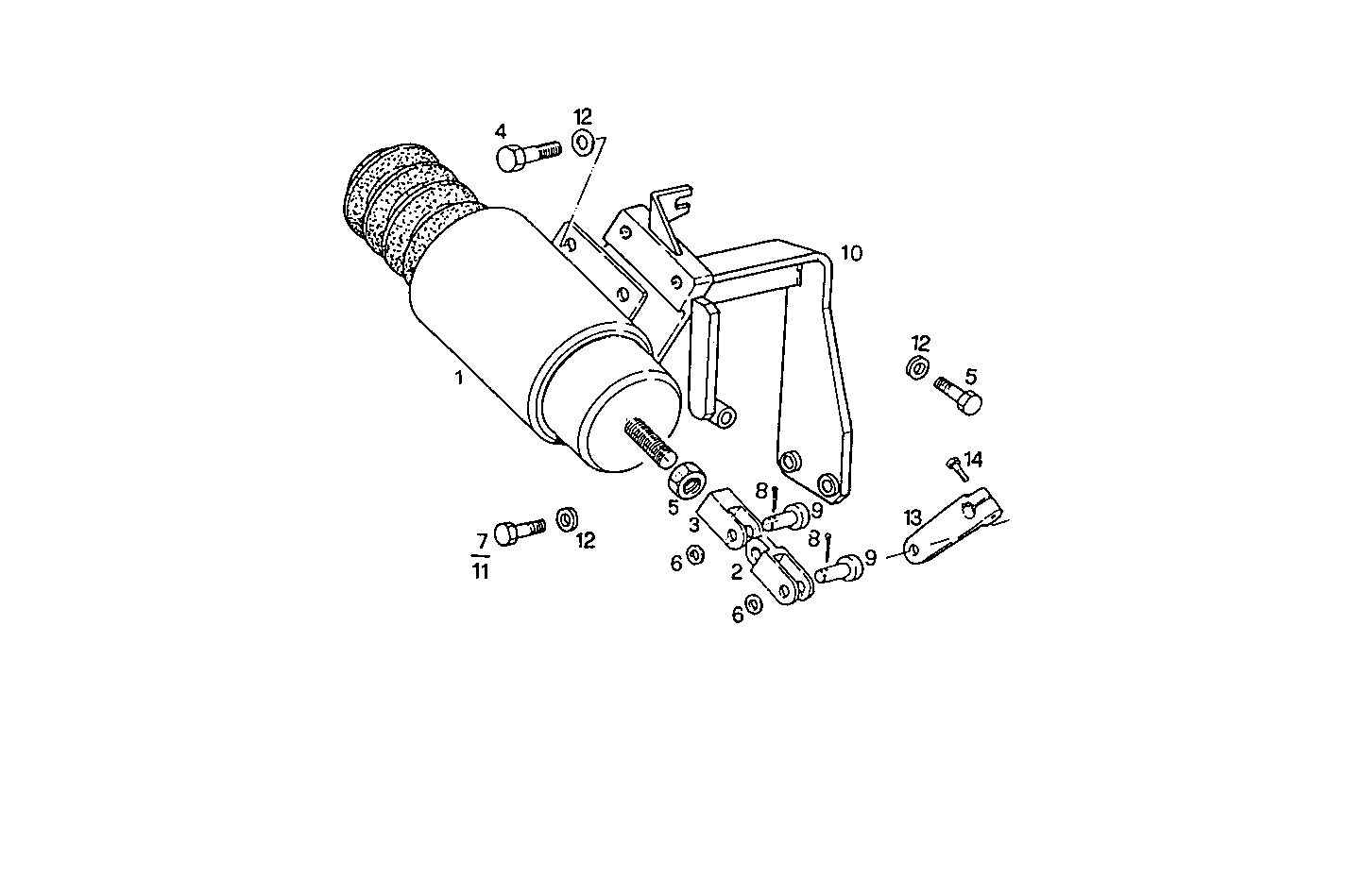

5650.036/01 ELECTRIC STOP ENGINE

Iveco/FPT ELECTRIC STOP ENGINE

Item Part number Description
1 8105568 SOLENOID
2 8108833 CLEVIS
3 8109159 CLEVIS M6X40
4 16603624 HEXAGON BOLT M6X16 MM (8.8)
5 15896211 HEXAGON NUT M6
6 17094504 WASHER Ø5,3X10 MM
7 16603424 SCREW M6X10
8 16852501 SPLIT PIN Ø1,6X12 MM
9 17718411 PIN Ø5 MM
10 8006296 SUPPORT
11 16689624 HEXAGON BOLT M6X40 MM (8.8)
12 17088474 WASHER Ø6X12 MM
13 8110753 LEVER
14 16602024 SCREW M5X12 MM (8.8)
