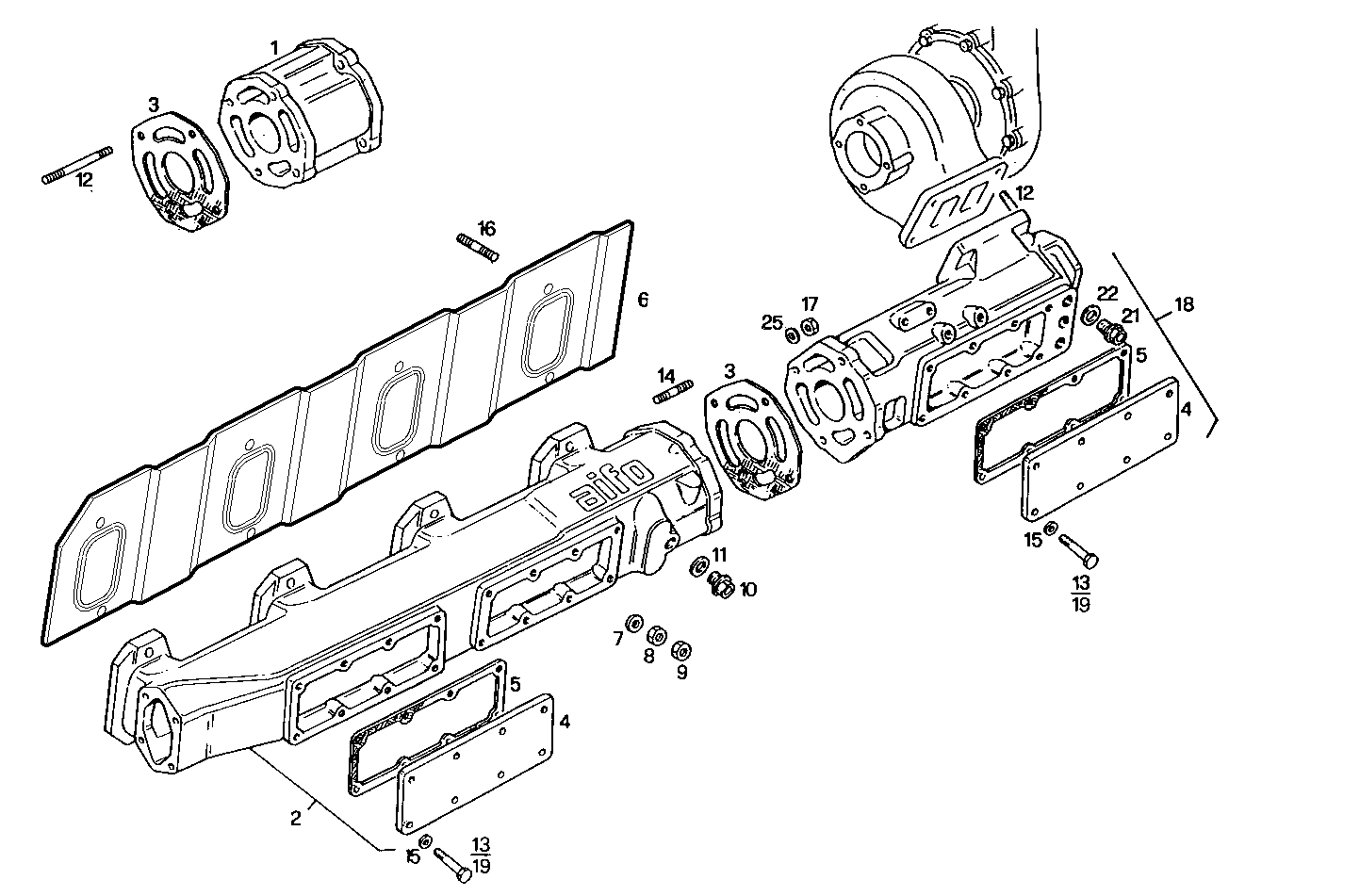

| Item |
Part number |
Description |
|
1 |
8105900 |
SPACING BAR |
|
2 |
8105559 |
COOLED EXHAUST MANIF. ASSY |
|
3 |
8009455 |
GASKET |
|
4 |
8029817 |
COVER |
|
5 |
8026163 |
GASKET |
|
6 |
4836361 |
EXH. MANIFOLD GKT |
|
7 |
16665604 |
WASHER Ø10X20 MM |
|
8 |
17038121 |
HEXAGON NUT M10 |
|
9 |
16979731 |
NUT M10X1,25 |
|
10 |
16992211 |
THREADED PLUG M12X1,5 |
|
11 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
12 |
13449830 |
STUD M10X1,25X35 MM |
|
13 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
14 |
13552630 |
STUD M12X24X40 |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
17038621 |
NUT M12 |
|
18 |
8110665 |
SPACING BAR |
|
19 |
16043521 |
SCREW M8X22 |
|
21 |
16992540 |
PLUG M18X1,5 |
|
22 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
25 |
16665704 |
WASHER Ø12X24X2,5 MM |
