8281SRM50.31A002

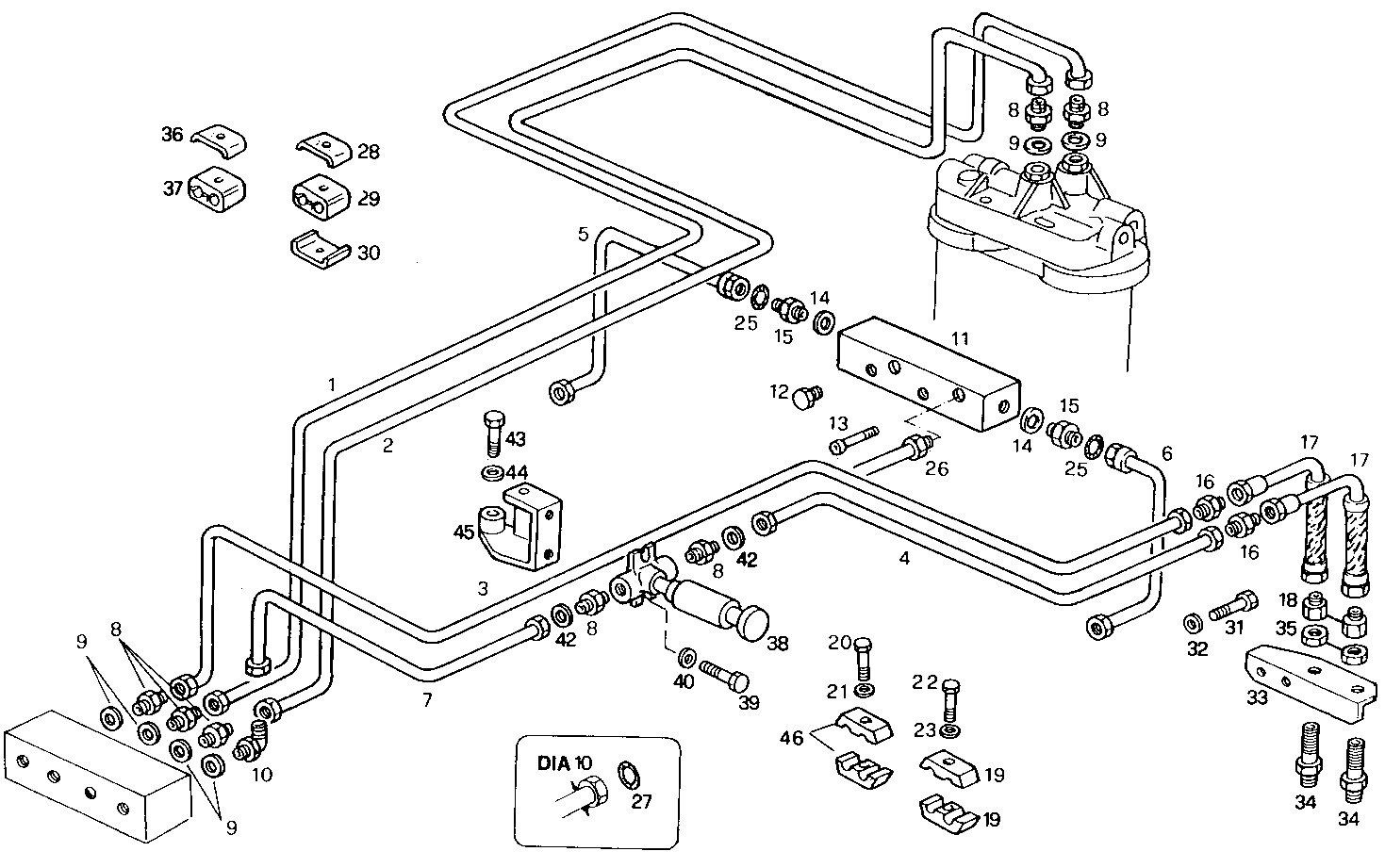

2030.153/02 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8028230 FUEL LINE
2 8028231 FUEL LINE
3 8025125 FUEL LINE
4 8028232 FUEL LINE
5 8025123 FUEL LINE RIGHT
6 8025122 FUEL LINE LEFT
7 8028233 FUEL LINE
8 16500214 THREADED UNION M14X1,5/M16X1,5
9 4858608 SEAL GASKET dia.14x19,5x1,5
10 8025927 ELBOW COUPLING
11 8018178 DISTRIBUTOR
12 16992311 LOCK PLUG M14X1,5
13 16991224 SCREW
14 4858606 GASKET Ø10X14X1 MM
15 4864079 SCREW CONNECTOR M10X1
16 8112283 PIPE SOCKET
17 8112285 FUEL LINE
18 8111284 PIPE SOCKET
19 8010505 CLAMP Ø16 MM
20 16603924 HEXAGON BOLT M6X30 MM
21 17088974 SPRING WASHER Ø6X18X1,4 MM
22 16605824 HEXAGON BOLT M8X35 MM
23 17094914 WASHER 8x16
24 17037931 HEXAGON NUT M8X1,25
25 8024645 O-RING Ø4 MM
26 8025124 FUEL LINE
27 8024646 O-RING Ø6 MM
28 4644288 CLIP
29 4871771 RUBBER LUG
30 4644289 CLIP
31 15970521 HEXAGON BOLT M10X20 MM
32 17090474 SPRING WASHER Ø10X27 MM SP=2,5
33 8026306 RETAINER
34 8011138 PIPE SOCKET 1/2''/M16X1,5
35 16508811 NUT M16X1,5
36 4641551 CLAMP
37 4761451 RUBBER PAD
38 4797319 HAND PUMP ASSY
39 10902621 SCREW M6X25 MM
40 11351379 PLATE
42 98474308 SEAL GASKET Ø14X22 MM
43 15540321 HEXAGON BOLT M12X1,25X25 MM
44 17091074 WASHER Ø12X24X2,8 MM
45 8008219 RETAINER
