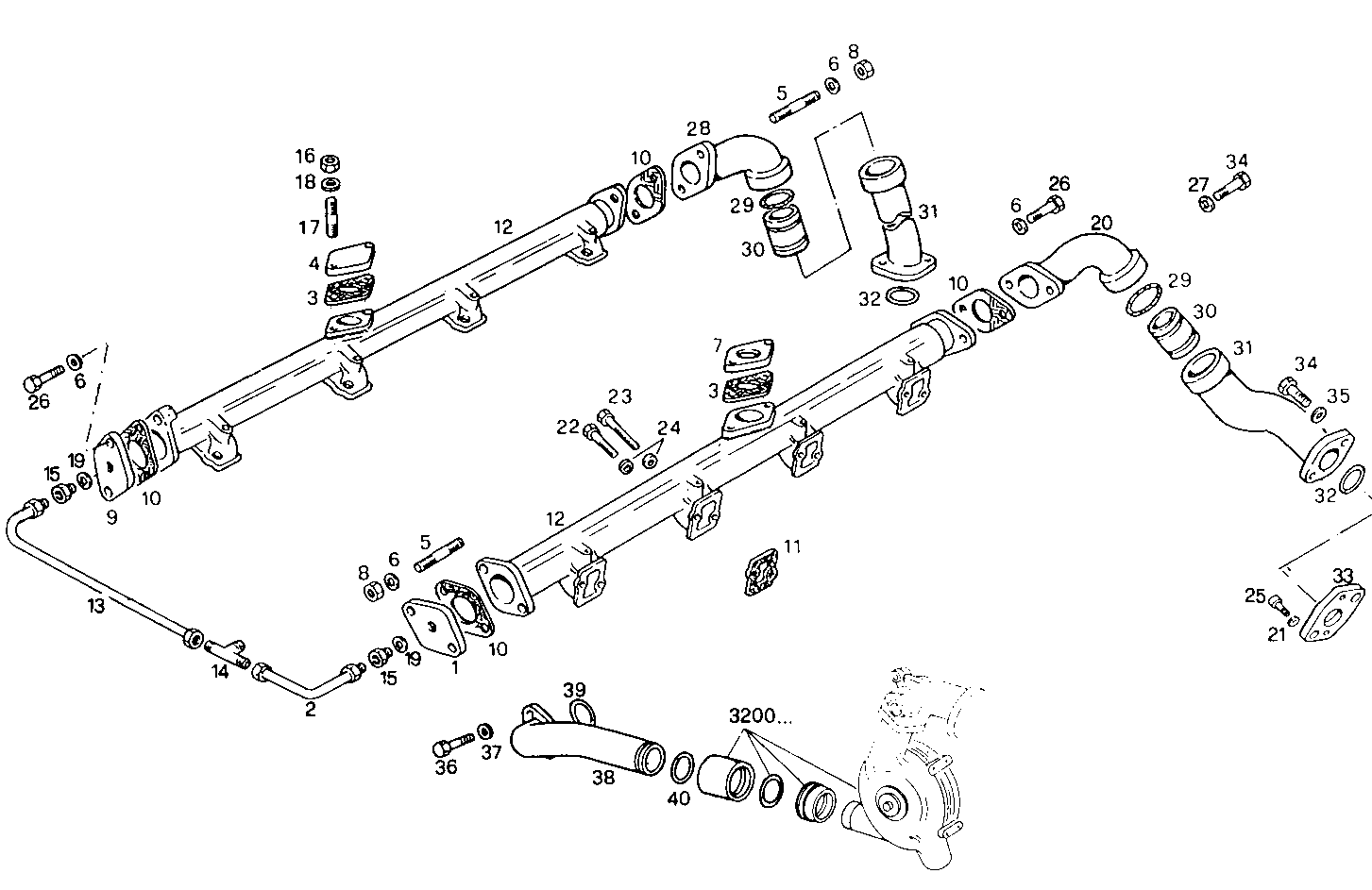

| Item |
Part number |
Description |
|
1 |
8112000 |
COVER |
|
2 |
8007685 |
WATER PIPE |
|
3 |
4863540 |
GASKET |
|
4 |
4721125 |
COVER |
|
5 |
13546321 |
STUD M10X25 MM |
|
6 |
17090274 |
WASHER Ø10X20 MM |
|
7 |
8026542 |
COVER |
|
8 |
17038221 |
HEXAGON NUT M10 |
|
9 |
4721119 |
COVER |
|
10 |
4863528 |
GASKET |
|
11 |
98418857 |
FLAT ENGINE GASKET |
|
12 |
4717500 |
INTAKE ELBOW |
|
13 |
8028258 |
WATER PIPE |
|
14 |
8112120 |
PIPE SOCKET |
|
15 |
16500114 |
THREADED UNION M12X1,5 - M14X1,5 |
|
16 |
17037931 |
HEXAGON NUT M8X1,25 |
|
17 |
16746724 |
STUD M8X25 MM |
|
18 |
17089574 |
WASHER Ø8X16 MM |
|
19 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
20 |
8007400 |
WATER PIPE |
|
21 |
17798274 |
SPRING WASHER Ø8,2X14,9 MM |
|
22 |
16606824 |
HEXAGON BOLT M8X100 MM |
|
23 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
24 |
17094914 |
WASHER 8x16 |
|
25 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
26 |
11306921 |
SCREW M10X1,25X30 |
|
27 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
28 |
8112004 |
WATER PIPE |
|
29 |
17289681 |
O-RING Ø44 MM SP=3,53 MM |
|
30 |
8112495 |
CONNECTOR SLEEVE |
|
31 |
8110568 |
WATER PIPE |
|
33 |
8110945 |
FLANGE |
|
34 |
16605924 |
SCREW M8X40 MM |
|
35 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
36 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
37 |
17094924 |
WASHER Ø8X16 MM |
|
38 |
8024504 |
WATER PIPE |
|
39 |
17283681 |
O-RING Ø45,6 MM SP=2,62 MM |
|
40 |
17289781 |
O-RING Ø47,22 MM SP=3,55 MM |
