8281SRM50.31A002

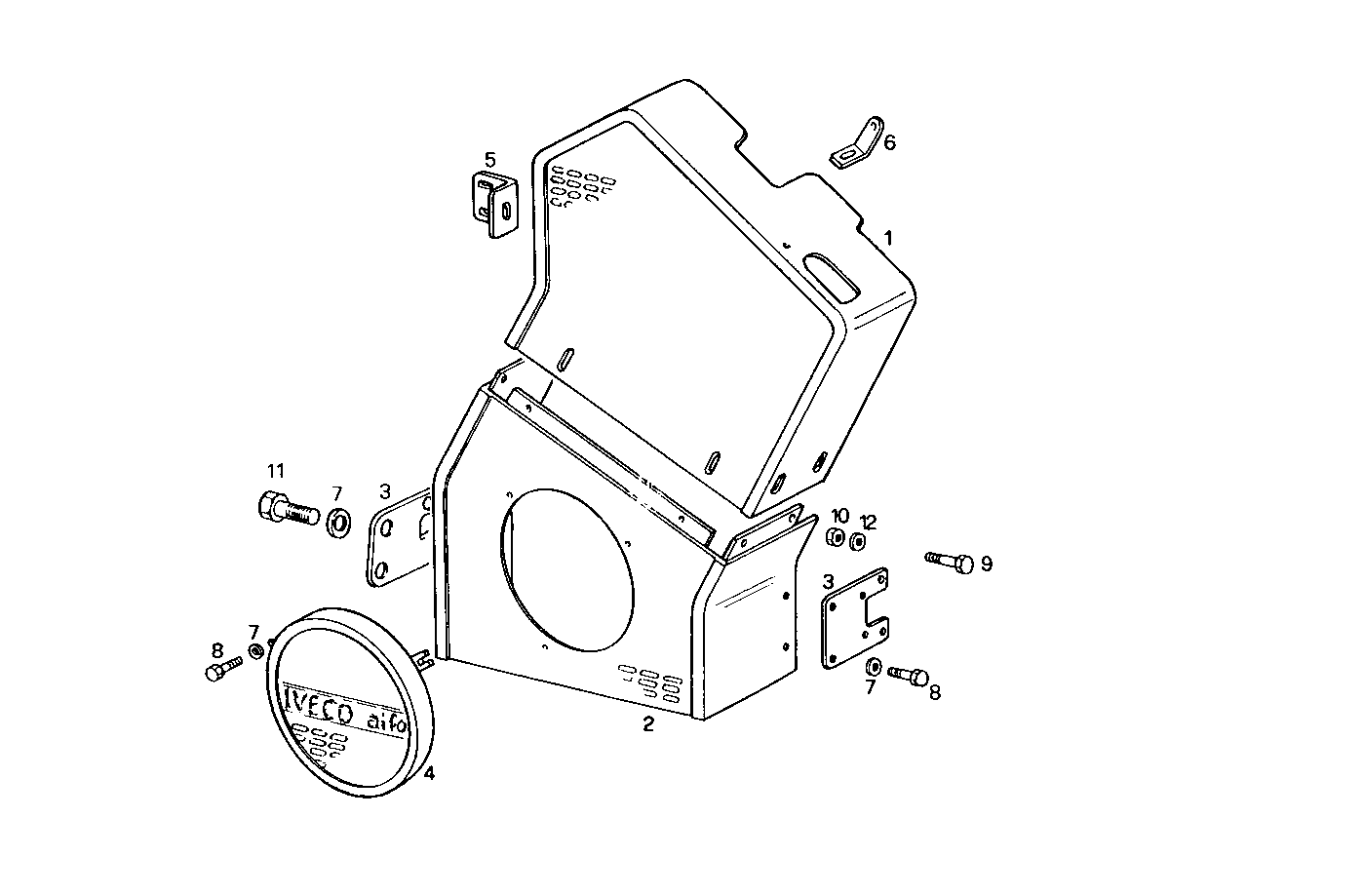

5770.034 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8028356 | PROTECTION |
| 2 | 8025756 | PROTECTION |
| 3 | 8025762 | RETAINER |
| 4 | 8022086 | COVER |
| 5 | 8028436 | RETAINER |
| 6 | 8028435 | RETAINER |
| 7 | 17089421 | WASHER |
| 8 | 16605424 | SCREW M8X16 MM (8.8) |
| 9 | 15970521 | HEXAGON BOLT M10X20 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 16605524 | HEXAGON BOLT M8X20 MM |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
