8281SRM50.32

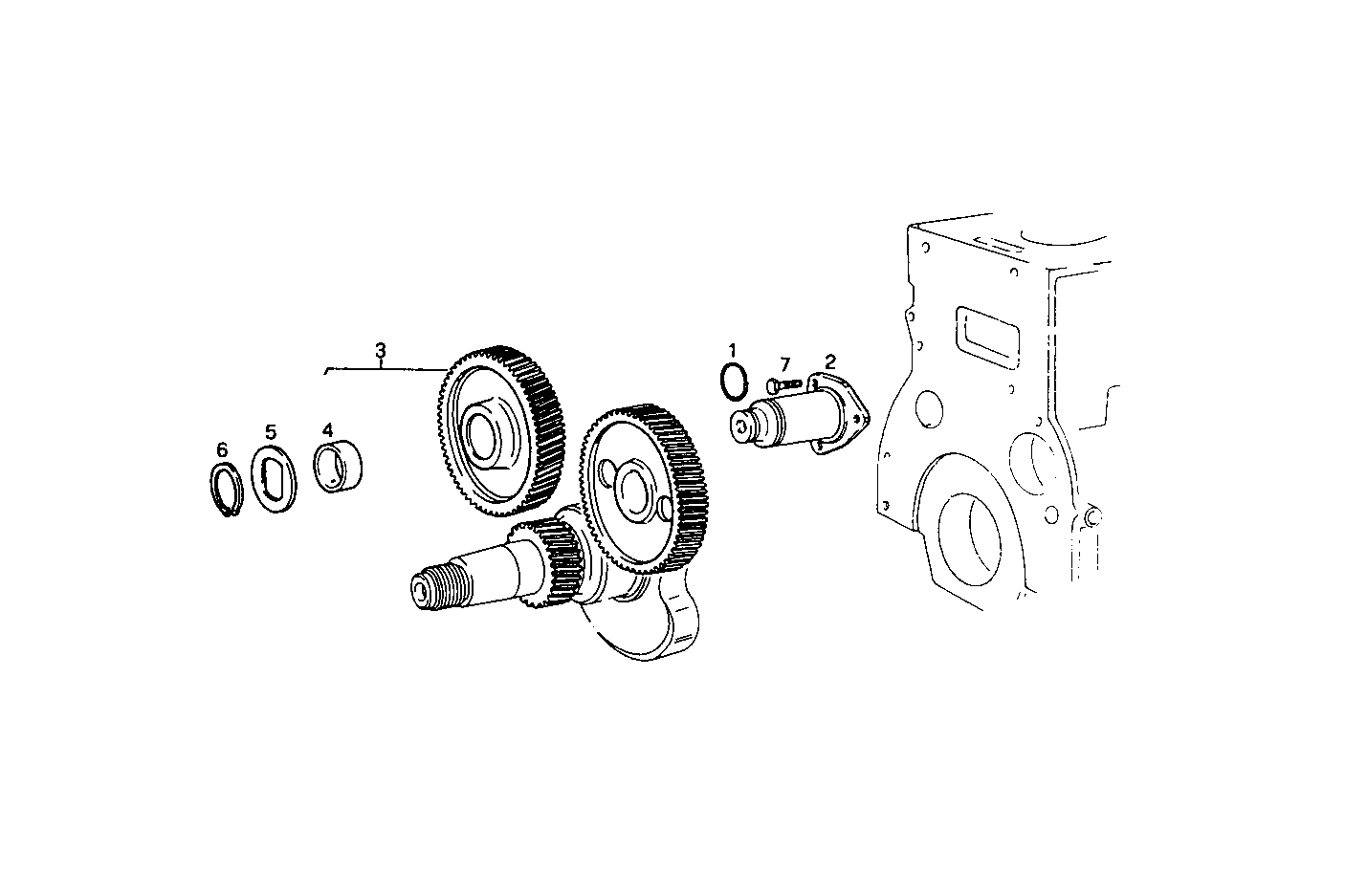

1000.002 GEAR DRIVE [D-10-00] [D-10-00]
| Item | Part number | Description |
|---|---|---|
| 1 | 4667452 | SUPPORT RING |
| 2 | 4769416 | GUIDE BOLT |
| 3 | 4769414 | CAMSHAFT PINION ASSY |
| 4 | 4769418 | BUSH |
| 5 | 4769419 | WASHER |
| 6 | 4769420 | CIRCLIP |
| 7 | 16321021 | SCREW M8X25 |
