8281SRM50.32

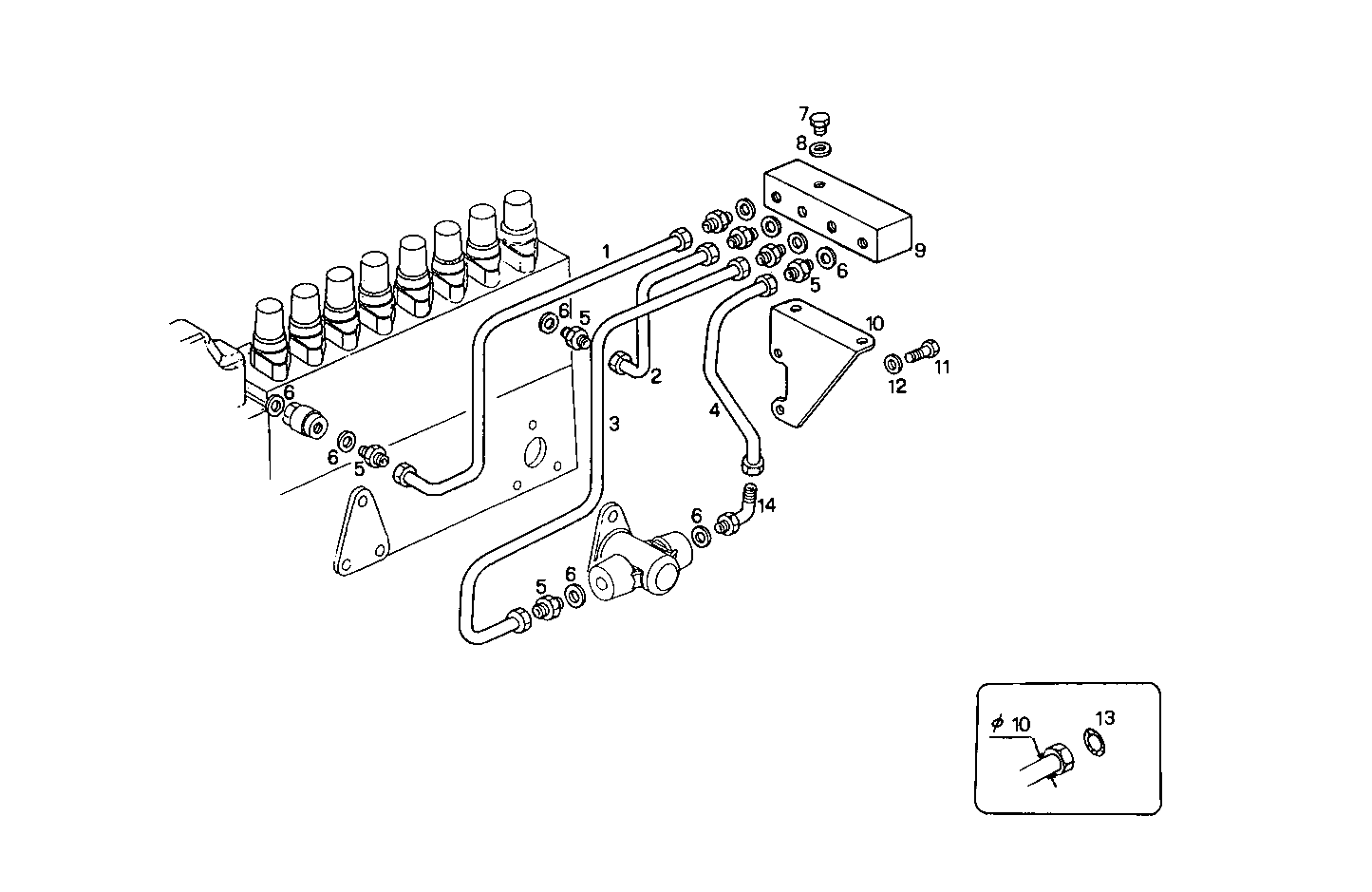

2030.122/01 FUEL LINES [1D-01-04] [1D-01-04]
| Item | Part number | Description |
|---|---|---|
| 1 | 8025734 | INJECTION LINE |
| 2 | 8029611 | INJECTION LINE |
| 3 | 8025706 | INJECTION LINE |
| 4 | 8025705 | INJECTION LINE |
| 5 | 16500214 | THREADED UNION M14X1,5/M16X1,5 |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 16992111 | THREADED PLUG M10X1 |
| 8 | 4858606 | GASKET Ø10X14X1 MM |
| 9 | 8025709 | DISTRIBUTOR |
| 10 | 8025710 | RETAINER |
| 11 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 12 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 13 | 8024646 | O-RING Ø6 MM |
| 14 | 8025927 | ELBOW COUPLING |
