8281SRM70.10

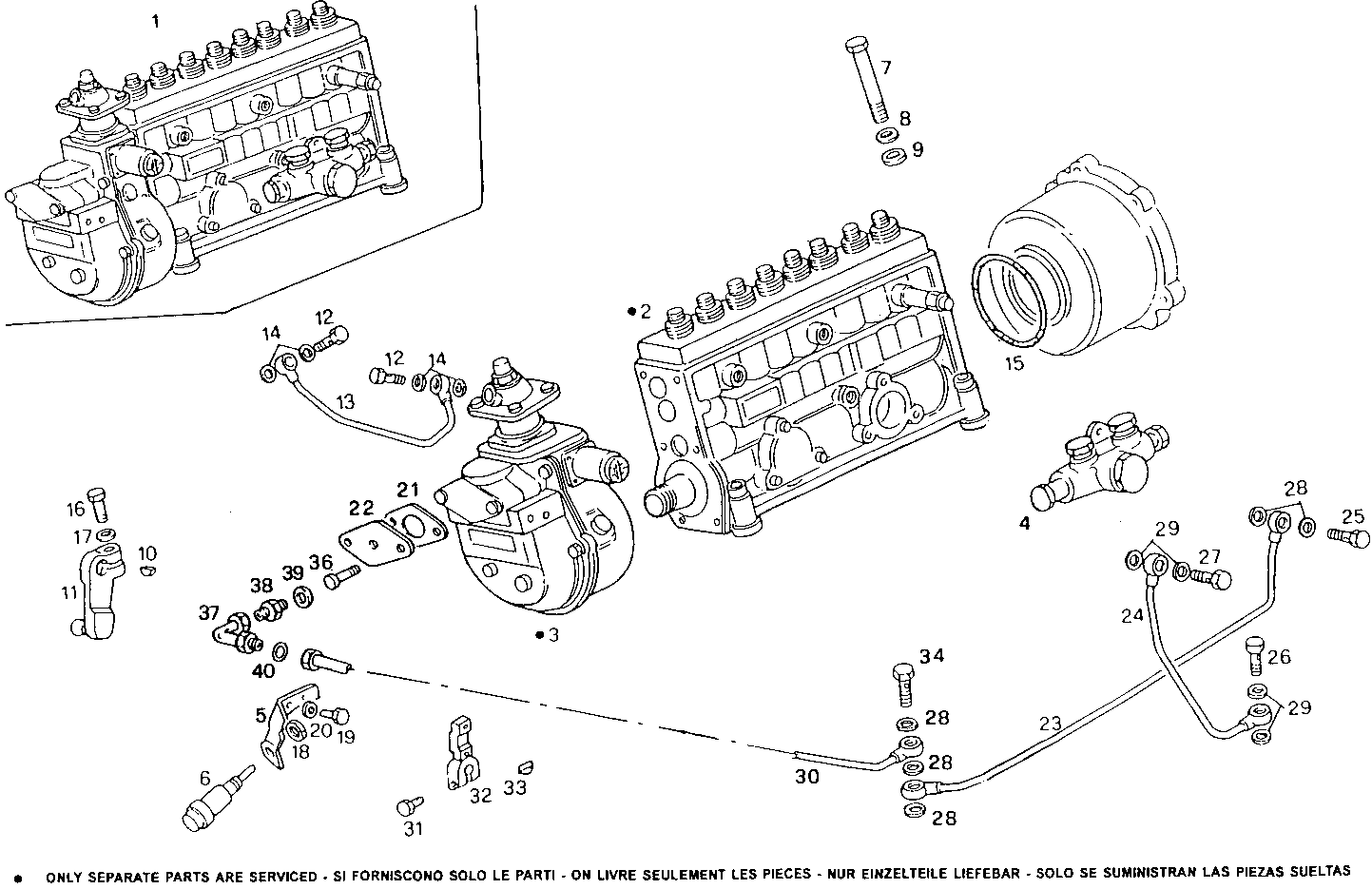

1400.033 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8007932 INLINE INJECT.PUMP ASSY W.ALTECNA
4 8121438 FUEL PUMP ASSY BOSCH
5 771369 RETAINER
6 4746917 THRUST ROD
7 15971530 SCREW
8 11198379 SPRING WASHER Ø10X20 MM SP=2,6
9 756671 WASHER
10 8101048 KEY 3X5X12,5
11 8108826 LEVER
12 4864082 BANJO BOLT M12X1,5X25 MM
13 8014554 AIR PIPE/DUCT
14 98474306 WASHER Ø12X20 MM SP=1,9 MM
15 17291081 O-RING Ø88,49X3,53 MM
16 10977821 HEXAGON BOLT M5X16 MM
17 10571471 WASHER Ø5X9,2X1,2 MM
18 16979431 NUT M8
19 10902121 HEXAGON BOLT M6X14 MM
20 10516471 SPRING WASHER Ø6 MM
21 8111233 GASKET
22 8018382 COVER
23 98438719 OIL LINE
24 8015443 OIL LINE
25 4864083 SCREW CONNECTOR M14X1,5X30 MM
26 4864080 SCREW CONNECTOR M10X1,25
27 1390713 SCREW CONNECTOR M10X1
28 98474308 SEAL GASKET Ø14X22 MM
29 98474305 WASHER Ø10X17 MM SP=2,3
30 8018383 OIL LINE
31 10902621 SCREW M6X25 MM
32 4679073 LEVER
33 10205720 KEY 3X5 MM
34 61320123 SCREW CONNECTOR
36 14433121 CYLIND-HEAD SCREW M6X18 MM
37 16504011 PIPE SOCKET
38 16500214 THREADED UNION M14X1,5/M16X1,5
39 4858608 SEAL GASKET dia.14x19,5x1,5
40 8024646 O-RING Ø6 MM
