8281SRM70.10

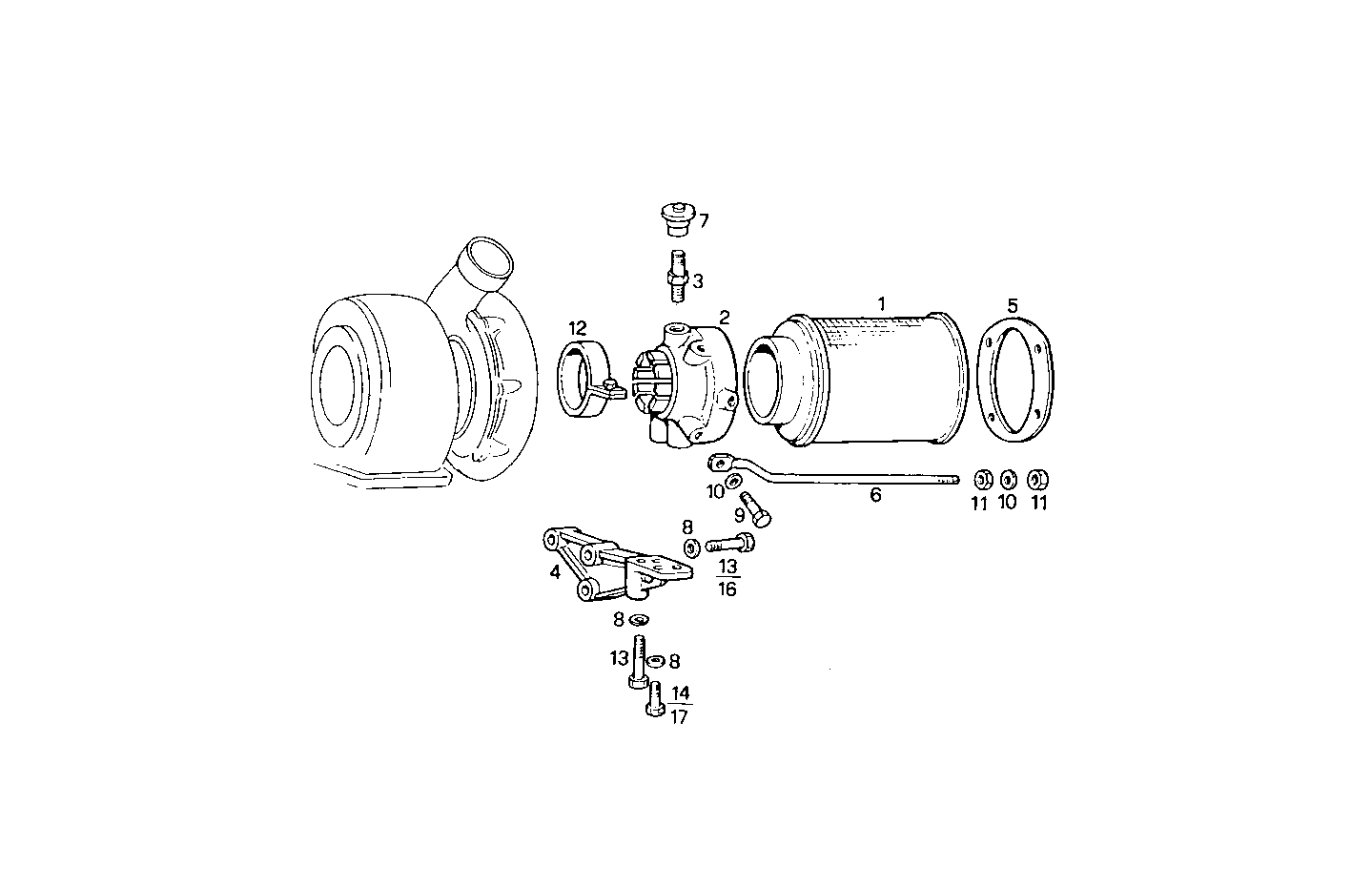

2210.012 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8105181 AIR CLEANER
2 8114399 AIR MANIFOLD
3 8009522 PIPE SOCKET
4 8113863 SUPPORT
5 8113633 FLANGE
6 8113632 TIE ROD
7 42523023 INDICATOR
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 16603624 HEXAGON BOLT M6X16 MM (8.8)
10 17088474 WASHER Ø6X12 MM
11 17156921 LOCKING NUT M6
12 17765092 CLIP Ø60-80 MM
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 16046021 HEXAGON BOLT M8X140 MM
16 16606024 SCREW M8X45 MM
17 16046221 HEXAGON BOLT M8X1,25X150 MM
