8281SRM70.10

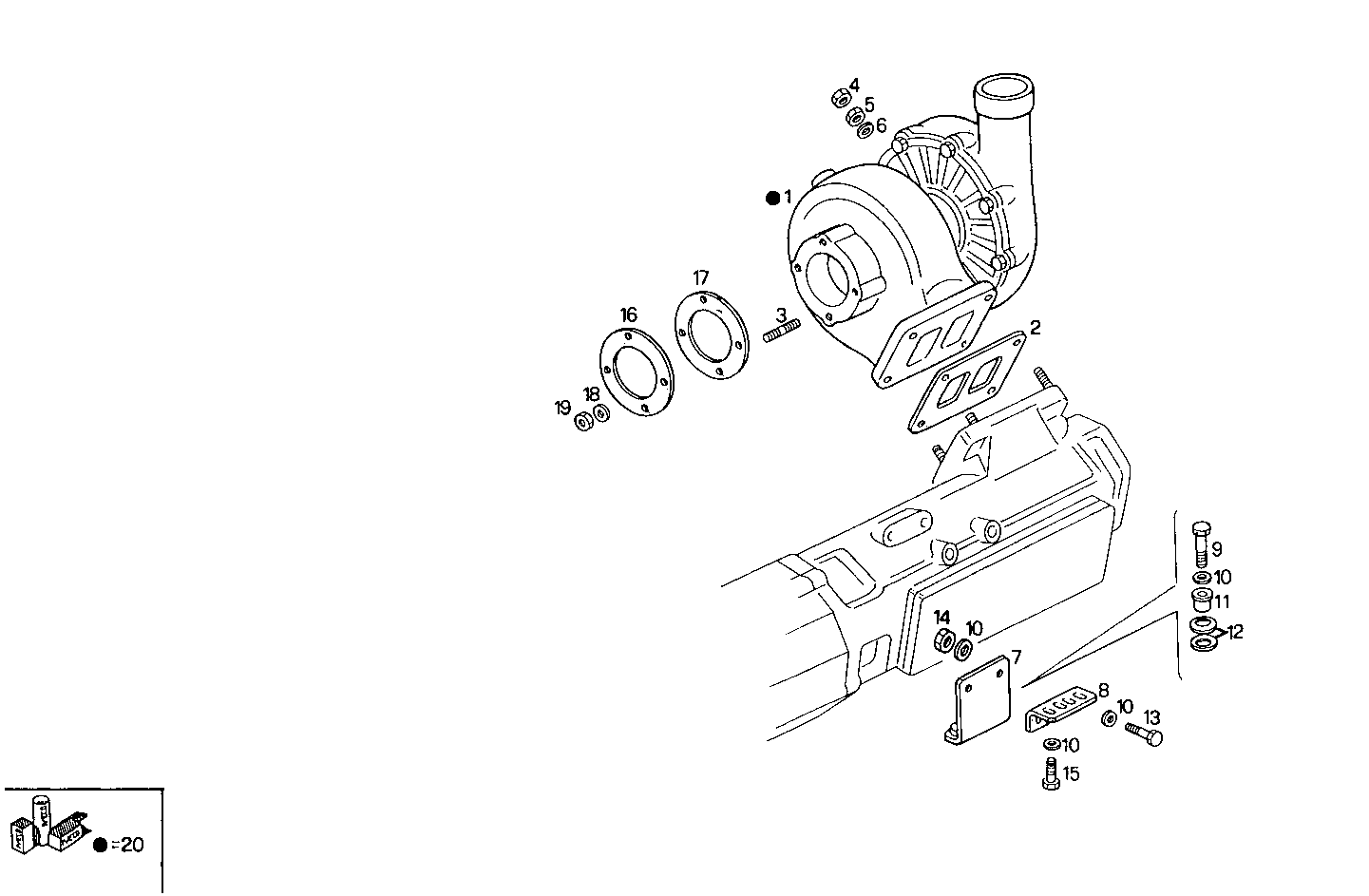

2400.014 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8110516 WATER COOL.TURBOCHARGER ASSY HOLSET
2 8027510 FLAT ENGINE GASKET
3 16729424 STUD M8X1,25X25
4 10791011 HEXAGON NUT M10X1,25
5 17038221 HEXAGON NUT M10
6 10730501 WASHER Ø10,2 MM
7 8112566 RETAINER
8 8112565 RETAINER
9 11607021 SCREW
10 11190579 SPRING WASHER Ø10X20 MM SP=2,3
11 8110050 BUSH
12 8110051 SPRING
13 15004021 HEXAGON BOLT M10X1,25X25 MM
14 12574511 NUT M10X1,25
15 15970521 HEXAGON BOLT M10X20 MM
16 8112750 FLANGE
17 8111833 GASKET
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 17037931 HEXAGON NUT M8X1,25
20 8090770 KIT-TURBOCHARGER
