8281SRM70.10

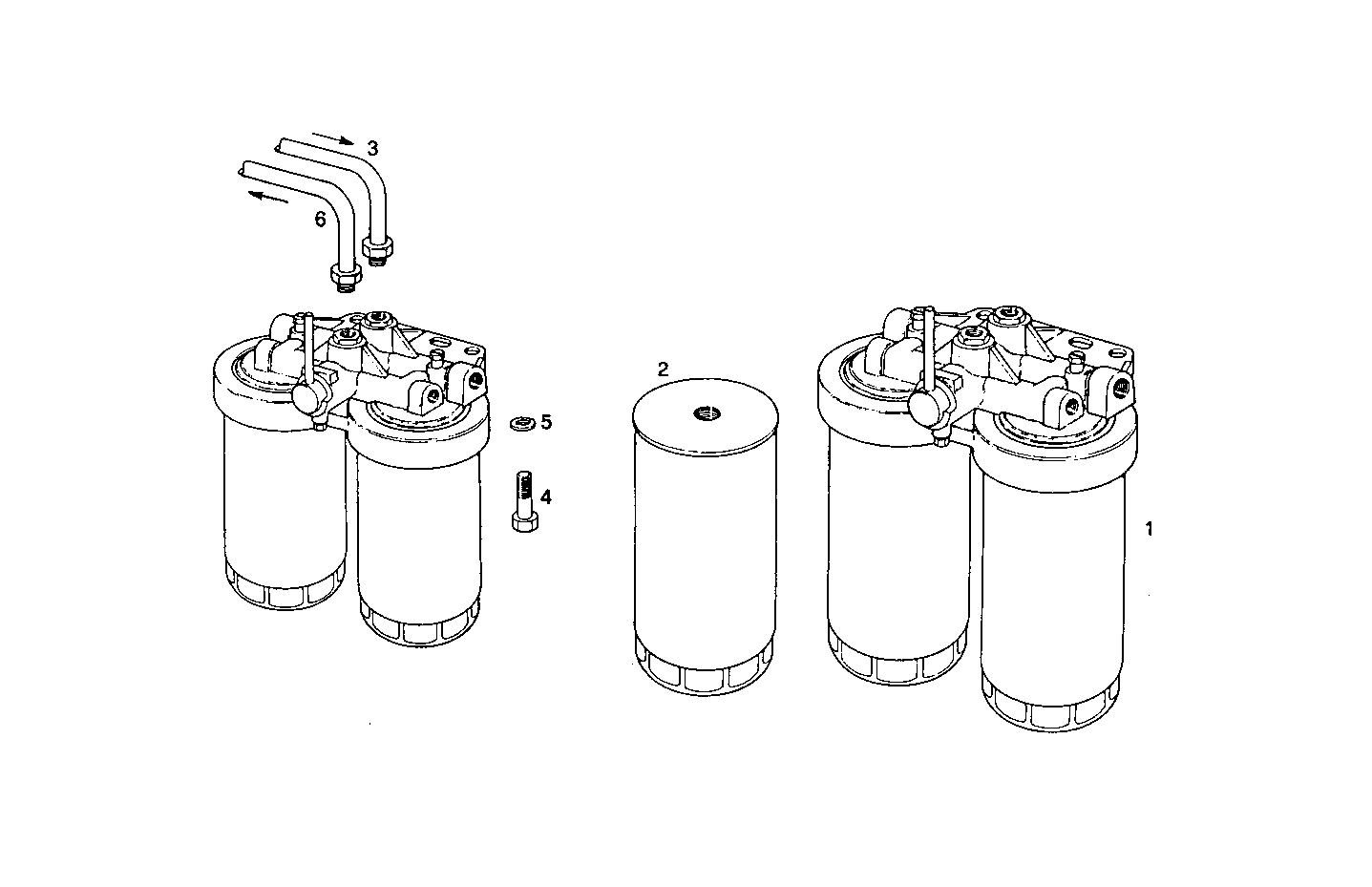

A15010008 DOUBLE FUEL FILTER - removing with engine running

Iveco/FPT DOUBLE FUEL FILTER

Item Part number Description
1 8108315 FUEL FILTER ASSY
2 8106473 FUEL FILTER CARTRIDGE
3 8112072 FUEL LINE
4 11307021 HEXAGON BOLT M10X40 MM
5 11190579 SPRING WASHER Ø10X20 MM SP=2,3
6 8112073 FUEL LINE
