8281SRM70.11

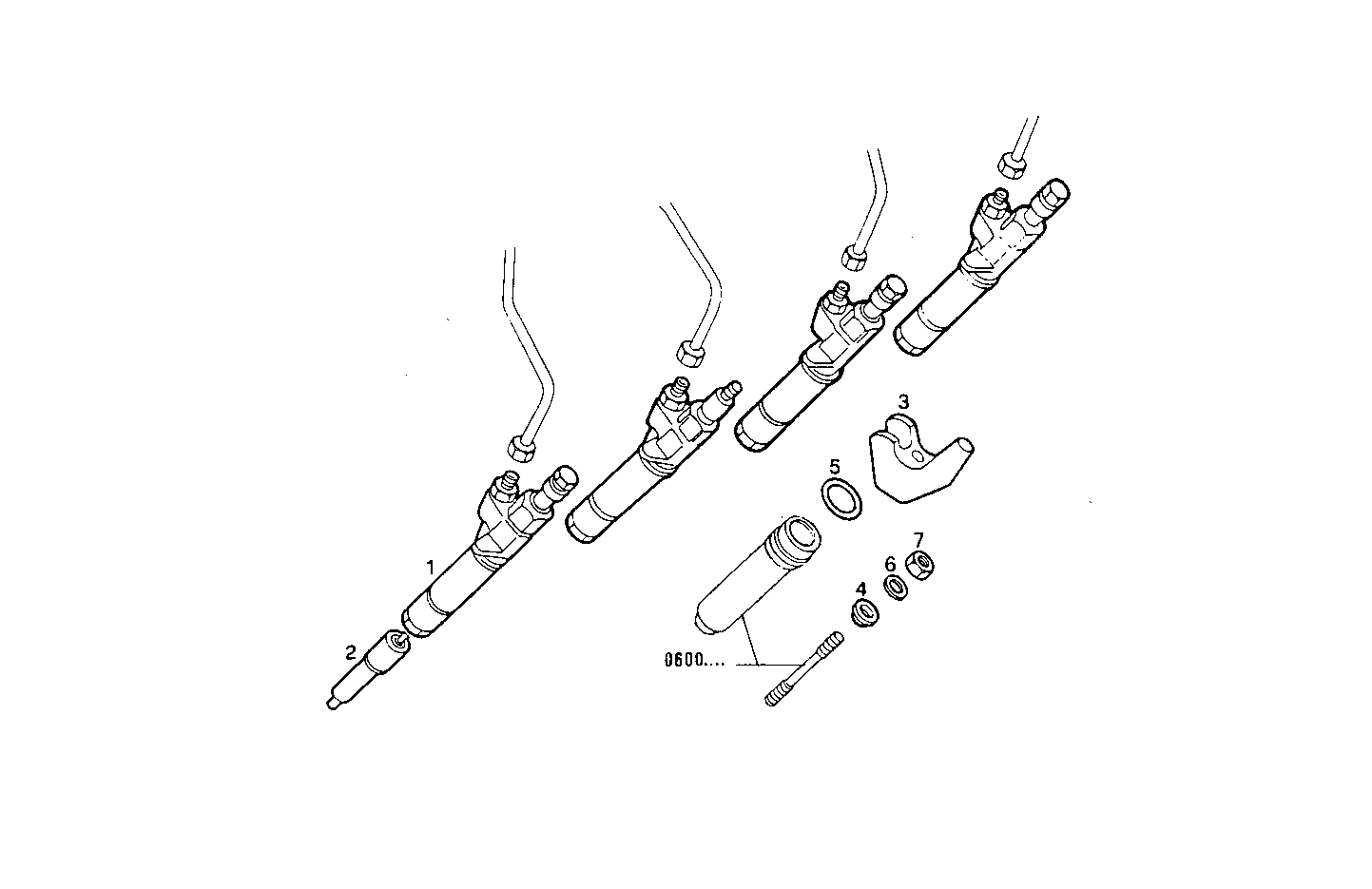

1420.091 INJECTORS [D 05-1995] [from05-1995]
| Item | Part number | Description |
|---|---|---|
| 1 | 8028747 | NOZZLE HOLDER ASSY |
| 2 | 8027286 | FUEL NOZZLE |
| 3 | 4680678 | FASTENING BRACKET |
| 4 | 4700162 | WASHER Ø11,5 MM |
| 5 | 14453481 | O-RING Ø17,17 MM SP=1,78 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 17038221 | HEXAGON NUT M10 |
