8281SRM70.11

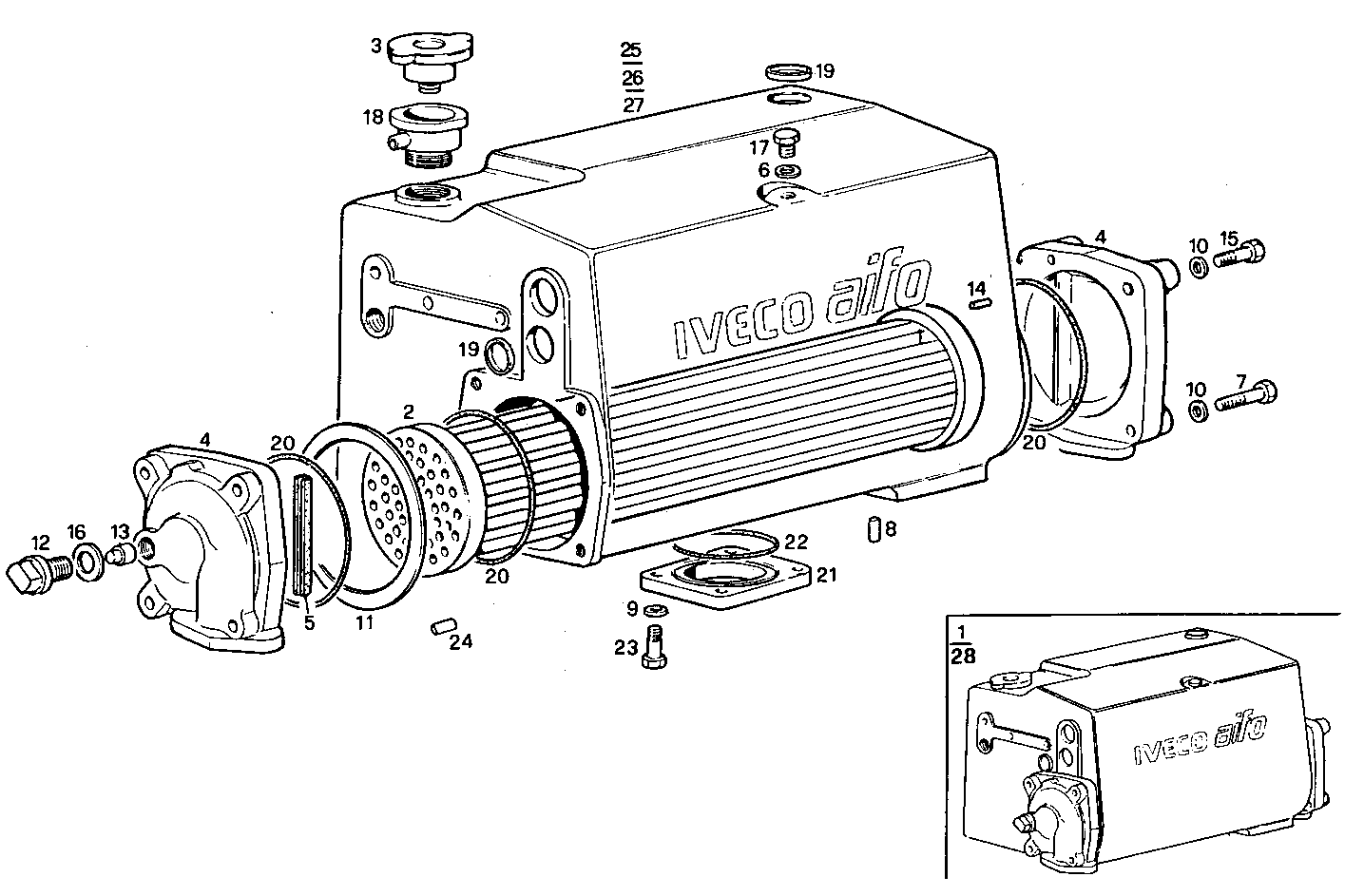

3370.013/01 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8113894 WATER/SEA WATER HEAT EXCH ASSY [up to 08-94]
2 8012070 TUBE STACK
3 4927808 PLUG 0,5 BAR
4 8110977 HEAT EXCHANG.COVER
5 8110978 GASKET
6 4858608 SEAL GASKET dia.14x19,5x1,5
7 16606624 HEXAGON BOLT M8X80 MM
8 17256970 PIN
9 17094914 WASHER 8x16
10 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
11 8110989 SPACING BAR
12 8101771 PLUG M28
13 8101772 SACRIFICAL ANODE Ø20 MM
14 8110971 PIN
15 16605734 HEXAGON BOLT M8X30 MM
16 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
17 16992340 THREADED PLUG M14X1,5
18 4934521 PIPE SOCKET
19 16991370 LOCK PLUG Ø45 MM
20 17293181 O-RING Ø158,30X3,53 MM
21 8104925 FLANGE
22 17290781 O-RING Ø78,97X3,53 MM
24 17253770 PIN Ø4x16 MM
25 8019164 HEAT EXANGER BODY [from 08-94]
26 8012068 HEAT EXANGER BODY [up to 08-94]
27 8113895 HEAT EXANGER BODY [up to 08-92]
28 8019163 WATER/SEA WATER HEAT EXCH ASSY [from 08-94]
