8281SRM70.11

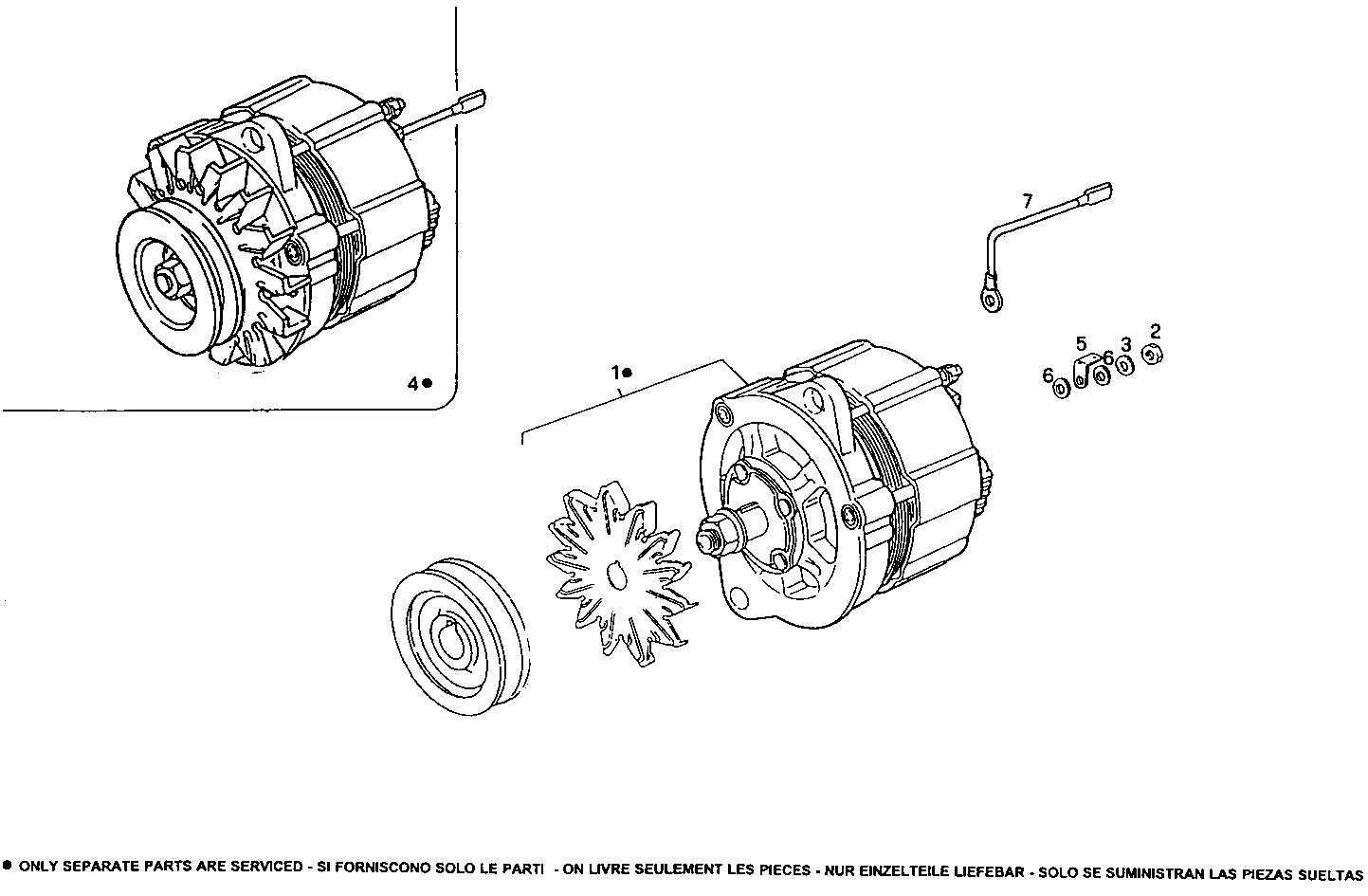

4000.010/01 GENERATOR
Item | Part number | Description |
---|---|---|
1 | 4757193 | ALTERNATOR ASSY BOSCH [up to 05-99] |
2 | 10794011 | HEXAGON NUT M4X0,7 |
3 | 14496201 | WASHER |
4 | 8113541 | ALTERNATOR ASSY |
5 | 12277944 | CONNECTION D+ |
6 | 10615270 | TOOTHED WASHER Ø4,3 MM |
7 | 8105654 | WIRE/CABLE |
