8281SRM70.11

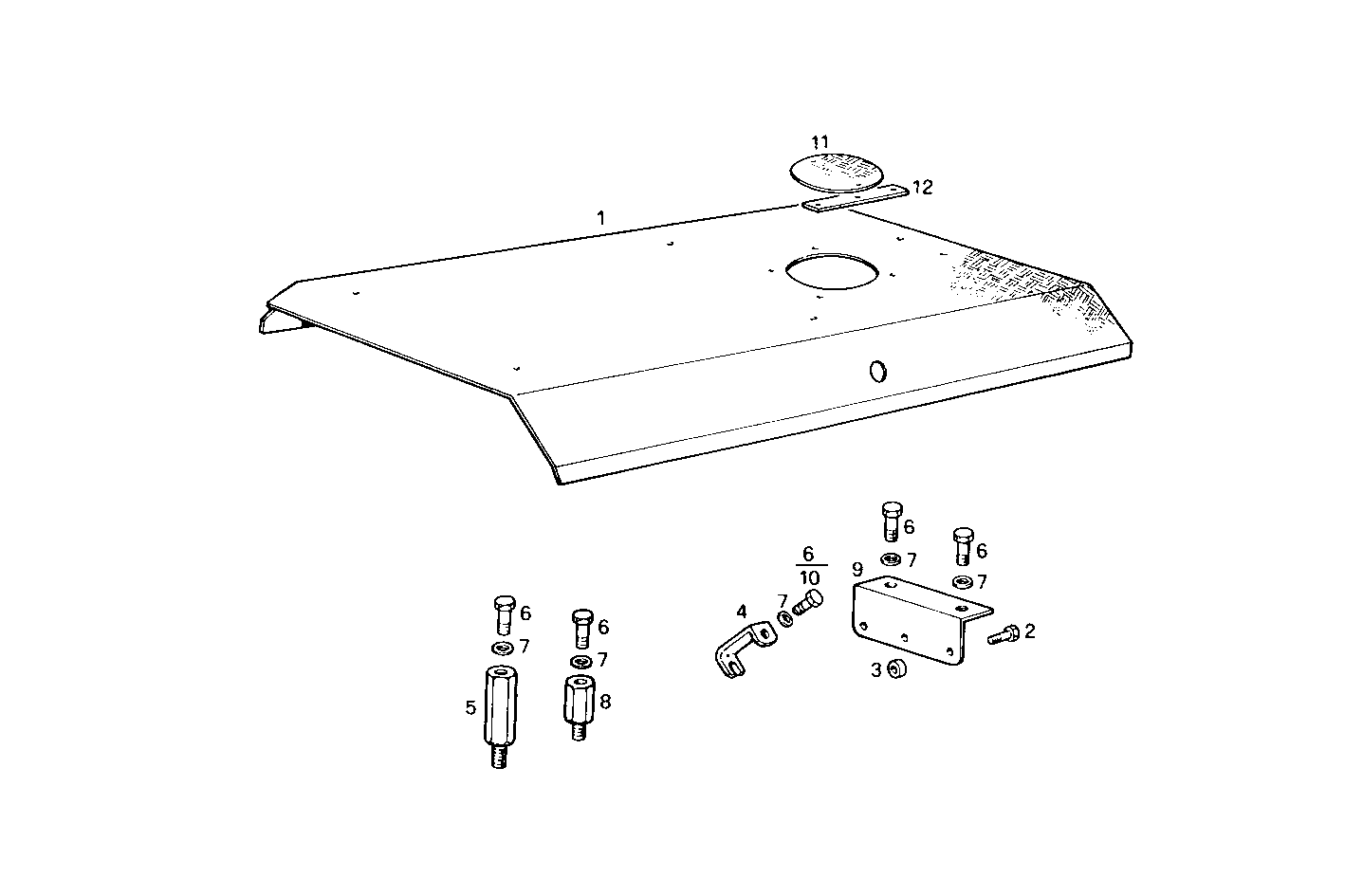

5770.001 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8113677 | PROTECTION |
| 2 | 16606324 | HEXAGON BOLT M8X60 MM |
| 3 | 17816514 | SPACING BAR Ø8,5X18 MM SP=25 MM |
| 4 | 8113803 | RETAINER |
| 5 | 8113802 | SPACING BAR |
| 6 | 15540221 | HEXAGON BOLT M12X1,25X20 MM |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 8113801 | SPACING BAR |
| 9 | 8112752 | RETAINER |
| 10 | 15540021 | HEXAGON BOLT M12X1,25X16 MM |
| 11 | 8006268 | COVER |
| 12 | 8006269 | RETAINER |
