8281SRM70.11

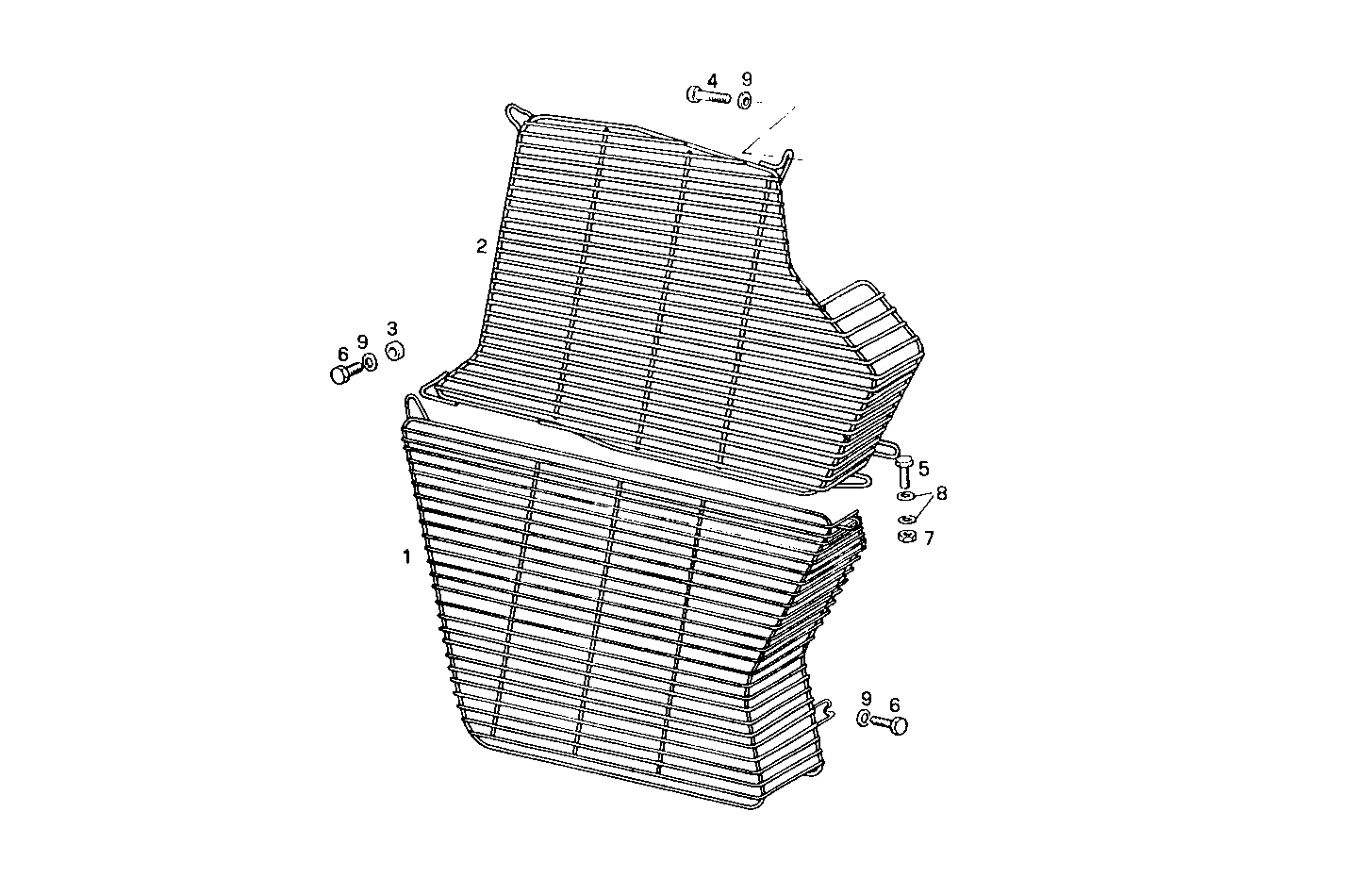

5770.002 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8107554 | PROTECTION |
| 2 | 8107382 | PROTECTION |
| 3 | 4932695 | WASHER |
| 4 | 16043424 | HEXAGON BOLT M8X20 MM |
| 5 | 16045821 | HEXAGON BOLT M8X130 MM |
| 6 | 16043621 | HEXAGON BOLT M8X25 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 12646701 | WASHER Ø8X20 MM |
| 9 | 11193979 | SPRING WASHER Ø8X22 MM |
