8281SRM70.11

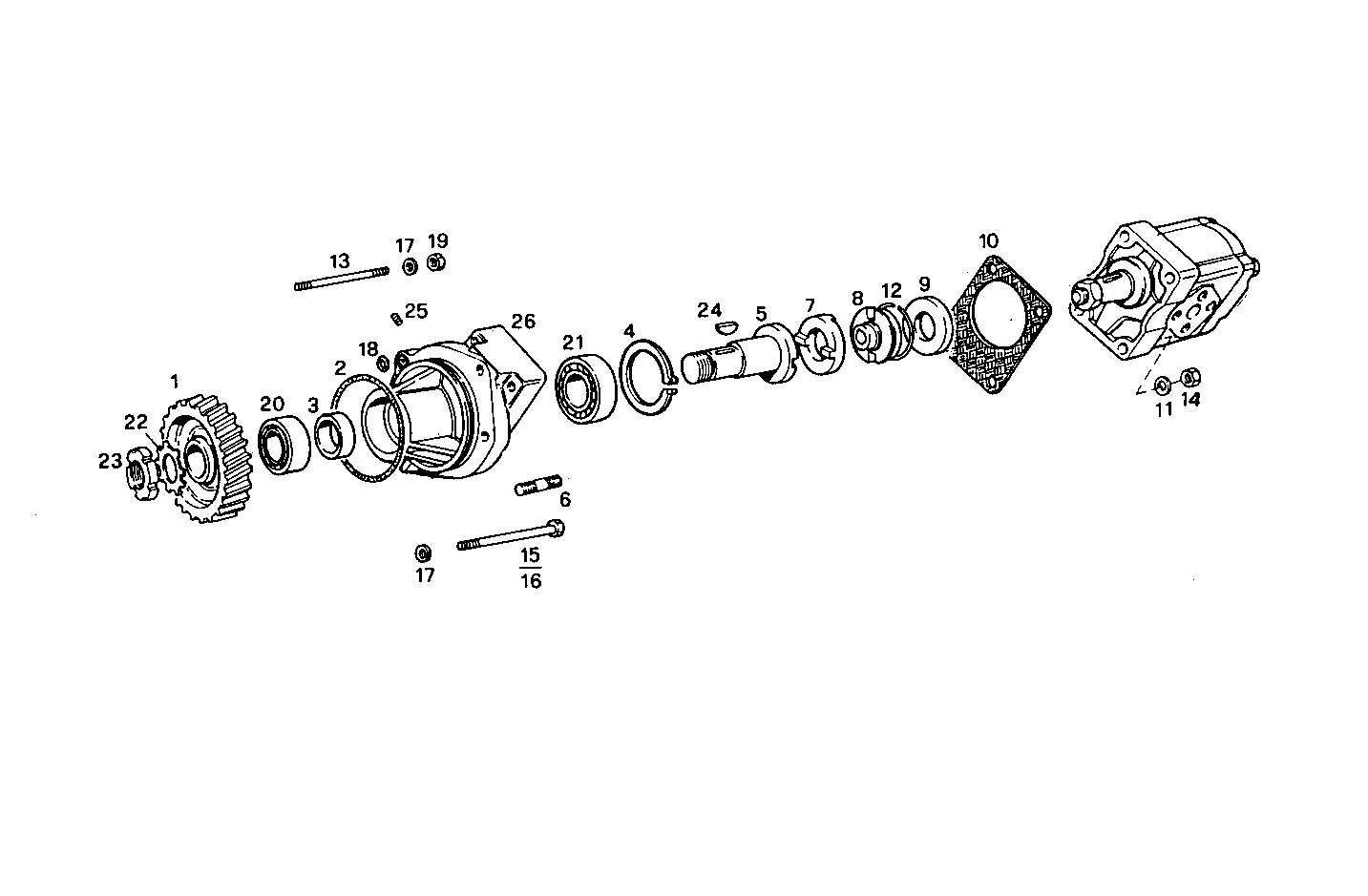

A09080017 ARRANGED FOR HYDRAULIC PUMP - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 4671828 | DRIVE GEAR |
| 2 | 17291781 | O-RING Ø110,72 MM SP=3,53 |
| 3 | 8013559 | SPACING BAR |
| 4 | 16873973 | CIRCLIP |
| 5 | 8013530 | SHAFT |
| 6 | 16745224 | STUD M6X12X30 |
| 7 | 4526899 | RING |
| 8 | 4547495 | CONNECTOR SLEEVE |
| 9 | 4677821 | RING |
| 10 | 4863489 | FLAT ENGINE GASKET |
| 11 | 17088474 | WASHER Ø6X12 MM |
| 12 | 4526900 | CIRCLIP |
| 13 | 13546321 | STUD M10X25 MM |
| 14 | 17037821 | HEXAGON NUT M6X1 |
| 15 | 15972221 | SCREW M10X1,25X120 |
| 16 | 15972821 | HEXAGON BOLT M10X150 MM |
| 17 | 17090174 | SPRING WASHER Ø10X20 MM |
| 18 | 17277981 | O-RING 1,78x9,25 |
| 19 | 17038221 | HEXAGON NUT M10 |
| 20 | 8013560 | DRIVE BEARING |
| 21 | 8013561 | DRIVE BEARING |
| 22 | 8013562 | WASHER |
| 23 | 8013563 | FASTENING RING |
| 24 | 17224220 | KEY |
| 25 | 17436774 | THREADED INSERT M6 |
| 26 | 8014748 | SUPPORT |
