8281SRM70.12

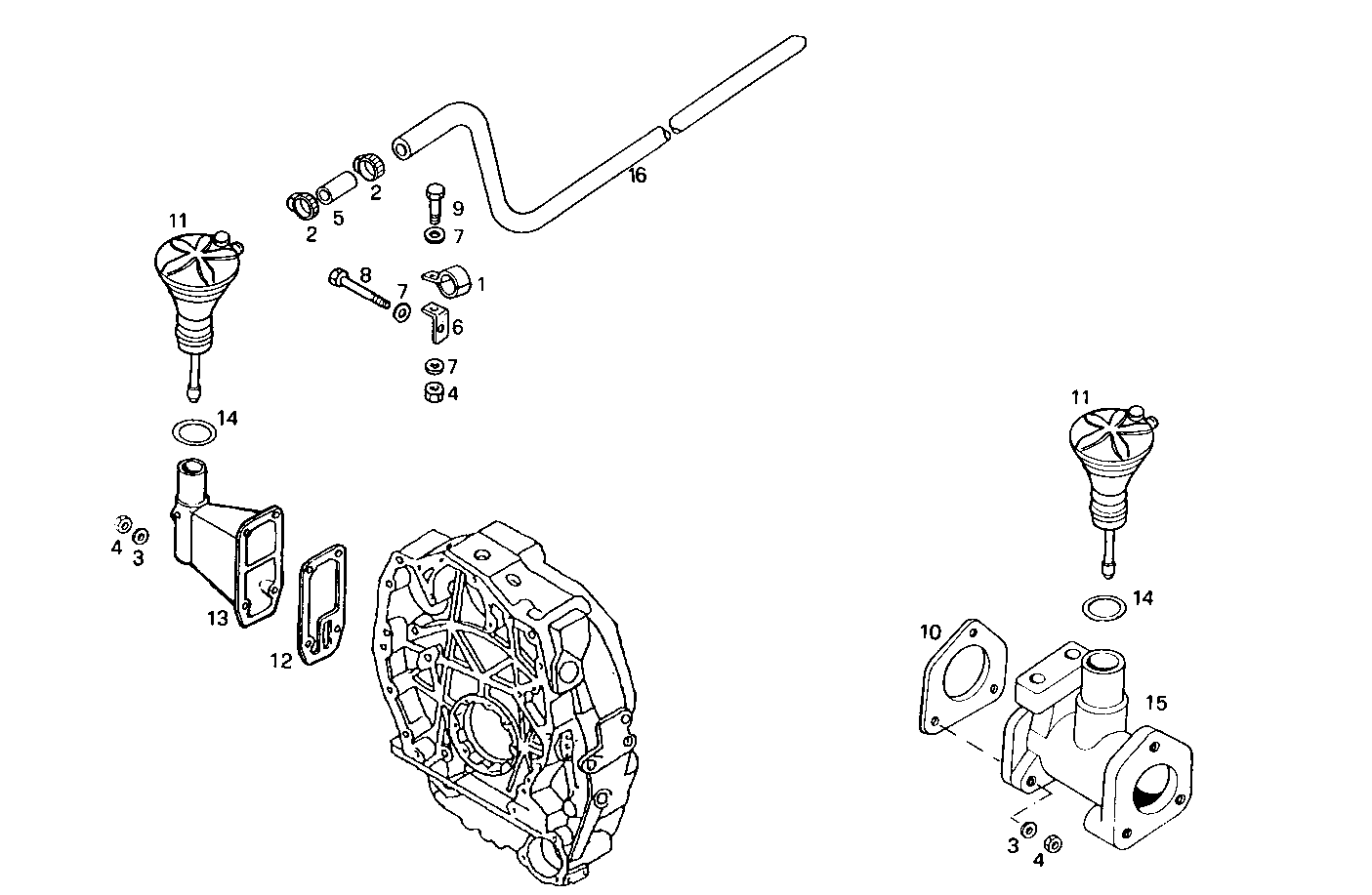

0450.112 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 8111710 | CLIP |
| 2 | 17764693 | CLIP Ø25/40 MM |
| 3 | 17094914 | WASHER 8x16 |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 61321610 | RUBBER SLEEVE |
| 6 | 8026284 | RETAINER |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 10 | 4863490 | FLAT ENGINE GASKET |
| 11 | 61320629 | BREATHER |
| 12 | 4863495 | FLAT ENGINE GASKET |
| 13 | 99465199 | SUPPORT RIGHT |
| 14 | 98438032 | O-RING |
| 15 | 8025353 | SUPPORT |
| 16 | 8031346 | BREATHER PIPE |
