8281SRM70.12

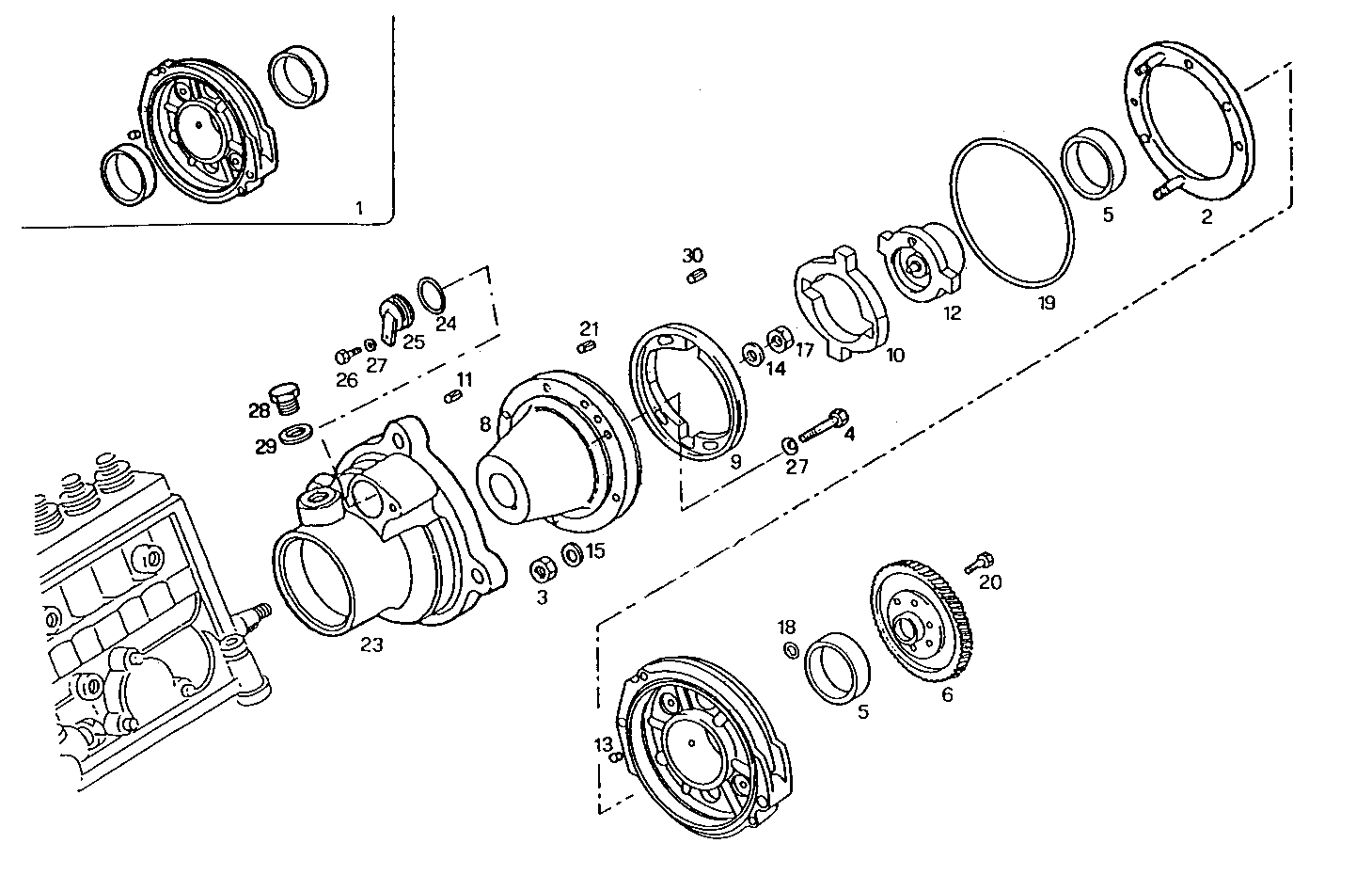

1410.083 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 98424000 SUPPORT ASSY
2 4836618 RING
3 17037931 HEXAGON NUT M8X1,25
4 16605721 HEXAGON BOLT M8X30 MM
5 4686615 BUSH
6 4859822 INJ.PUMP DRIV.GEA
8 98424120 INJECT.PUMP SLEEVE
9 4797214 FLANGE
10 4797215 FLANGE
11 17274710 DOWEL PIN Ø8X16 MM
12 98472241 SHAFT
13 10269150 LOCK PLUG M6X1
14 17096004 WASHER Ø20X37 MM
15 17089574 WASHER Ø8X16 MM
17 16980931 HEXAGON NUT M20X1,5
18 17281481 O-RING Ø10,7 MM SP=2,6 MM
19 17293481 O-RING Ø177,4 MM SP=3,5 MM
20 14348931 SCREW M10X1,25X25
21 17257870 DOWEL PIN Ø6 MM
23 99436321 HOUSING
24 17289281 O-RING Ø34,5 MM SP=3,53 MM
25 4718740 PLUG
26 16605424 SCREW M8X16 MM (8.8)
27 17094914 WASHER 8x16
28 98436549 THREADED PLUG
29 4858610 WASHER Ø18X24 MM SP=1,5 MM
30 4686653 DOWEL PIN
