8281SRM70.12

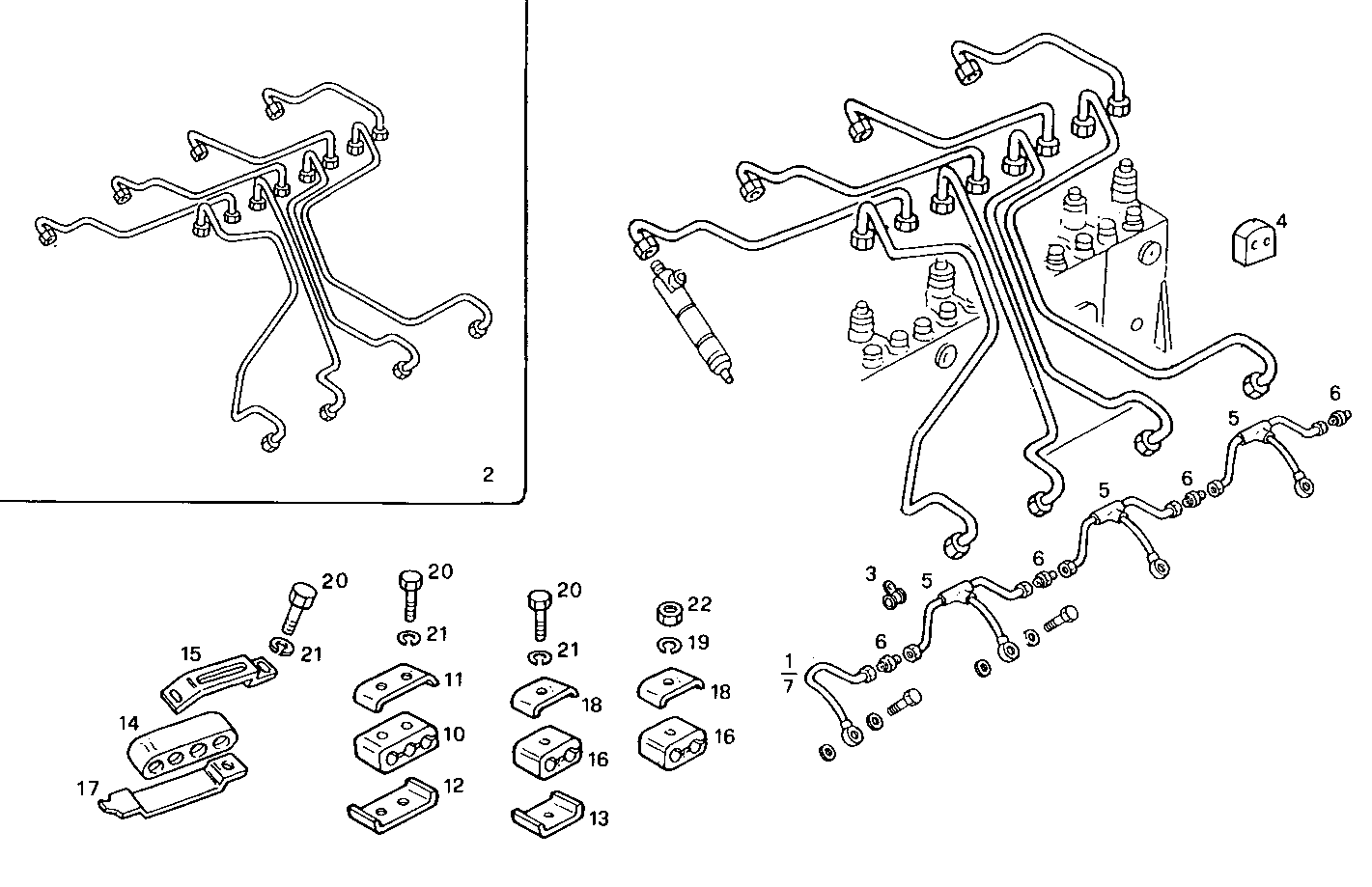

2020.090 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8018953 | FUEL LINE LEFT |
| 2 | 99452019 | INJECTION LINE SET |
| 3 | 17316190 | PIPE CLIP Ø6 MM |
| 4 | 4696015 | RUBBER PAD |
| 5 | 8018954 | INJECTION LINE |
| 6 | 8018967 | PIPE SOCKET |
| 7 | 8018955 | FUEL LINE RIGHT |
| 10 | 4543282 | CHOCK |
| 11 | 4641876 | CLIP |
| 12 | 4641875 | CLIP |
| 13 | 4641874 | RETAINER TOP |
| 14 | 4694275 | DOWEL |
| 15 | 4746525 | CLAMP |
| 16 | 4746524 | SPRING CLAMP |
| 17 | 4746592 | CLAMP |
| 18 | 4703602 | CLAMP |
| 19 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 20 | 16602224 | HEXAGON BOLT M5X20 MM |
| 21 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 22 | 17787270 | HEXAGON NUT M6 |
