8281SRM70.12

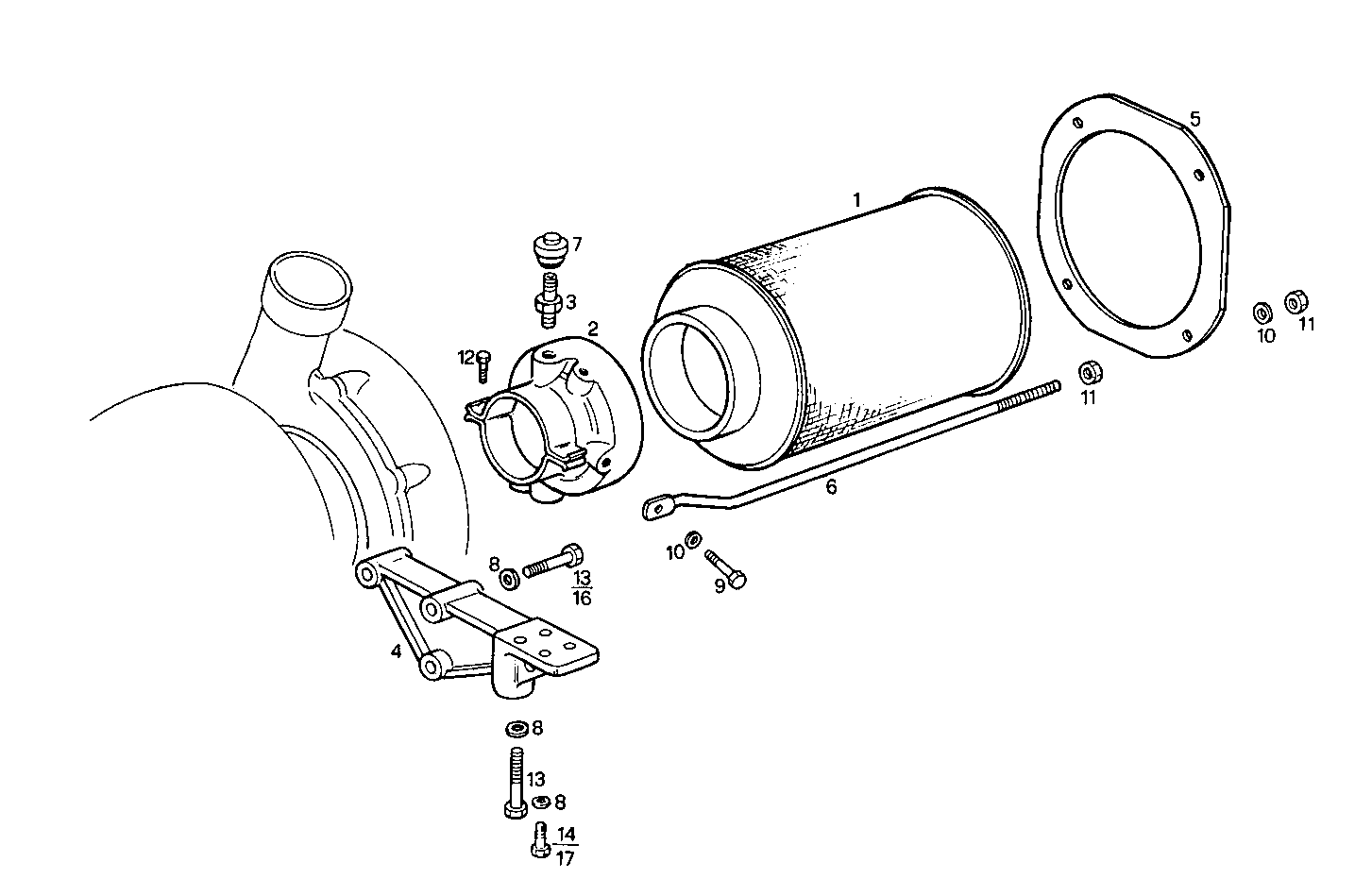

2210.013 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8105181 | AIR CLEANER |
| 2 | 8006238 | AIR MANIFOLD |
| 3 | 8009522 | PIPE SOCKET |
| 4 | 8113863 | SUPPORT |
| 5 | 8113633 | FLANGE |
| 6 | 8113632 | TIE ROD |
| 7 | 8027423 | CHOCKED FILTER INDIC. |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 17156921 | LOCKING NUT M6 |
| 12 | 16689521 | SCREW M6X35 |
| 13 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 14 | 16046021 | HEXAGON BOLT M8X140 MM |
| 16 | 16606024 | SCREW M8X45 MM |
| 17 | 16046221 | HEXAGON BOLT M8X1,25X150 MM |
