8281SRM70.12

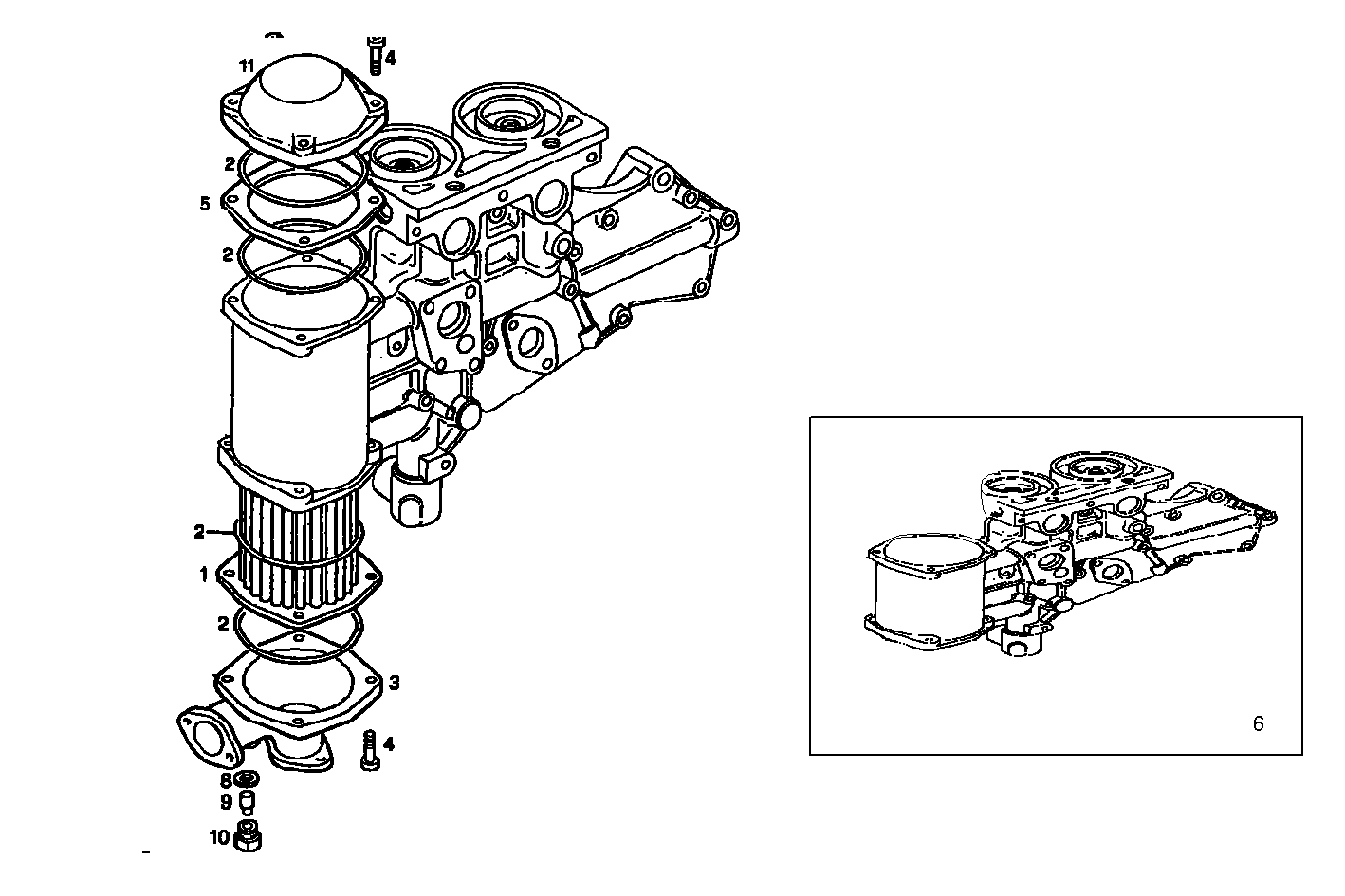

3100.073 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8017399 | TUBE STACK |
| 2 | 99431653 | O-RING Ø106,2 MM SP=3,53 |
| 3 | 8025798 | COVER |
| 4 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
| 5 | 8017862 | SPACING BAR |
| 6 | 8030145 | OIL FILTER SUPPORT |
| 8 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 9 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 10 | 8105276 | PLUG M16 |
| 11 | 8017606 | HEAT EXCHANG.COVER |
