8281SRM70.12

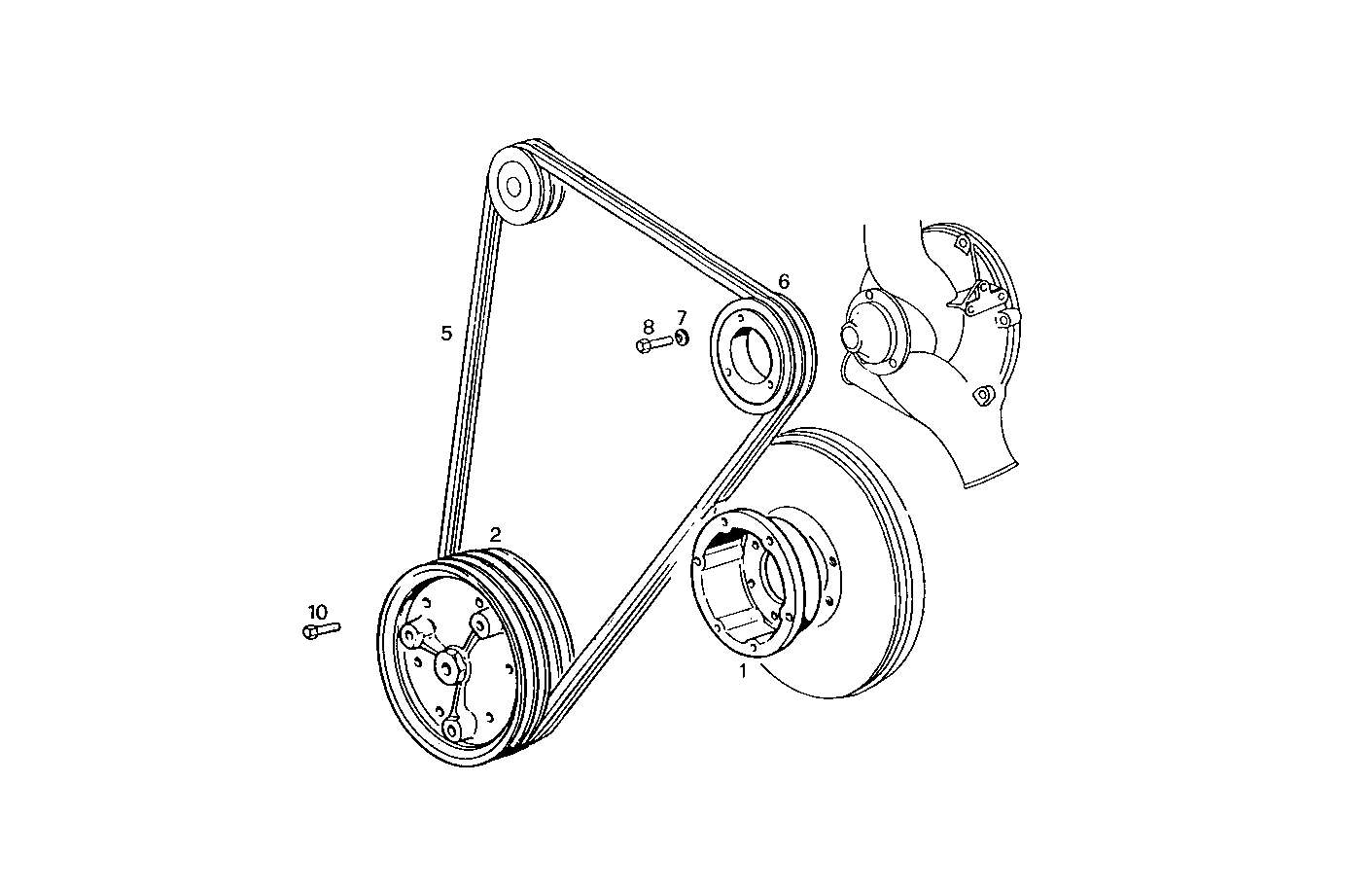

3240.081 PULLEYS AND BELTS
Item | Part number | Description |
---|---|---|
1 | 99445547 | SPACING BAR |
2 | 4701609 | PULLEY |
5 | 8031118 | V-BELT KIT |
6 | 8104376 | PULLEY |
7 | 17089574 | WASHER Ø8X16 MM |
8 | 16605524 | HEXAGON BOLT M8X20 MM |
10 | 14255030 | LOCKING SCREW M14X1,5X60 MM |
