8281SRM70.12

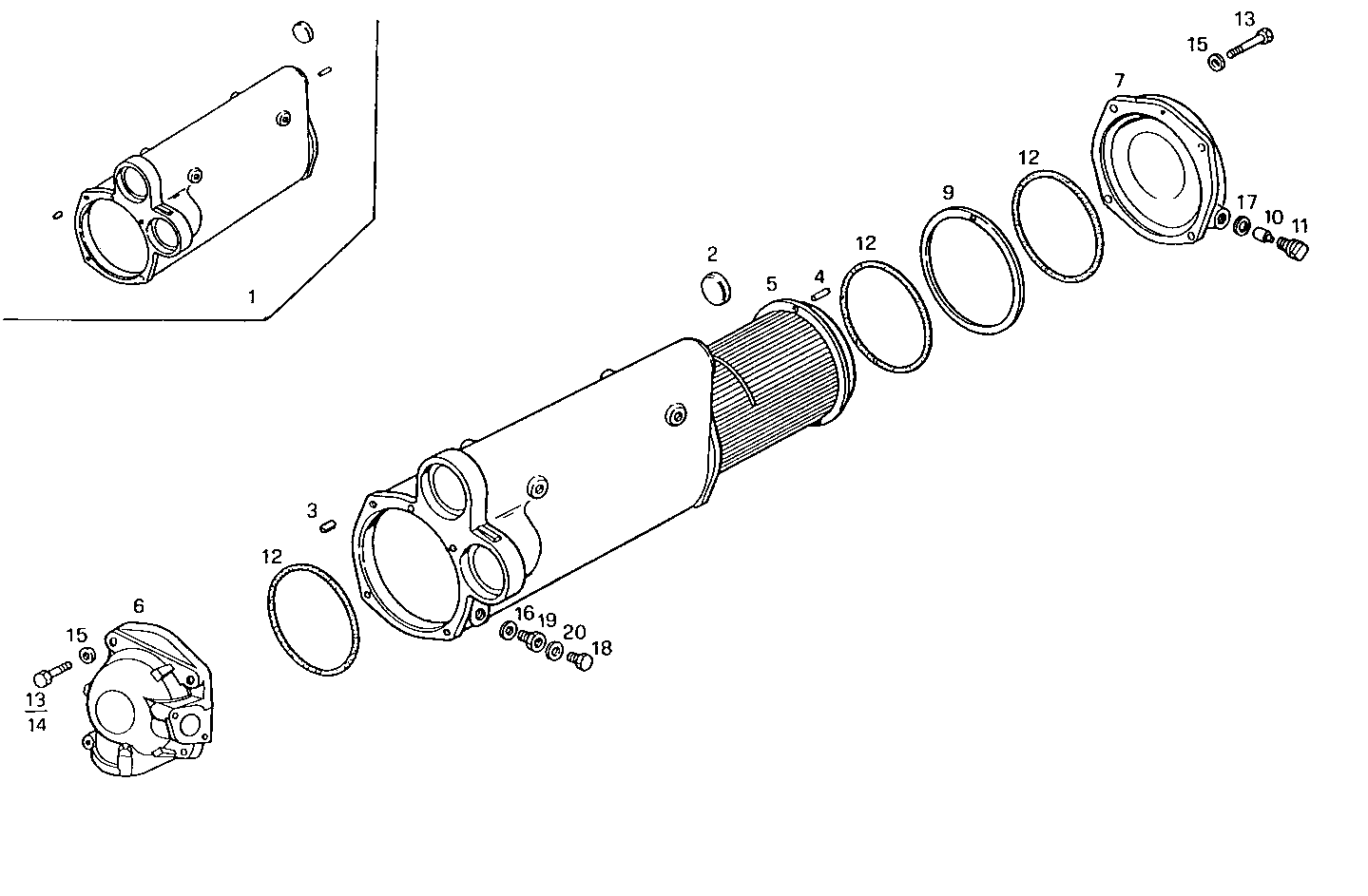

3370.039/02 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8009500 HEAT EXANGER BODY ASSY
2 16991370 LOCK PLUG Ø45 MM
3 17873271 THREADED INSERT M8
4 17236310 PARALLEL PIN
5 8020782 TUBE STACK
6 8024299 HEAT EXCHANG.COVER
7 8009504 HEAT EXCHANG.COVER
9 8009505 SPACING BAR
10 8101772 SACRIFICAL ANODE Ø20 MM
11 8101771 PLUG M28
12 17293181 O-RING Ø158,30X3,53 MM
13 16605924 SCREW M8X40 MM
14 16606924 SCREW M8X110
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 98429282 SEAL GASKET Ø26X33 MM SP=1,5 MM
17 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
18 16992440 THREADED PLUG M16X1,5
19 8011536 PIPE SOCKET
20 4858609 WASHER Ø16X22 MM SP=1,5 MM
