8281SRM70.12

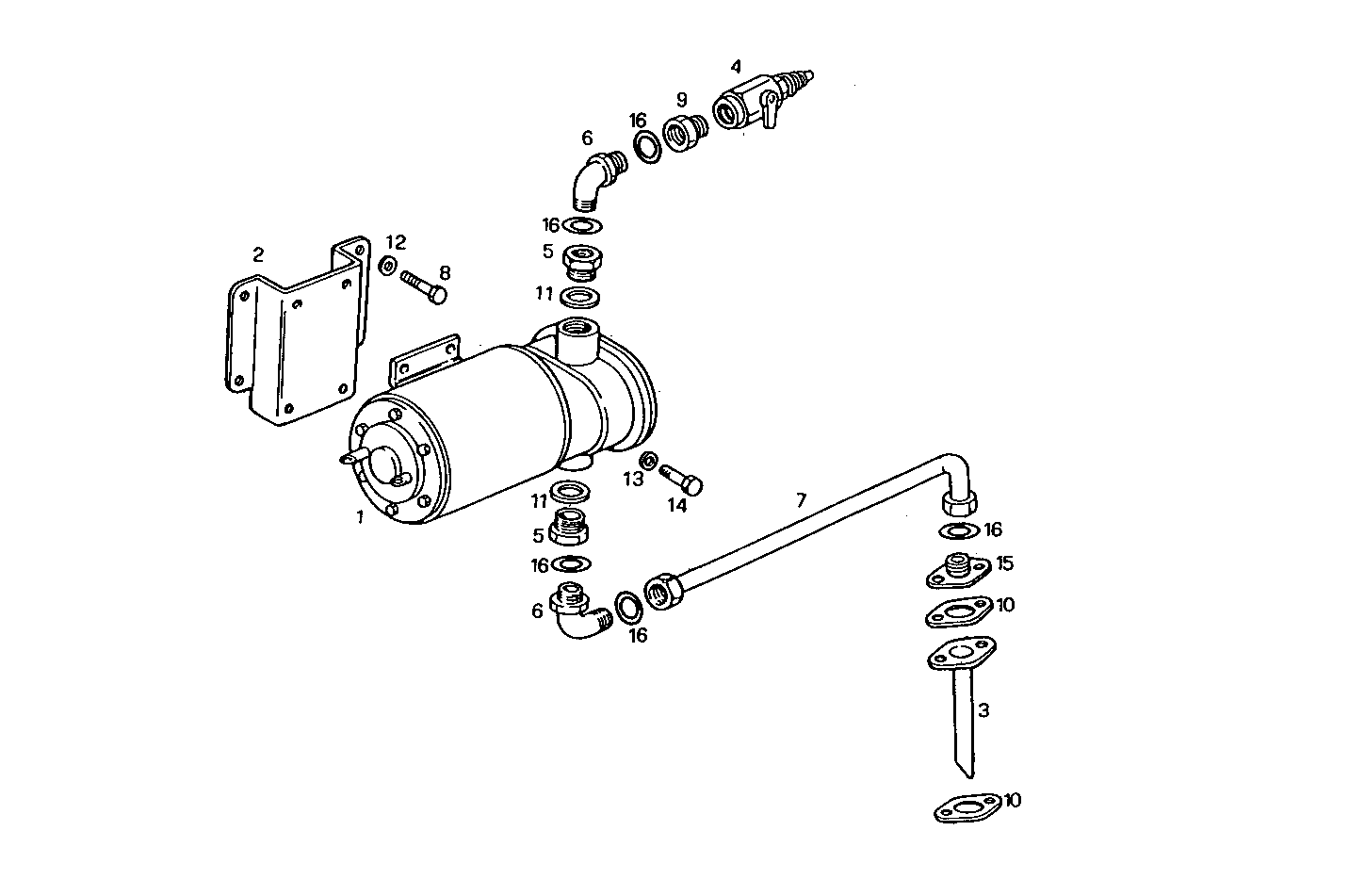

5510.036 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8011001 | OIL DRAIN ELECTRIC PUMP |
| 2 | 8018171 | SUPPORT |
| 3 | 8105462 | OIL LINE |
| 4 | 8113932 | DRAIN COCK |
| 5 | 8011422 | PIPE SOCKET Ø3/8''/M22 MM |
| 6 | 16512111 | PIPE SOCKET |
| 7 | 8021755 | OIL LINE |
| 8 | 15970521 | HEXAGON BOLT M10X20 MM |
| 9 | 8016102 | PIPE SOCKET |
| 10 | 4863361 | GASKET |
| 11 | 11270460 | GASKET Ø17X21X1,5 MM |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17088474 | WASHER Ø6X12 MM |
| 14 | 16603524 | SCREW M6X12 MM (8.8) |
| 15 | 8026494 | FLANGE |
| 16 | 8024649 | O-RING Ø12 MM |
