8281SRM70.12

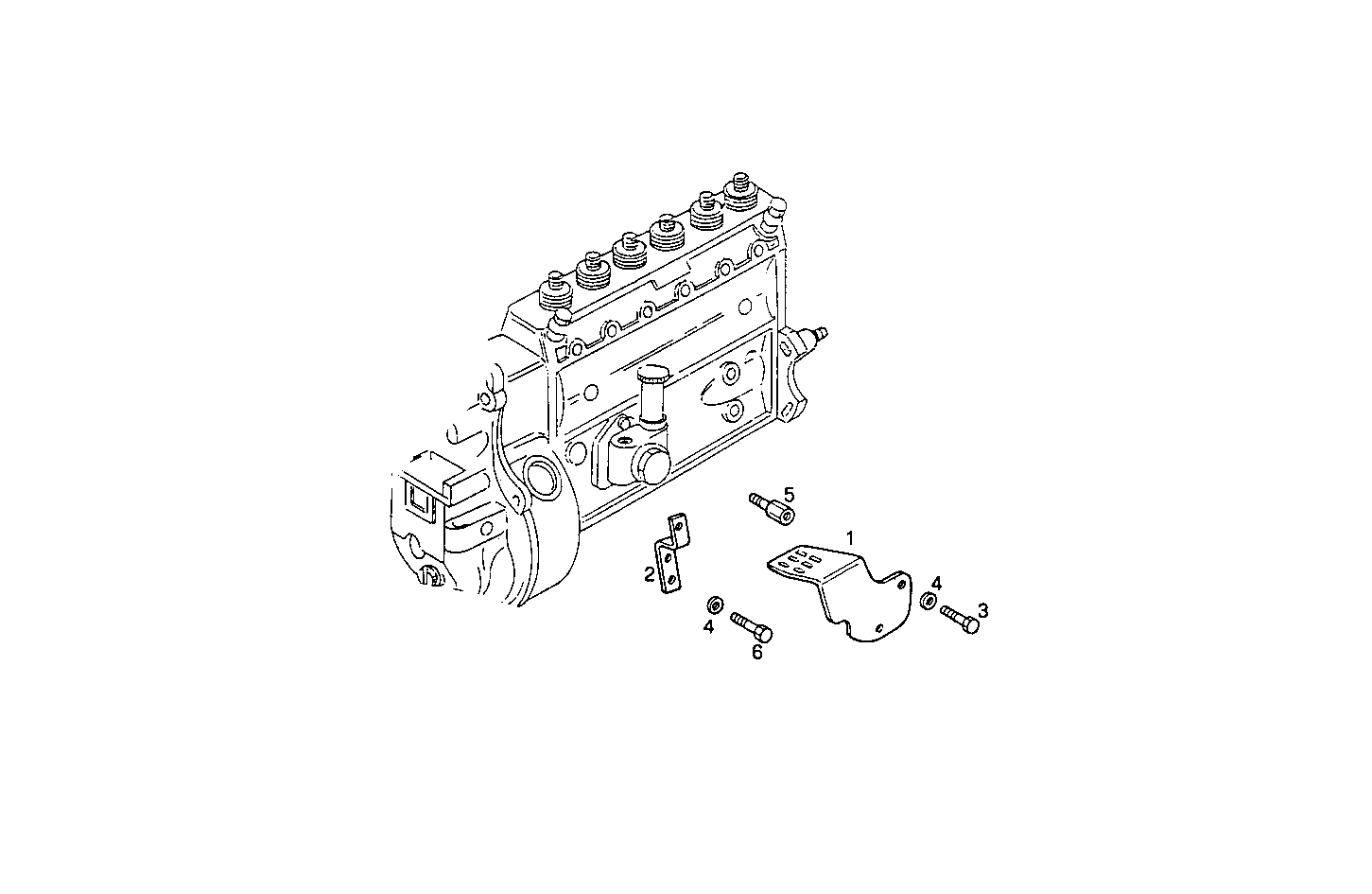

5600.013/02 HAND ACCELERATOR [2D-7-01] [2D-7-01]
| Item | Part number | Description |
|---|---|---|
| 1 | 8032499 | RETAINER |
| 2 | 8032500 | RETAINER |
| 3 | 10902221 | HEXAGON BOLT M6X16 MM |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 8113637 | SPACING BAR |
| 6 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
