8281SRM70.12

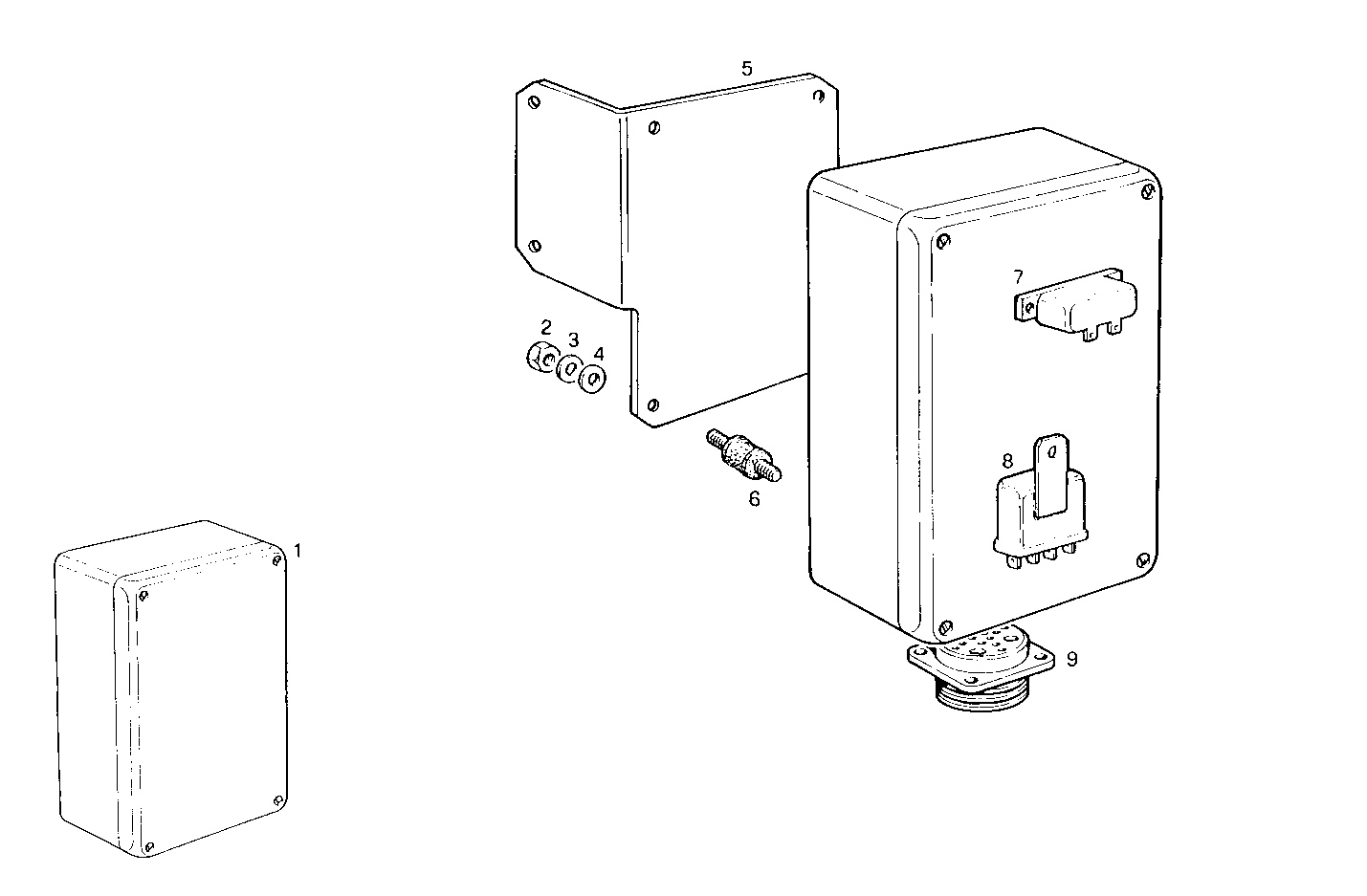

5650.037/02 ELECTRIC STOP ENGINE
Item | Part number | Description |
---|---|---|
1 | 8020687 | ENGINE STOP ASSY [from 05-95] |
2 | 17037821 | HEXAGON NUT M6X1 |
3 | 17710074 | WASHER Ø6X11 MM |
4 | 17094714 | WASHER Ø6,4X12 MM |
5 | 8025276 | PLATE |
6 | 4910949 | RUBBER LUG |
7 | 8109519 | RELAY STOP [up to 05-95] |
8 | 8108575 | RELAY STARTER [up to 12-90] |
9 | 8113170 | CONNECTION ASSY |
