8281SRM70.12

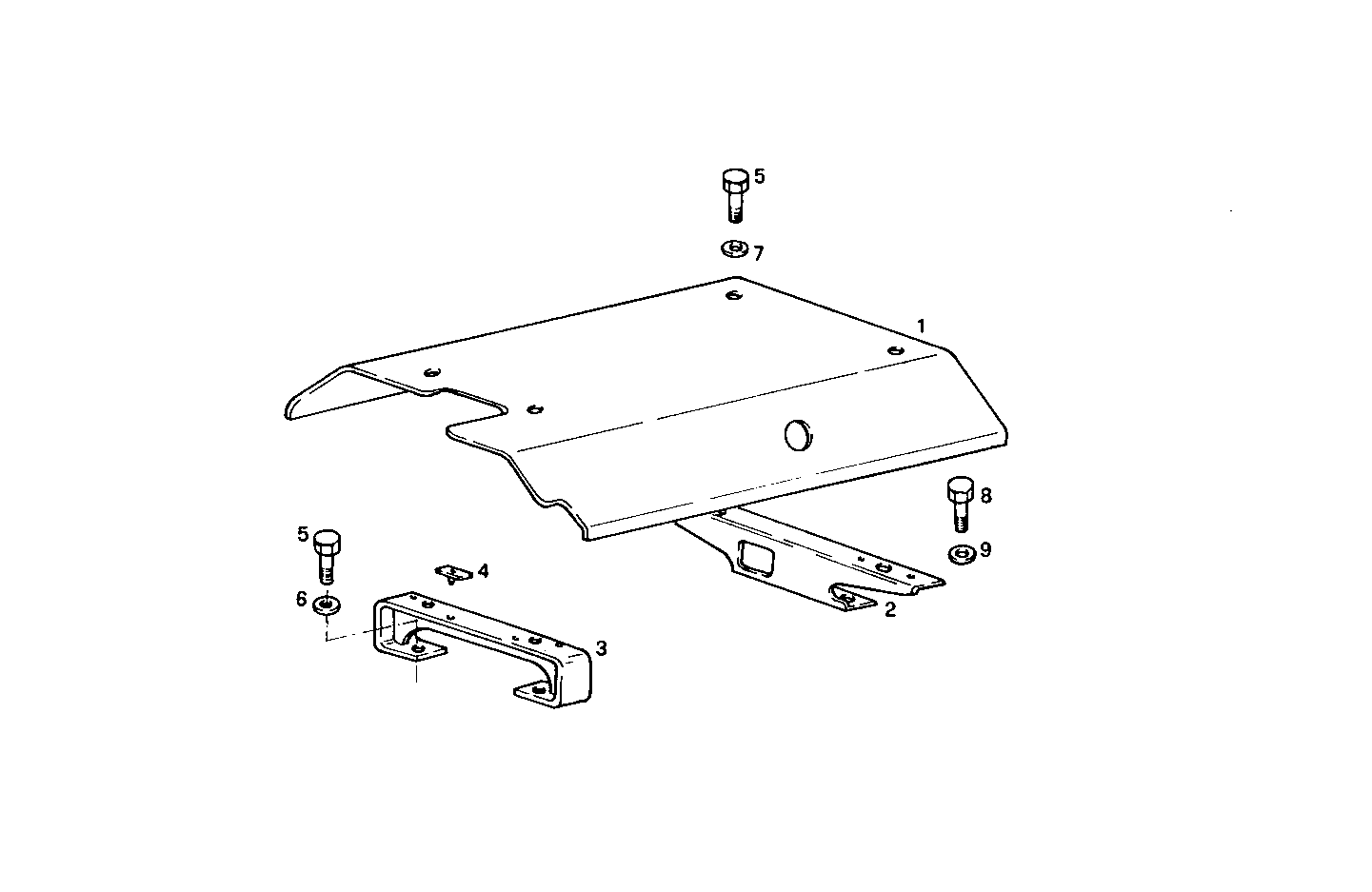

5770.036 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8026169 | PROTECTION |
| 2 | 8026185 | SUPPORT |
| 3 | 8026181 | SUPPORT |
| 4 | 1366290 | RUBBER LUG |
| 5 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 6 | 17091074 | WASHER Ø12X24X2,8 MM |
| 7 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 8 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 9 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
