8281SRM70.30

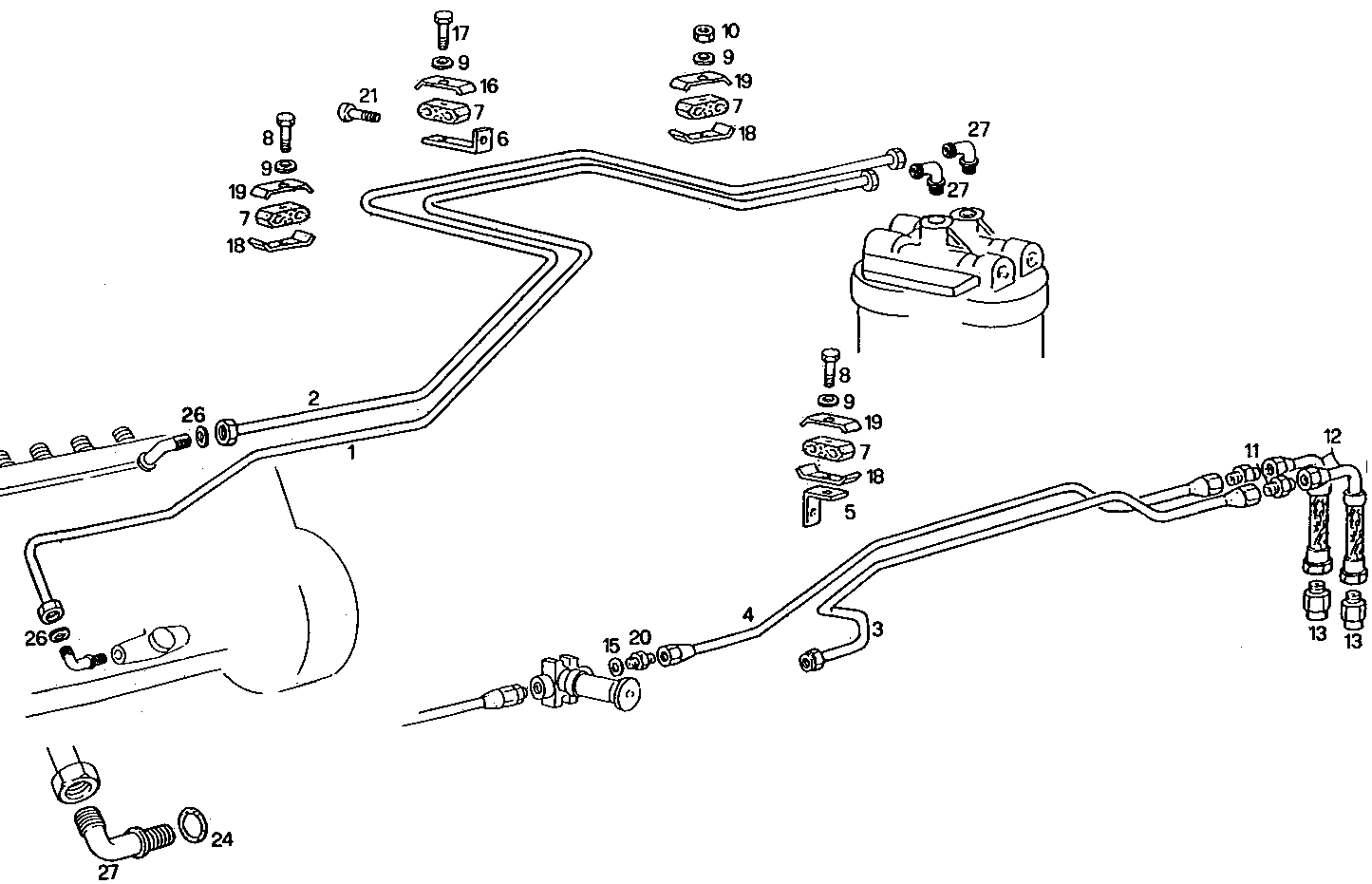

2030.130/02 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8006226 FUEL LINE
2 8006225 INJECTION LINE
3 8112077 INJECTION LINE
4 8112070 FUEL LINE
5 8102227 RETAINER
6 4641551 CLAMP
7 4871771 RUBBER LUG
8 10902621 SCREW M6X25 MM
9 17088971 SPRING WASHER Ø6X18 MM
10 15896211 HEXAGON NUT M6
11 8112283 PIPE SOCKET
12 8112285 FUEL LINE
13 8112284 PIPE SOCKET
14 4864083 SCREW CONNECTOR M14X1,5X30 MM
15 98474308 SEAL GASKET Ø14X22 MM
16 8112079 RETAINER
17 10902821 HEXAGON BOLT M6X30 MM
18 4644289 CLIP
19 4644288 CLIP
20 16500211 THREADED UNION
21 14306521 CYLIND-HEAD SCREW M8X30 MM
24 17281581 O-RING Ø12,37X2,62 MM
26 8026646 GASKET
27 8025927 ELBOW COUPLING
