8281SRM70.40

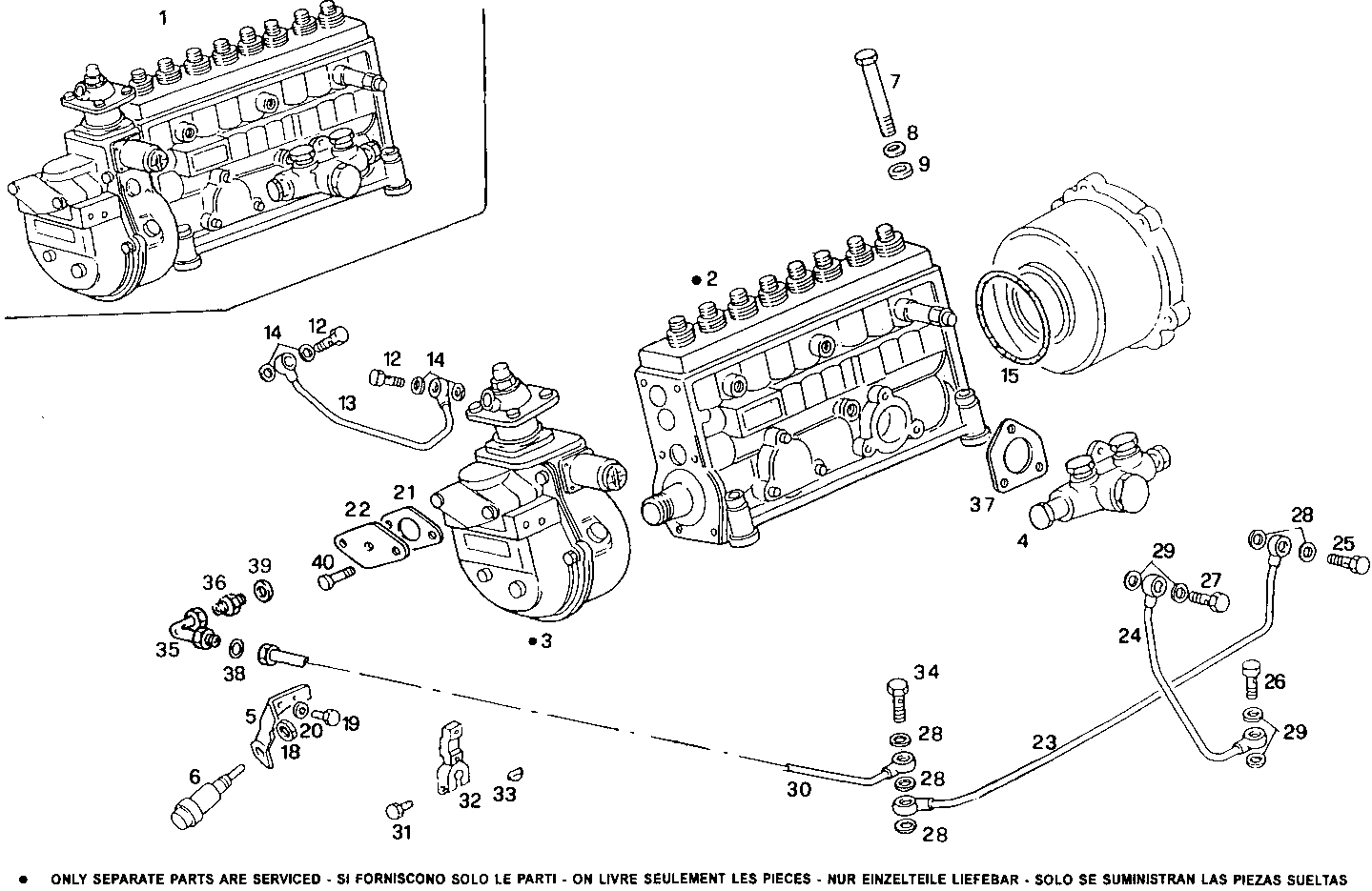

1400.255 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8011115 INLINE INJECT.PUMP ASSY BOSCH
4 8010209 FUEL PUMP
5 771369 RETAINER
6 4746917 THRUST ROD
7 15971530 SCREW
8 17090174 SPRING WASHER Ø10X20 MM
9 756671 WASHER
12 4864082 BANJO BOLT M12X1,5X25 MM
13 8014554 AIR PIPE/DUCT
14 98474306 WASHER Ø12X20 MM SP=1,9 MM
15 17291081 O-RING Ø88,49X3,53 MM
18 16979431 NUT M8
19 10902121 HEXAGON BOLT M6X14 MM
20 17494734 WASHER Ø6X11,8X1,6 MM
21 8111233 GASKET
22 8018382 COVER
23 98438719 OIL LINE
24 8015443 OIL LINE
25 4864083 SCREW CONNECTOR M14X1,5X30 MM
26 4864080 SCREW CONNECTOR M10X1,25
27 4864079 SCREW CONNECTOR M10X1
28 98474308 SEAL GASKET Ø14X22 MM
29 98474305 WASHER Ø10X17 MM SP=2,3
30 8018383 OIL LINE
31 16603824 SCREW M6X25
32 4679073 LEVER
33 17220820 KEY 3X5 MM
34 61608319 SCREW CONNECTOR
35 16504011 PIPE SOCKET
36 16500214 THREADED UNION M14X1,5/M16X1,5
37 8111232 GASKET
38 8024646 O-RING Ø6 MM
39 4858608 SEAL GASKET dia.14x19,5x1,5
40 16689124 CYLIND-HEAD SCREW M6X16 MM
